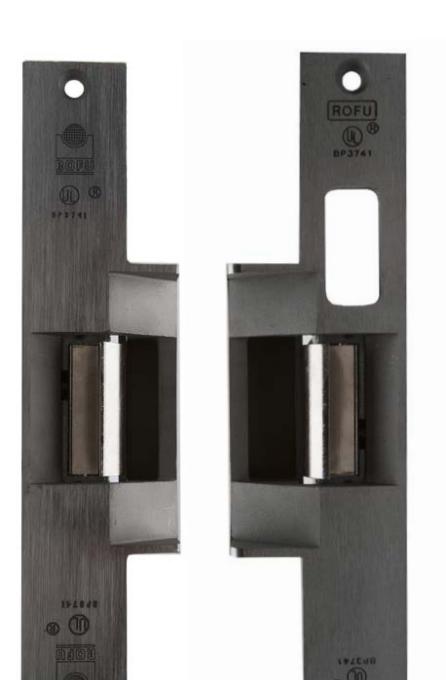

1460/3460

STANDARD FEATURES

• Model 1460 Fail-secure Model 3460 - Fail-safe
• Faceplate size 1 3/8" x 9"
• Stainless steel, corrosion-resistant faceplate, suitable for hollow metal, aluminum or wood frames
• Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance - 3/4" Keeper opening starts at center line
• Fully tamper proof horizontal adjustment
• 1 1/2" jamb modification
• Reversible non-handed (without deadbolt)
• Limited warranty 36 months

OPTIONAL FEATURES

Cutout for deadbold (Specify 1460B-LH or 1460B-RH with required voltage)

SPECIFICATION

TAMPER STRENGTH	1700 LB (765 KG)
VOLTAGE	1460-01 1460-05 1460-08 3460-06 3460-09	8-16 VAC/3-6 VDC 12 VAC/VDC 24 VAC/VDC 12 VDC 24 VDC
FINISH	US32D, US3 (plated) or US10B

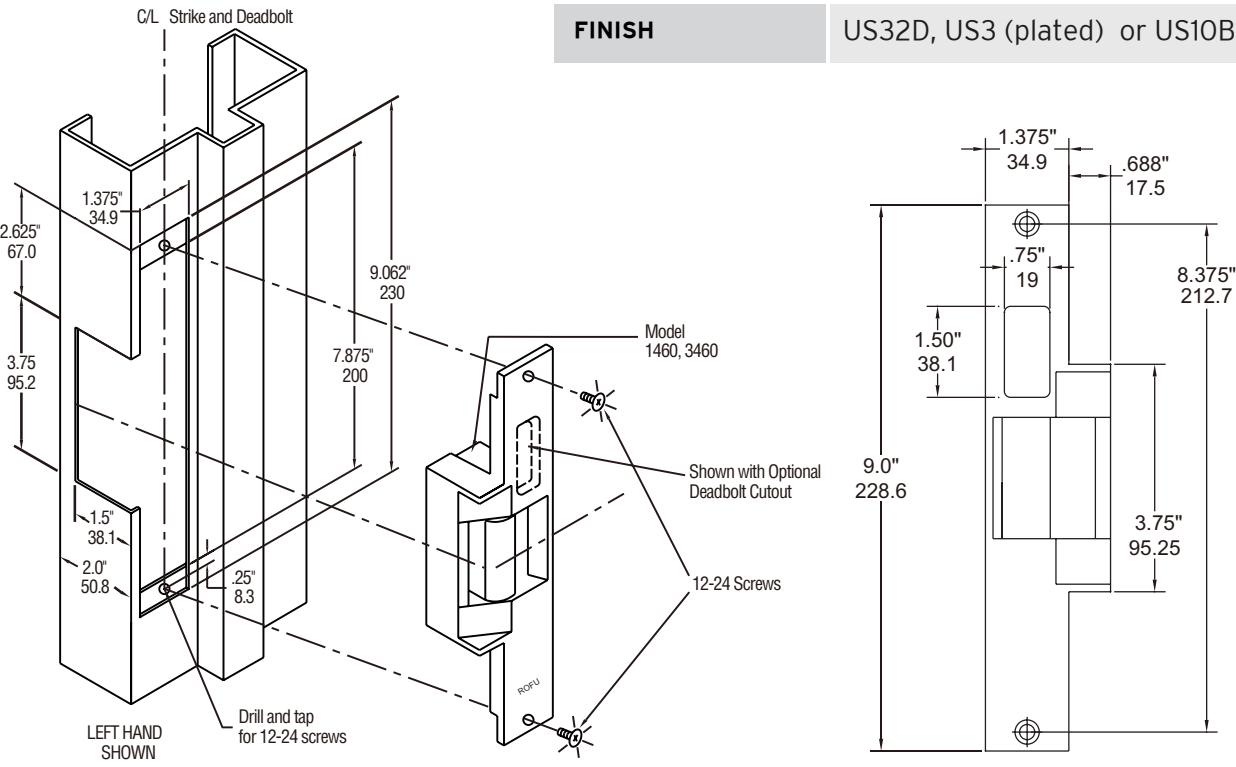

SPECIFICATION DETAILS
