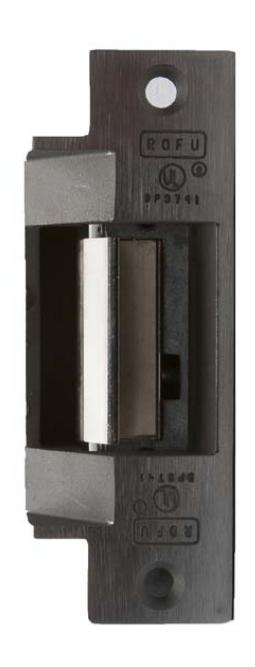

1450/3450

STANDARD FEATURES

  • Model 1450 Fail-secure Model 3450 - Fail-safe
  • ANSI/BHMA A 156.5 ( 1 1/4" x 4 7/8"), for use with cylindrical and mortise locksets
  • Stainless steel, corrosion-resistant faceplate, suitable for hollow metal, aluminum or wood frames, fits cutout specification A 115.1 (with slight jamb modification)
  • Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance - 3/4" Keeper opening starts at center line
  • Fully tamper proof horizontal adjustment
  • Reversible non-handed
  • Limited warranty 36 months

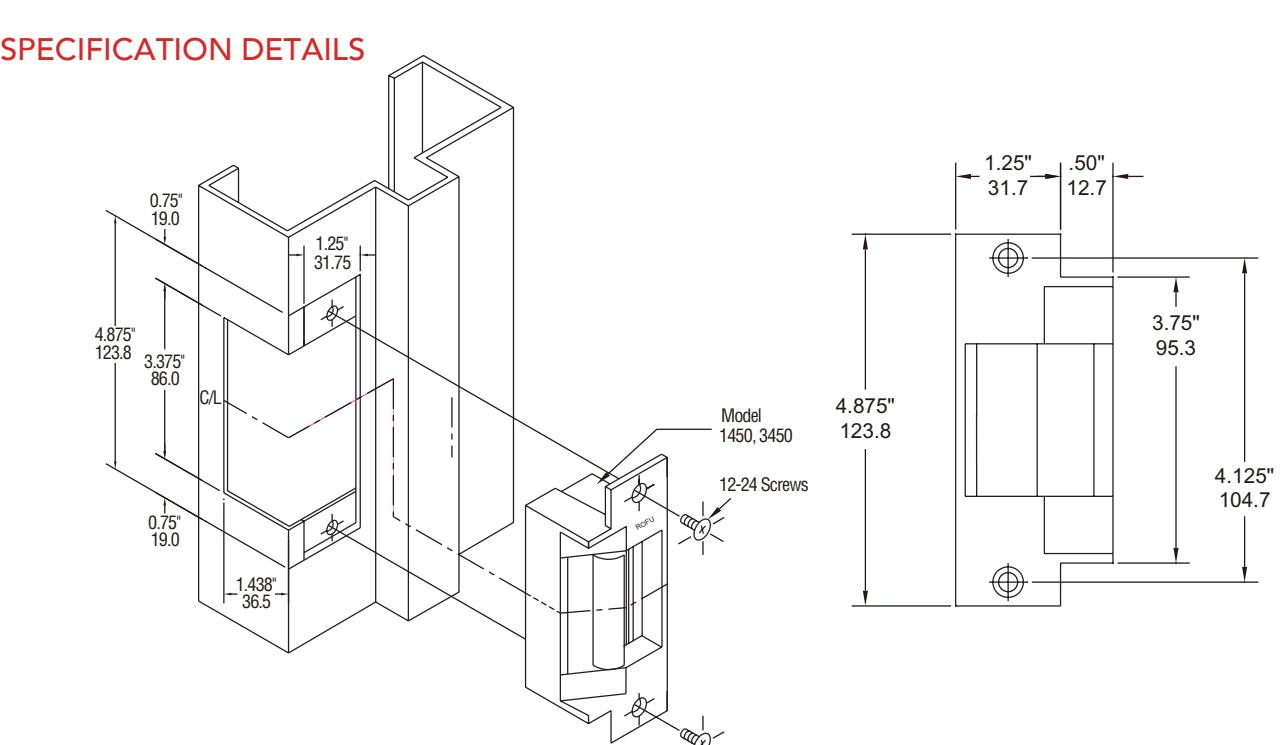

SPECIFICATION

TAMPER STRENGTH 1700 LB (765 KG)
VOLTAGE 1450-01
1450-05
1450-08
3450-06
3450-09 		8-16 VAC/3-6 VDC
12V AC/VDC
24 VAC/VDC
12 VDC
24 VDC
FINISH US32D, US3 (plated) or US10B
