ROFU 1430 3430 Series Strikes Data Sheet
Open the original PDF document
View PDF1430/3430
STANDARD FEATURES
- Model 1430 Fail-secure Model 3430 - Fail-safe
- ANSI/BHMA A 156.5 ( 1 1/4" x 4 7/8"), for use with cylindrical and mortise locksets
- Stainless steel, corrosion-resistant faceplate, suitable for hollow metal, aluminum or wood frames, fits cutout specification A 115.1 (with slight jamb modification)
- Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance - 3/4" Keeper opening - 3/8" below center line
- Handed please specify RH or LH
- Limited warranty 36 months
| TAMPER STRENGTH | 1700 LB (765 KG) | |
|---|---|---|
| VOLTAGE |
1430-01 RH
1430-01 LH 1430-05 RH 1430-05 LH 1430-08 RH 1430-08 LH 3430-06 RH 3430-06 LH 3430-09 RH 3430-09 LH |
8-16 VAC/3-6 VDC
8-16 VAC/3-6 VDC 12 VAC/VDC 12 VAC/VDC 24 VAC/VDC 24 VAC/VDC 12 VDC 12 VDC 24 VDC 24 VDC |
| FINISH | US32D, US3 (plated) or US10B | |

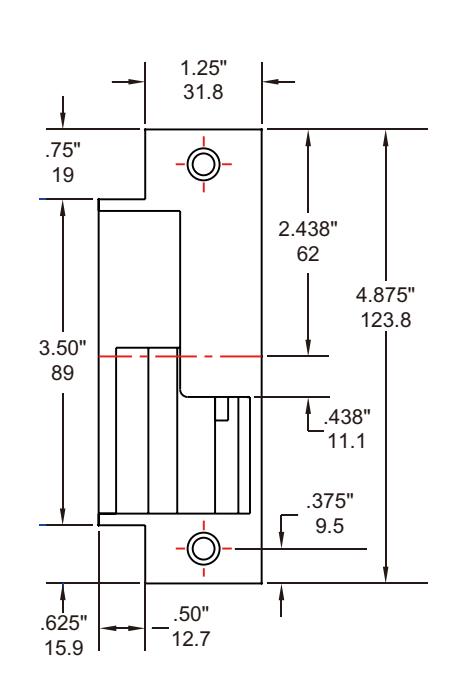

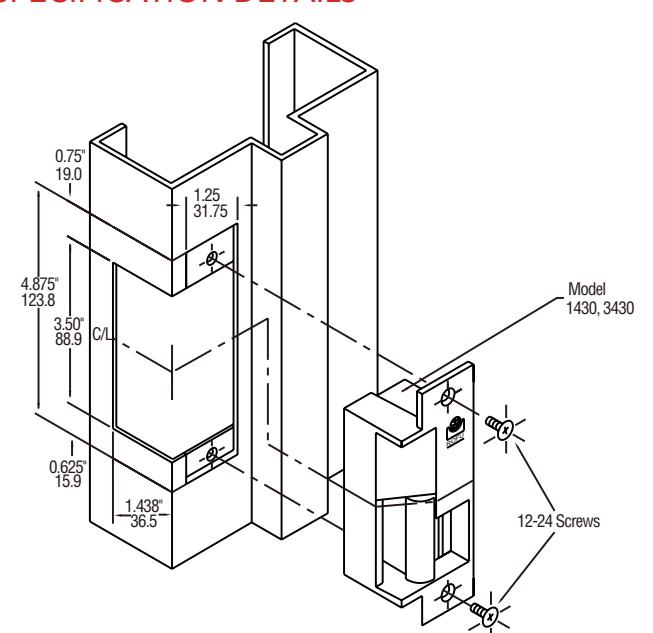

SPECIFICATION DETAILS
