ROFU 1401 3401 Series Strikes Data Sheet

Open the original PDF document

View PDF

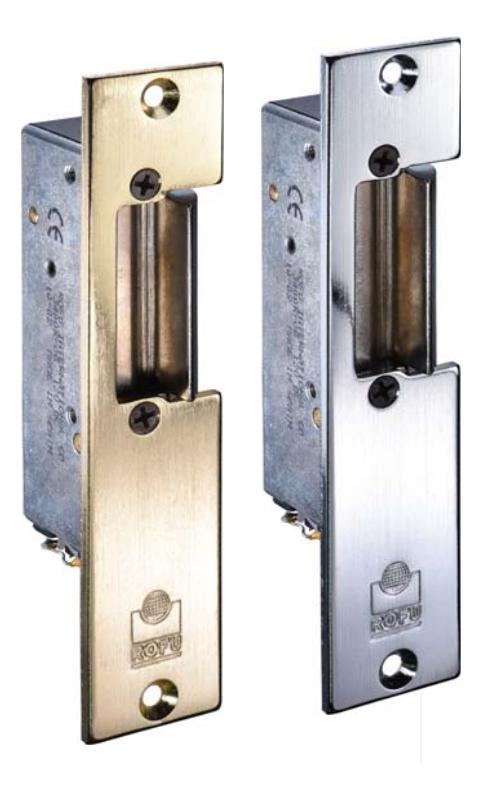

1401/3401

STANDARD FEATURES

  • Model 1401 Fail-secure Model 3401 Fail-safe
  • Faceplate size 11/4" x 5 7/8"
  • Steel faceplate, suitable for wood frames
  • Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance 3/4"
  • Limited warranty 36 months

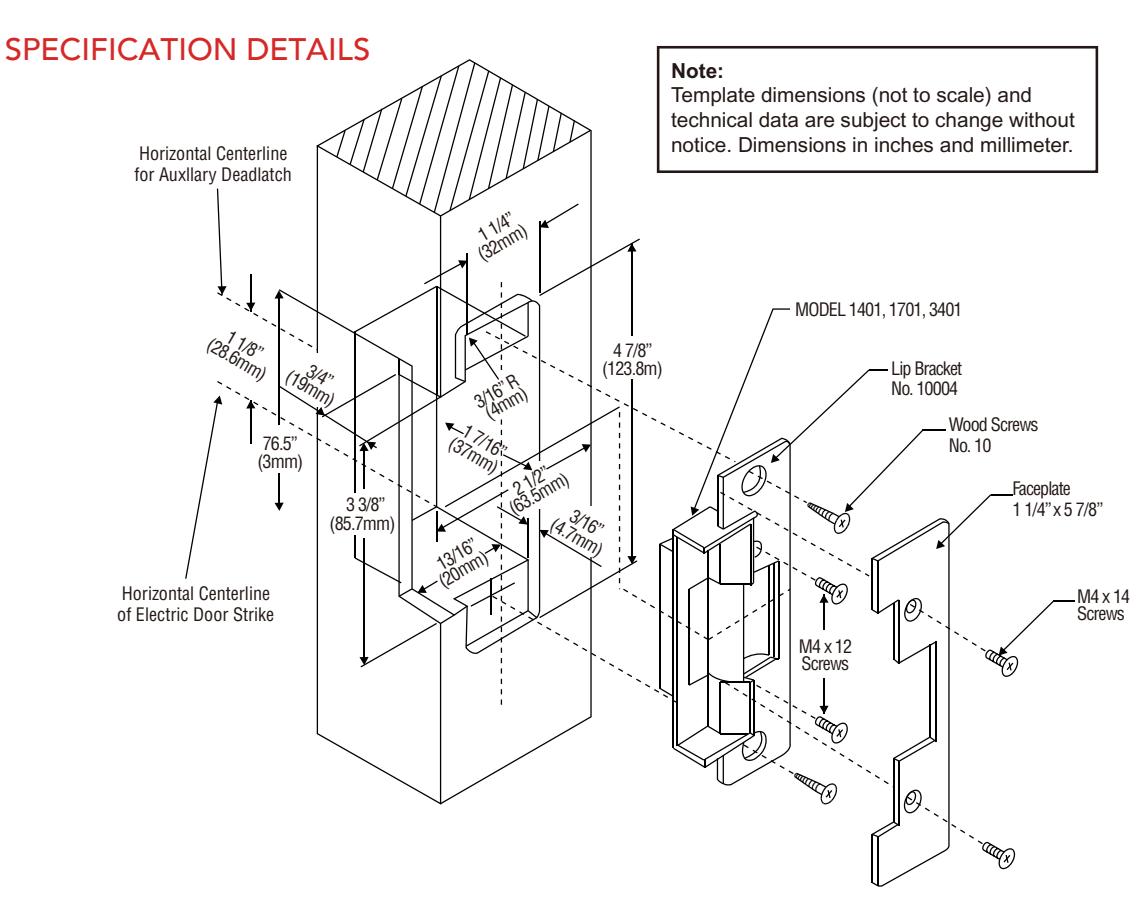

SPECIFICATION

TAMPER STRENGTH 1400 LB (635 KG)
VOLTAGE 1401-01
1401-05
1401-08
3401-06
3401-09 		8-16 VAC/3-6 VDC
12 VAC/VDC
24 VAC/VDC
12 VDC
24 VDC
FINISH US26D or US4
