ROFU 1106 Installation Instructions

ROFU

Features

The ROFU 1106 provides a secure, economical and durable solution for gates. The NEW water drainage function makes it suitable for use on gates or semi-outdoor applications. A NEW one piece cast zinc alloy construction.

Compatible Locks

Designed for Cylindrical Locksets

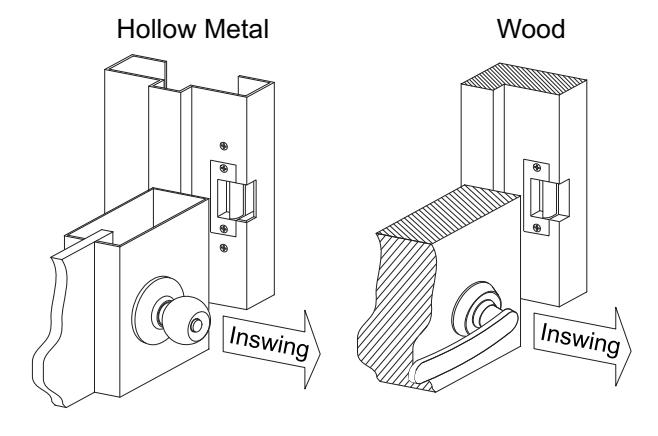

Frame Applications

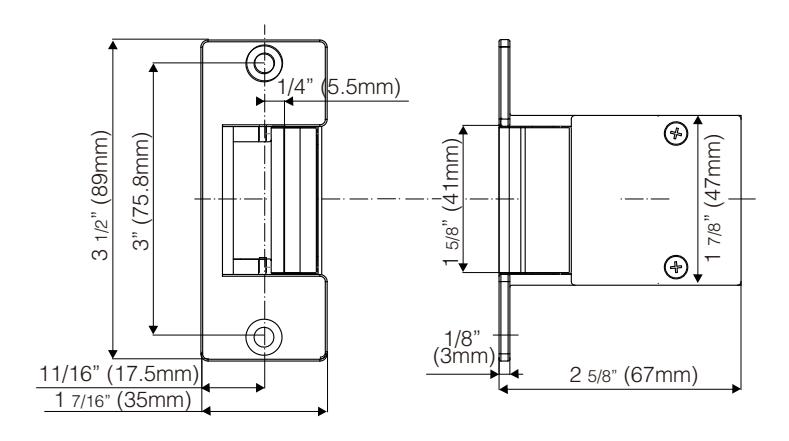

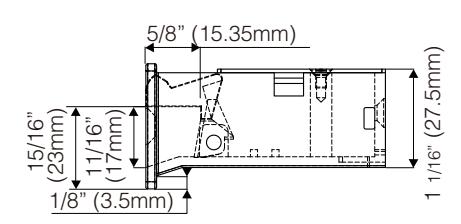

Specifications

■ Voltages: 1106-01= 8 ~ 16 VAC Intermittent Duty, 1106-02= 12/24 VDC/AC Intermittent Duty (Intermittent use: Not to exceed 20 seconds)

■ Operating Temperature: -10°~49°C (14°~120°F)

■ Humidity: 0~85% non-condensing

Latch Throw: 9/16" (15mm) Keeper Width: 1 5/8" (41mm) Cycle Test: 250,000+ cycles Holding Force: 1,000 lbs (454Kg)

Finish: US28 or US4

Fail-secureWeight: 343g

Electric Strike Installation

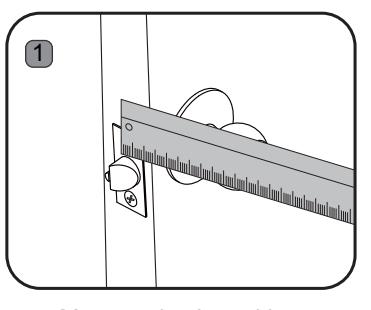

Measure latch position

Mark latch position line

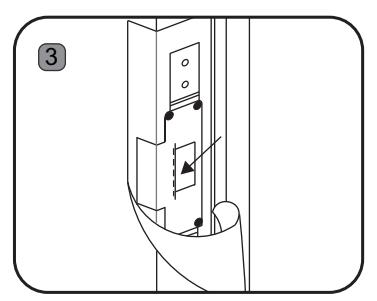

Attach sticker template to the marked center line

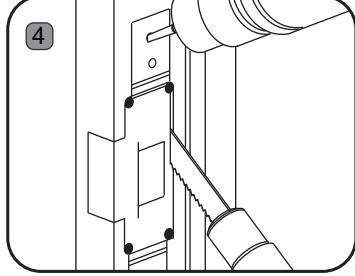

Drill and cut the frame according to the template

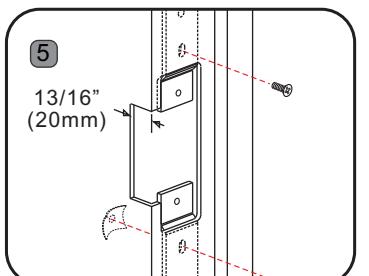

Attach mounting tabs if needed

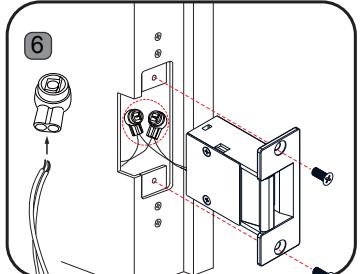

Connect the wires using the crimp connectors, then test the strike, ensure you give it correct voltage

Installing the Crimp Connectors:

Crimp connectors are provided to make wiring connections easier and

reliable. To install the connectors:

• 1. Insert the wires into the connector.
• 2. Use a crimping tool or pliers to evenly press down on the head of the connector.
