RM850 DOOR STOP Ø1.437 -1/2-13 x 1/2" THREADED INSERT 5/16-18 INTERNAL THREAD SIZE S.S. 1.438 0.938 Ø1.250 5/16-18 x 1-1/2" MODIFIED PHILLIPS Ø0.25 FLAT HEAD MACHINE 0.406 80 DUROMETER SCREW S.S. BUMPER 1.00 1.500 0.625 0.969 FLOOR (1) 5/8" Ø CALK-IN THREADED ANCHOR FOR CONC. BLOCK AND BRICK 5/16-18 INTERNAL THREAD 0.88 1.00 SIZE SECTION A-A CONCRETE FLOOR WOOD FLOOR APPLICATION

INSTALLATION IN WOOD FLOOR

• 1. Determine location of floor stop in floor.
• 2. Drill 5/16" wide x 1" deep hole for stop screw
• In same location, drill 13/32" wide x 1/2" deep hole in floor for threaded insert.

APPLICATION

• Once drilled, clean out any dust or debris and drive threaded insert into drilled hole until flush with floor.
• 5. Insert the floor stop into the anchor until tight.

INSTALLATION IN CONCRETE, BLOCK AND BRICK

• 1. Determine location of floor stop in floor.
• 2. Drill 5/8" wide x 1" deep hole in floor.
• 3. Once drilled, clean out any dust or debris and insert provided Calk-In anchor, cone end first.

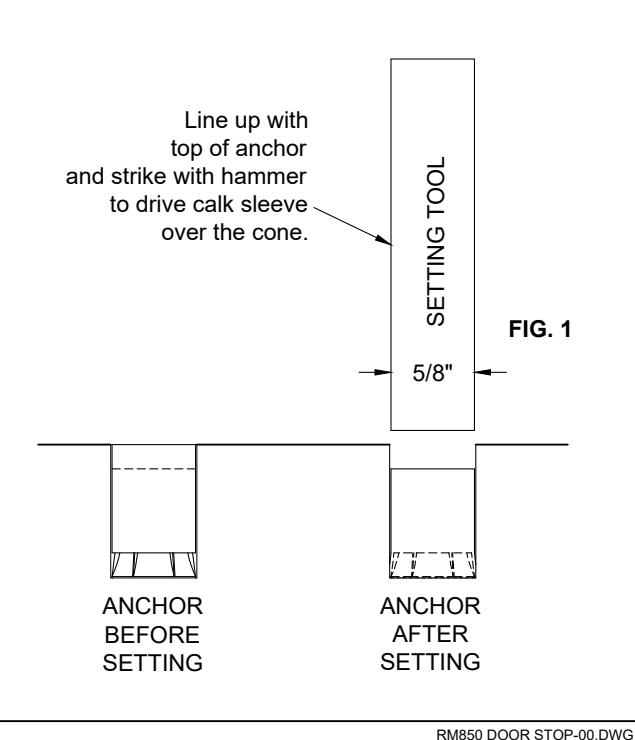

• Using a setting tool, the same diameter of the anchor (5/8"), drive the lead sleeve over the cone, FIG. 1. This will cause the sleeve to expand and hold the anchor in place.
• Insert the floor stop into the anchor until tight.

NOTE NOT FOR USE IN OVERHEAD APPLICATIONS

NOTE:

1. ALL DIMENSIONS ARE IN INCHES.

2. DO NOT SCALE DRAWING.

3. SCREWS:

• 5/16-18 x 1-1/2" MACHINE SCREW
• 1/2-13 x 1/2" THREADED INSERT
• 5/8"Ø x 1" CALK-IN ANCHOR FOR CONCRETE.
• 4. MATERIAL:
• STAINLESS STEEL
• 80 DUROMETER BUMPER (AVAILABLE IN STANDARD GREY. BLACK-OPTIONAL)

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

RM850 DOOR STOP

© 2022 ABH Mfg., Inc. printed in USA

PAGE 1 OF 1 ISSUED 04-28-22
