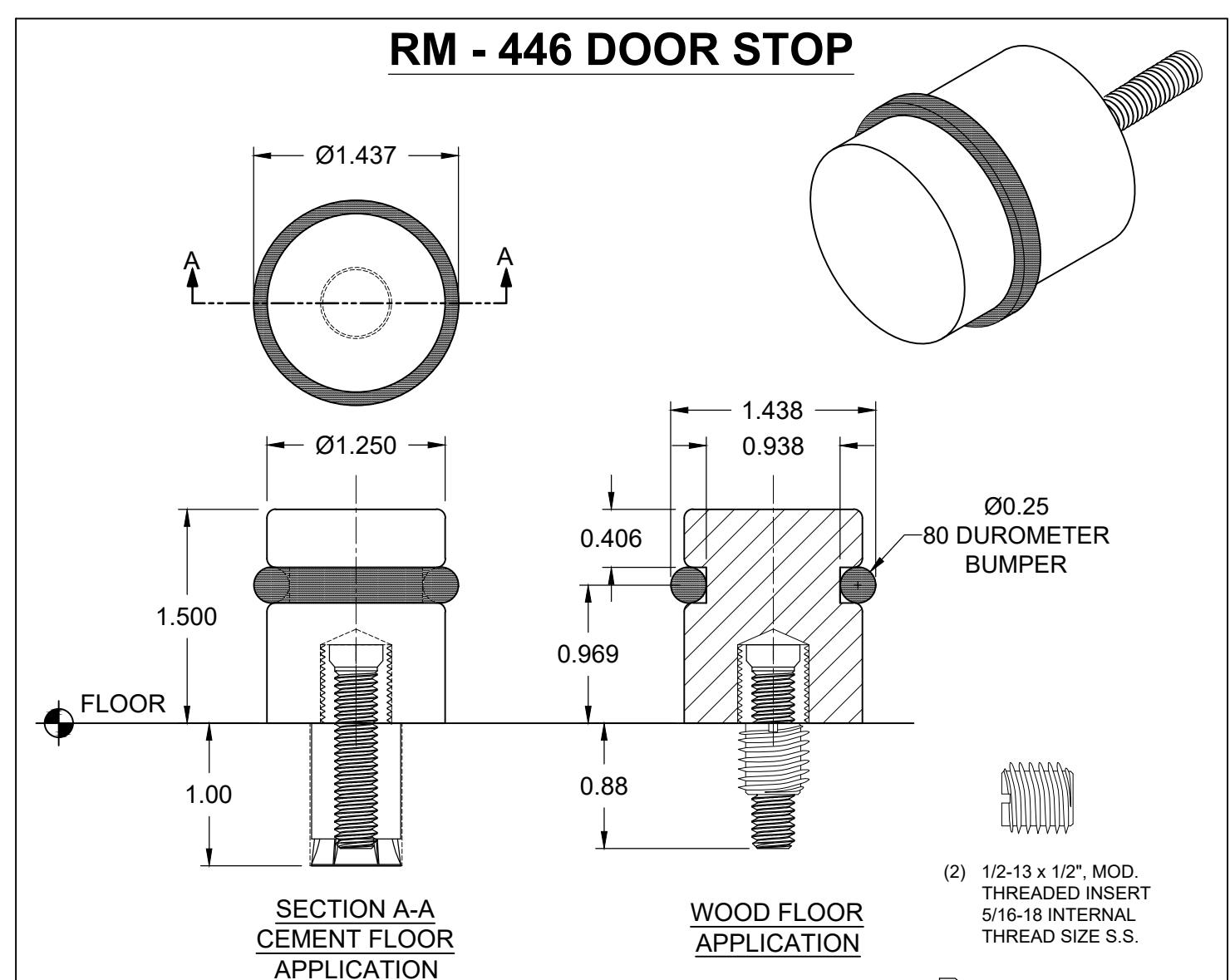

RM446 Floor Door Stop – Template

Open the original PDF document

NOTE:

1. ALL DIMENSIONS ARE IN INCHES.
2. DO NOT SCALE DRAWING.
3. SCREWS:
5/16-18 x 1-1/2" MACHINE SCREW
1/2-13 x 1/2" THREADED INSERT
5/8"Ø x 1" LAG SHIELD FOR CONCRETE.
4. MATERIAL:
STAINLESS STEEL
80 DUROMETER BUMPER (AVAILABLE IN STANDARD GREY. BLACK-OPTIONAL)

(1) 5/16-18 x 1-1/2", MODIFIED PHILLIPS FLAT HEAD MACHINE SCREW S.S.

(1) 5/8" Ø THREADED ANCHOR FOR CONC. BLOCK AND BRICK 5/16-18 INTERNAL THREAD SIZE

RM 446 DOOR STOP-03.DWG

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

RM 446 DOOR STOP

PAGE 1 OF 1 REVISED 02-18-21
