INSTALLATION INSTRUCTIONS for

RDL Lever Lock with Simplí™ Roseless Trim

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com Patent pending and/or patent www.assaabloydss.com/patents

Installing an RDL Lock

STEP 1

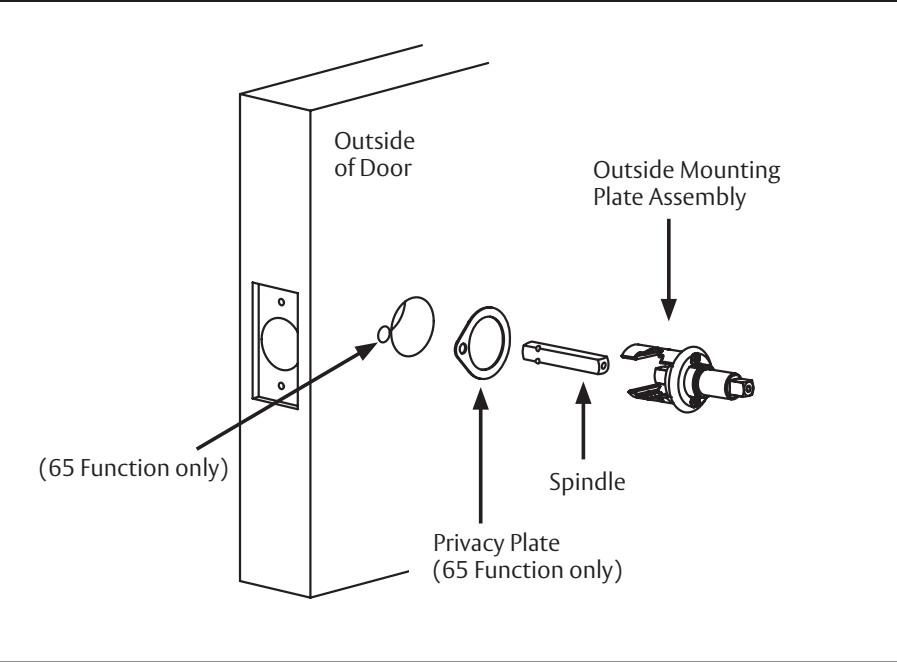

• Assemble Spindle to Outside Mounting Plate Assembly.
• Position Privacy Plate onto door with Privacy Button holes aligned. (65 Function only)
• Insert Outside Mounting Plate Assembly into door.

STEP 2

Insert Latch Assembly.

• Position the threaded hole on the Latch Assembly towards the inside of the door. (65 function only)

STEP 3

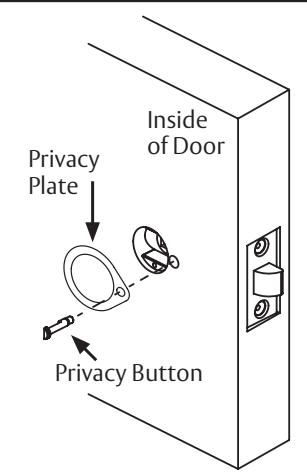

Assemble Privacy Button to Latch Assembly (65 function only).

• Position Privacy Plate on door with Privacy Button holes aligned.
• Insert Privacy Button through plate & door holes, thread into Latch Assembly.

Note: Loosening the pre assembled #6-32 screws on the outside mounting plate may improve alignment for thicker doors.

STEP 4

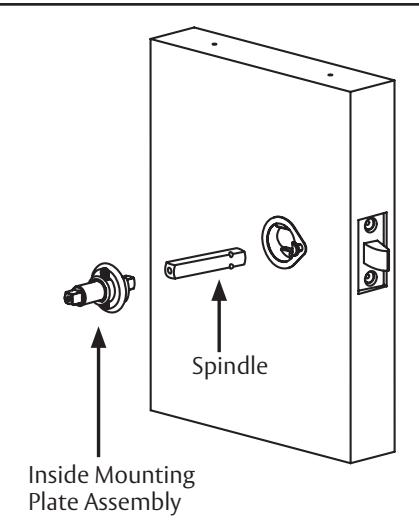

• Assemble Spindle to Inside Mounting Plate Assembly.
• Position and secure Inside Mounting Plate Assembly with (2) #6-32 screws provided (not shown).

Orient Privacy Button as shown to avoid interference. (65 Function only)

STEP 5

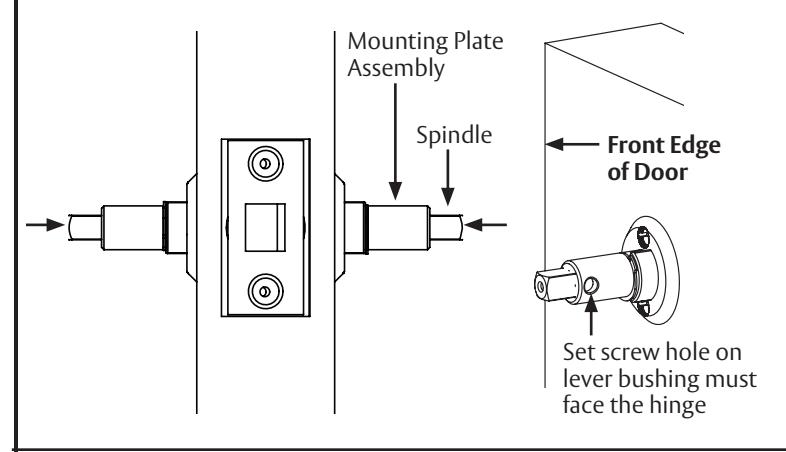

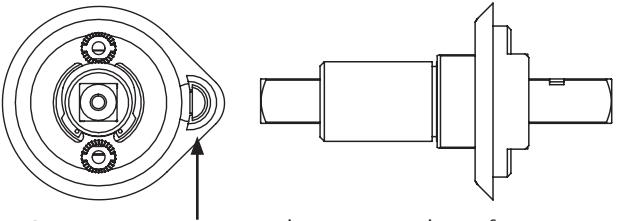

Rotate and verify the set screw hole in both Mounting Plate Assemblies face the hinge and push both Spindles into the Latch Assembly Hubs.

STEP 6

Position the Outside Front onto the Latch Assembly and secure with the provided screws.

STEP 7

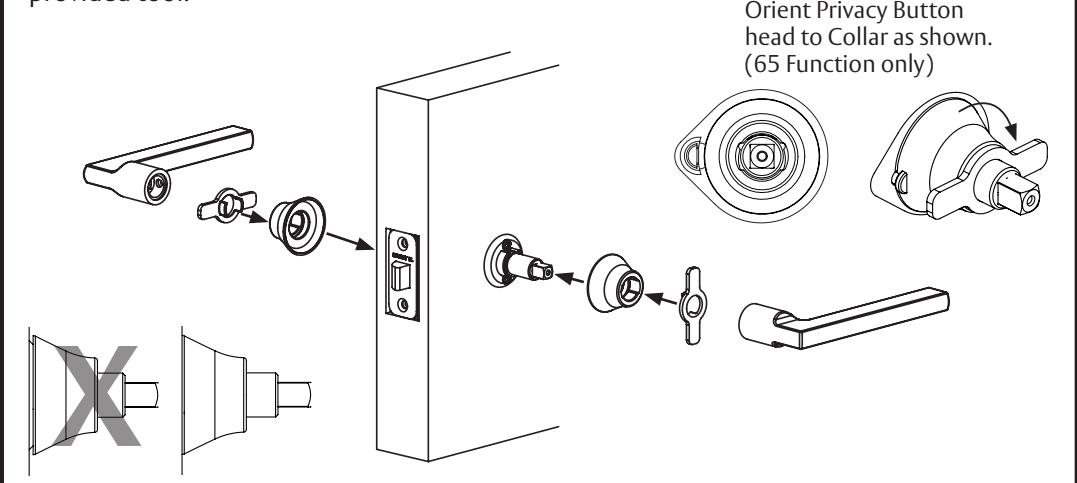

Assemble the inside and outside Collars by threading to the Mounting Plate with provided tool.

STEP 8

Assemble the inside and outside Levers with provided set screw (not shown).

• Test assembly
• Install Strike

Note: Collars must lie flush against the door

Dummy Trim Assembly Shown

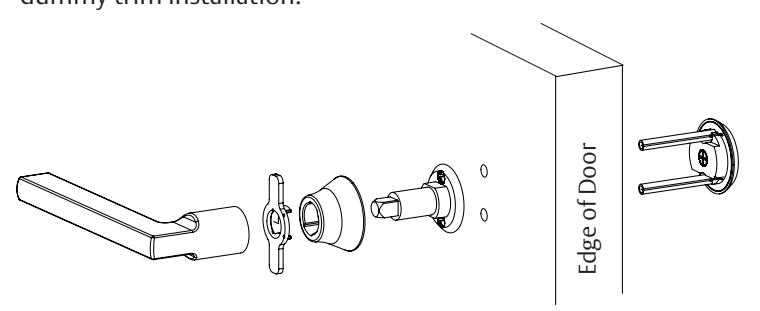

Use assembly steps 1, 4, 5, 7 & 8 for dummy trim installation.

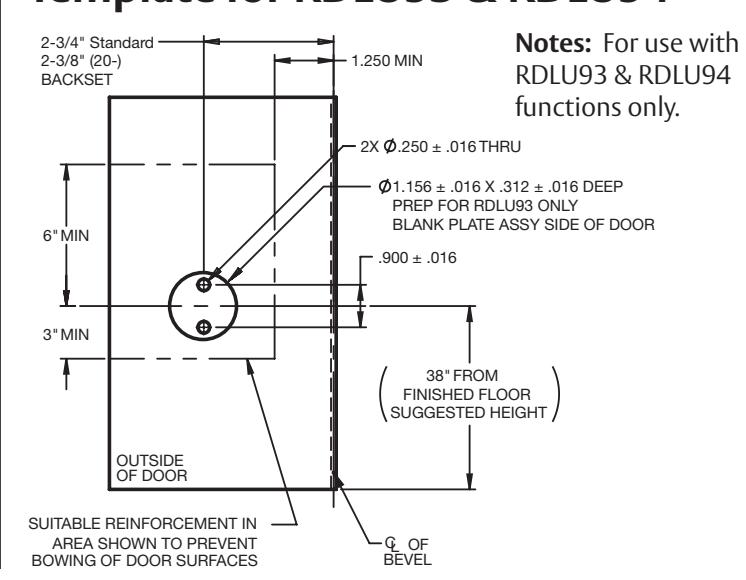

Template for RDLU93 & RDLU94
