TECHNICAL SPECS

Technology

Active Infrared with background suppression

Mounting height

3' 7" to 9' 10" 1.1 m to 3 m

Max. number of modules

4 (or up to 6 if 24 V DC)

Detection Field at Finished Floor (WxD)

15 3/4" x 2 3/4" @ 6 1/2 ft. & 4 spots active; 400 mm x 70 mm @ 2.00 m & 4 spots active

Input

1 optocoupler Free of potential contact Max. contact voltage: 30 V

Voltage threshold: high: >10 V DC

low: <1 V DC

Output

2 relays Free of potential contact

Max. contact voltage:

42 V AC/DC

Max. contact current:

Output (continued)

1 A (resistive) Max. switching power: 30 W (DC) / 60 VA (AC)

Supply voltage

12 V – 24 V AC ±10% 12 V – 30 V DC -5% / +10%

Max current consumption

65 mA @ 24 V AC 75 mA @ 24 V DC (EACH MODULE)

Object Reflectivity

min 5% at IR-wavelength of 850 nm

Degree of protection

IP53

Temperature range

-13° F to + 131° F (-25° C to +55° C) 0–95% relative humidity, non condensing

Norm conformity

EMC 2004/108/EC; MD 2006/42/EC EN ISO 13849-1:2008 Performance Level CAT 2; EN

12978

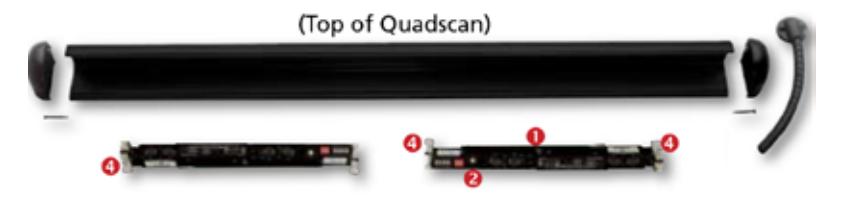

COMPONENTS

PRODUCT LINE

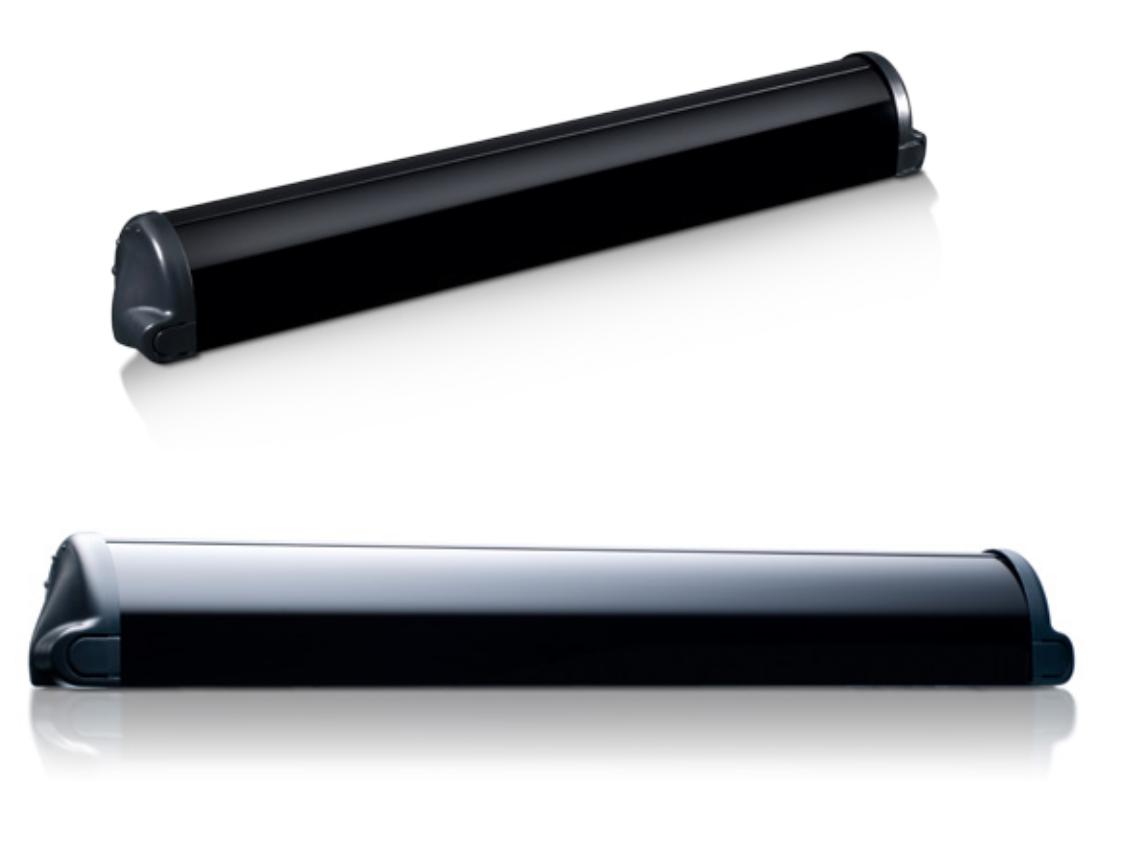

10QUADSCANi – Quadscan I (includes one quadscan module) 10QUADSCANii – Quadscan II (includes two quadscan modules) 10QUADSCANiii – Quadscan III (includes three quadscan modules)

Note 1: Custom lengths are available for non standard applications. please contact our sales team for More information. Note 2: the quadscan iii will not fit in the standard 36" housing.

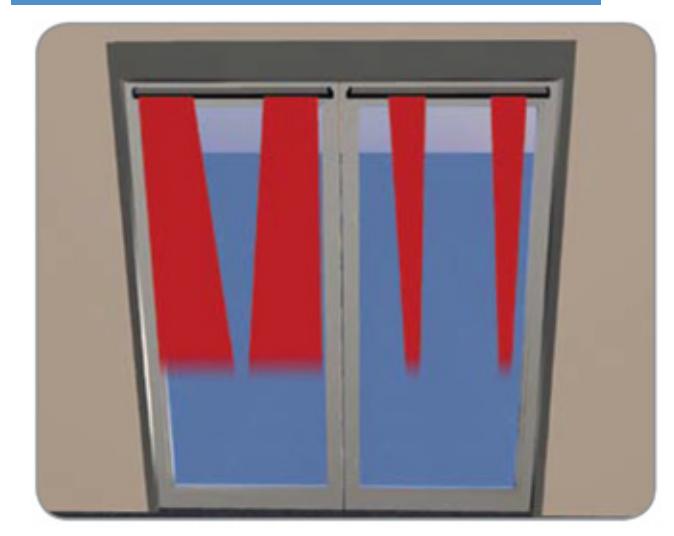

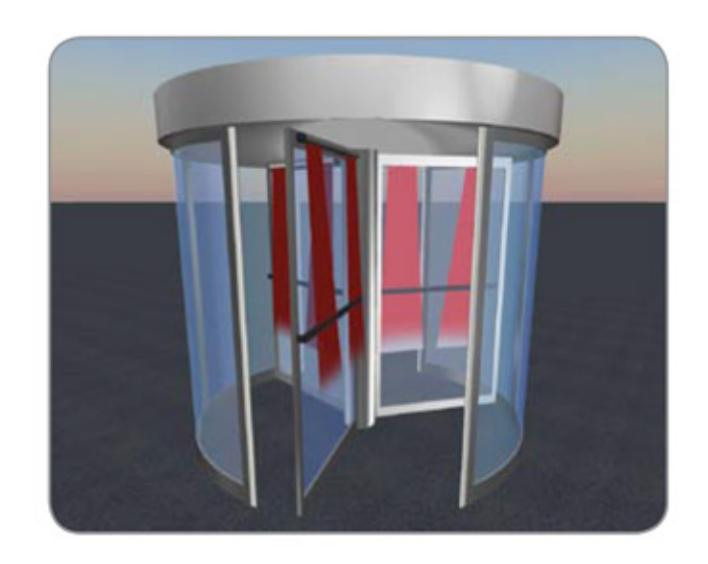

QUADSCAN APPLICATIONS

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737
