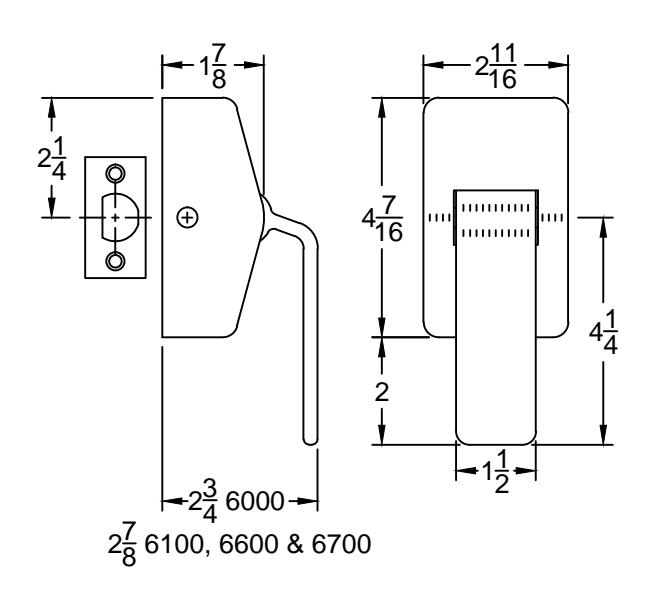

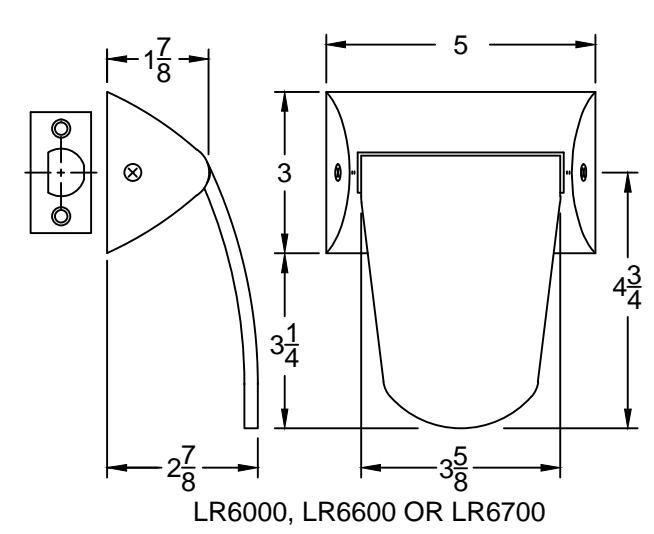

PUSH PULL LATCH DIMENSIONAL OUTLINE

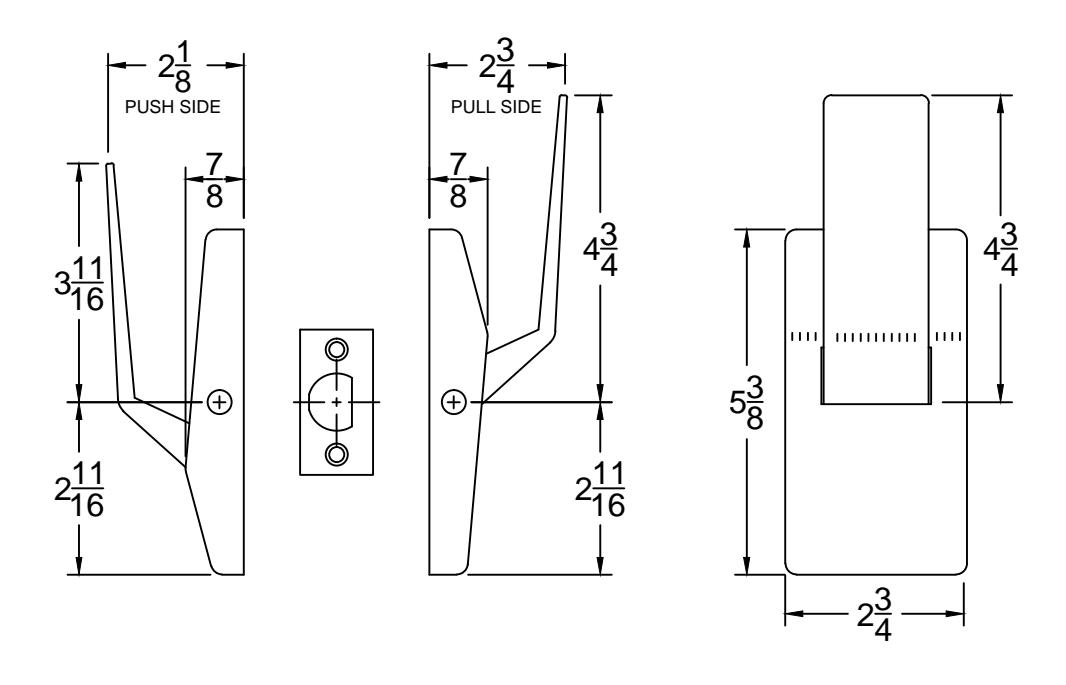

6800 SERIES - LOW PROFILE

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PUSH-PULL DIMENSIONAL OUTLINE-03.DWG

PUSH/PULL DIMENSIONAL OUTLINE PAGE 1 OF 1 © 2015 ABH Mfg., Inc. printed in USA PEVISED 06-24-15
