Pulse PRO

Audit software

USER INSTRUCTIONS

Contents

Pulse PRO Audit software installation and take audit instructions	3
Download and install the USB driver	3
Download, install and use the Pulse PRO Audit software	3
Keypads with Dallas key reader	4
Download the audit to a Dallas key for audit (max 1.200 events)	4
Download the audit to a PC (all available events)	5
Keypads without Dallas key reader	6
Download the audit to a Dallas key for audit (max 1.200 events)	6
Download the audit to a PC (all available events)	7

Pulse PRO Audit software installation and take audit instructions

Download and install the USB driver

• 1. Access to the "download" page in the Tecnosicurezza website and download the USB driver (usb_driver_x.zip) in the section "Software" of the Pulse PRO lock.
• 2. The zipped file will download to either the Downloads folder or another location depending on the browser.
• 3. Once the file has downloaded, it must be unpacked or unzipped. Locate then right click the file and select "Extract all…".
• 4. If the driver has been provided on CD or USB flash drive, copy the file to your computer and unpack it.
• 5. Once the file has been extracted, locate the application "USBXpressInstaller".
• 6. Double click the application, allow the file to run if prompted, and wait for the driver to finish installing.

Download, install and use the Pulse PRO Audit software

• 1. Access to the "download" page in the Tecnosicurezza website and download the installation file of the Pulse PRO Audit software (pulseproaudit_x-x-x.zip) in the section "Software" of the Pulse PRO lock.
• 2. The zipped file will download to either the Downloads folder or another location depending on the browser.
• 3. Once the file has downloaded, it must be unpacked or unzipped. Locate then right click the file and select "Extract all…".
• 4. If the software has been provided on CD or USB flash drive, copy the file to your computer and unpack it.
• 5. Once the file has been extracted, locate the application "PulseProAudit_x.x.x".
• 6. Double click the application, allow the file to run if prompted, and wait for the driver to finish installing.

Keypads with Dallas key reader

Download the audit to a Dallas key for audit (max 1.200 events)

Equipment:	Pulse PRO keypad with Dallas key reader	Magnetic Dallas key for audit and setup	Dallas keys reader with molex connector.	USB interface
Reference	T6630/DL	N1996RM	N42170/D	N42180/T

How to configure an audit Dallas key through Pulse PRO Audit software:

• 1. Launch the Pulse PRO Audit software.
• 2. Connect the USB interface to a USB port of the PC.
• 3. Connect the Dallas keys reader with molex connector to the USB interface.
• 4. Click on the "Create audit key" icon.
• 5. Connect the Dallas key on the reader and follow the software instructions.

• 1. Press and hold key "7" until a double beep. Led remains ON.
• 2. Enter a Manager or a Master code. Double beep.
• 3. Press key "OK". Led flashing.
• 4. Connect the magnetic Dallas key for audit to the keypad Dallas key reader. Double beep.
• 5. When download in progress a single beep every 3 seconds is heard.
• 6. When download is finished a double beep is heard.
• 7. When the Dallas key is removed from the reader, a double beep is heard as a confirm of the operation successfully completed.
• 8. Launch the Pulse PRO Audit software.
• 9. Connect the USB interface to a USB port of the PC.
• 10.Connect the Dallas keys reader with molex connector to the USB interface.
• 11.Click on the "Read audit key" icon.
• 12.Connect the Dallas key on the reader and follow the software instructions.

Download the audit to a PC (all available events)

Equipment:	Pulse PRO keypad with Dallas key reader	Magnetic Dallas key connection cable	USB interface
Reference	T6630/DL	N42170/M	N42180/T

• 1. Start the Pulse PRO Audit software.
• 2. Connect the USB interface to a USB port of the PC.
• 3. Connect the magnetic Dallas key connection cable to the USB interface.
• 4. Press and hold key "7" until a double beep. Led remains ON.
• 5. Enter a Manager or a Master code. Double beep.
• 6. Press key "P". Led flashing.
• 7. Connect magnetic Dallas key connection cable to the keypad Dallas key reader.
• 8. Click on the "Download extended audit" icon.
• 9. Choose the number of events you want to download and click on the icon "Download".
• 10.When download is finished led goes off and a single beep is heard.

Keypads without Dallas key reader

Download the audit to a Dallas key for audit (max 1.200 events)

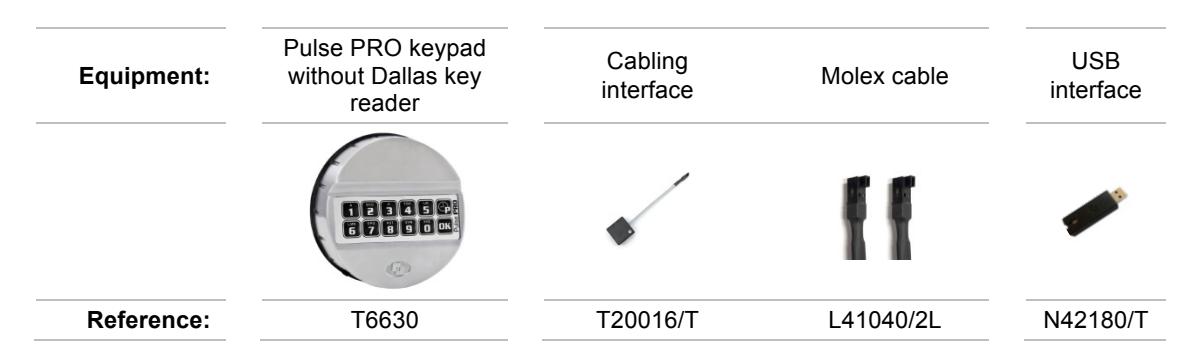

Equipment:	Pulse PRO keypad without Dallas key reader	Magnetic Dallas key for audit and setup	Cabling interface	Dallas keys reader with molex connector.	USB interface
Reference:	T6630	N1996RM	T20016/T	N42170/D	N42180/T

Connections:

• 1. Disconnect the cable linking the keypad to the lock and connect it to one of the two input of the cabling interface.
• 2. Connect the Dallas keys reader with molex connector to the other input of the cabling interface.
• 3. Connect the cabling interface output to the ENT port of the lock.

How to configure an audit Dallas key through Pulse PRO Audit software:

• 1. Launch the Pulse PRO Audit software.
• 2. Connect the USB interface to a USB port of the PC.
• 3. Connect the Dallas keys reader with molex connector to the USB interface.
• 4. Click on the "Create audit key" icon.
• 5. Connect the Dallas key on the reader and follow the software instructions.

• 1. Press and hold key "7" until a double beep. Led remains ON.
• 2. Enter a Manager or a Master code. Double beep.
• 3. Press key "OK". Led flashing.
• 4. Connect the magnetic Dallas key for audit to the Dallas keys reader with molex connector. Double beep.
• 5. When download in progress a single beep every 3 seconds is heard.
• 6. When download is finished a double beep is heard.
• 7. When the Dallas key is removed from the reader, a double beep is heard as a confirm of the operation successfully completed.
• 8. Launch the Pulse PRO Audit software.
• 9. Connect the USB interface to a USB port of the PC.
• 10.Connect the Dallas keys reader with molex connector to the USB interface.
• 11.Click on the "Read audit key" icon.
• 12.Connect the Dallas key on the reader and follow the software instructions.

Download the audit to a PC (all available events)

Connections:

• 1. Disconnect the cable linking the keypad to the lock and connect it to one of the two input of the cabling interface.
• 2. Connect the molex cable to the other input of the cabling interface and to the USB interface.
• 3. Connect the cabling interface output to the ENT port of the lock.

• 1. Start the Pulse PRO Audit software.
• 2. Connect the USB interface to a USB port of the PC.
• 3. Press and hold key "7" until a double beep. Led remains ON.
• 4. Enter a Manager or a Master code. Double beep.
• 5. Press key "P". Led flashing.
• 6. Click on the "Download extended audit" icon.
• 7. Choose the number of events you want to download and click on the icon "Download".
• 8. When download is finished led goes off and a single beep is heard.
