View PDFMOUNTING OPTIONS: PULLS, PUSH PLATES

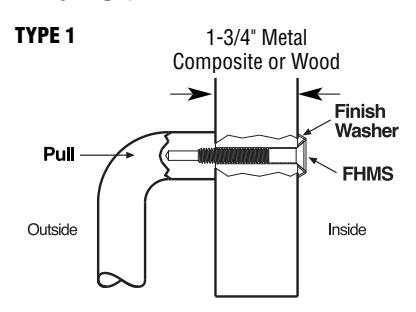

Thru Bolt
| ТҮРЕ |
BOLT
SIZE |
DRILL SIZE |
|---|---|---|
| 1 | 1/4 - 20 | 9⁄32" |
| 1HD | 5/16 - 18 | 11/32" |

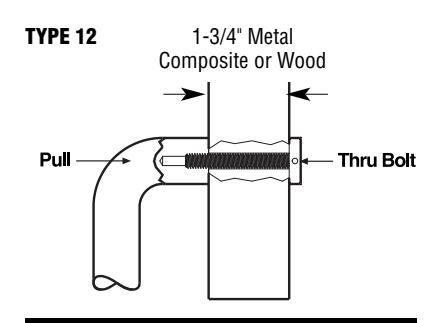

| TYPE |
BOLT
Size |
DRILL SIZE |
|---|---|---|
| 12 | 1/4 - 20 | 9⁄32" |
| 12HD | 5/16 - 18 | 11/32" |

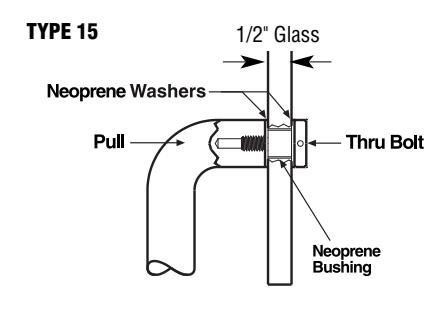

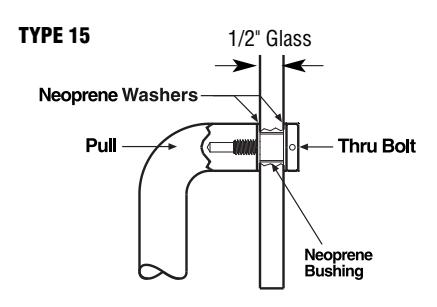

| ТҮРЕ | BOLT SIZE |
DRILL SIZE
GLASS |
|---|---|---|
| 15 | 1/4 - 20 | 5⁄8" |
| 15HD | 5⁄16 - 18 | 5⁄8" |
Surface Concealed

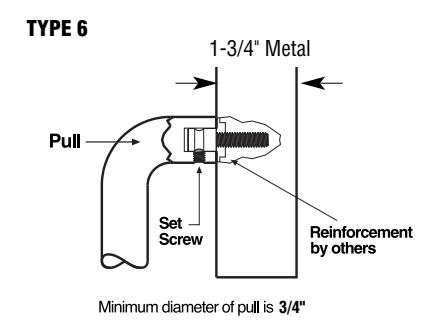

METAL DOOR - TYPE 6
Minimum diameter of pull is 3/4"
BOLT SIZE
1/4 - 20
5/16 - 18

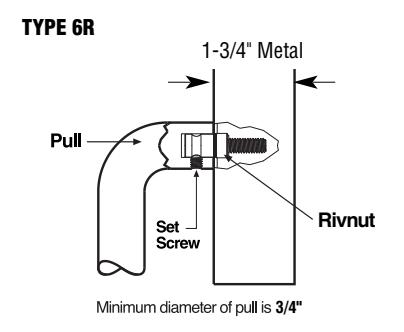

| METAL | DOOR - | TYPE 6R |
|---|
Minimum diameter of pull is 3/4"
| Set Screw | Knife Thread Insert |
|---|---|
1-3/4" Composite or Wood
Minimum diameter of pull is 3/4"

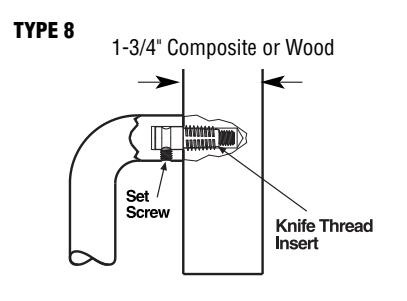

WOOD DOOR - TYPE 8
| THREAD SIZE | TYPE | BOLT SIZE |
DRILL SIZE
METAL |
|---|---|---|---|
| 1/4 - 20 TAP | 6R | 1/4 - 20 | 3/8" X 1-1/4" DP |
| 5⁄16 - 18 TAP | 6RHD | 5⁄16 - 18 | 1/2" X 1-1/4" DP |
| TYPE | BOLT SIZE |
DRILL SIZE
WOOD |
|---|---|---|
| 8 | 1/4 - 20 | 1-1/4" DP |
| 8HD | 5⁄16 - 18 | 1-1/4" DP |

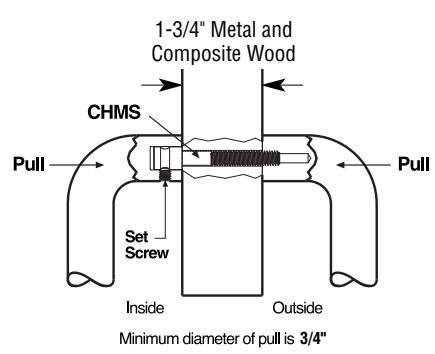

Back to Back
TYPE 6
6HD

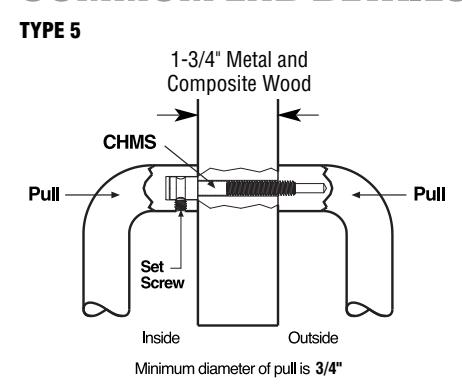

WOOD OR METAL DOOR - TYPE 5
| ТҮРЕ |
BOLT
SIZE |
DRILL SIZE |
|---|---|---|
| 5 | 1/4 - 20 | 9⁄32" |
| 5HD | 5⁄16 - 18 | 11/32" |

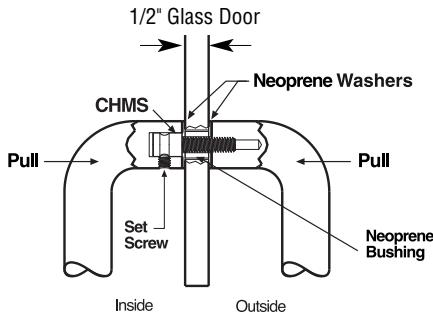

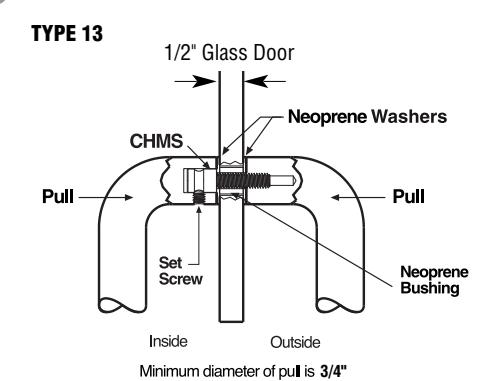

GLASS TYPE 13
Minimum diameter of pull is 3/4"
| TYPE | BOLT SIZE |
DRILL SIZE
GLASS |
|---|---|---|
| 13 | 1/4 - 20 | 5⁄8" |
| 13HD | 5/16 - 18 | 5⁄8" |

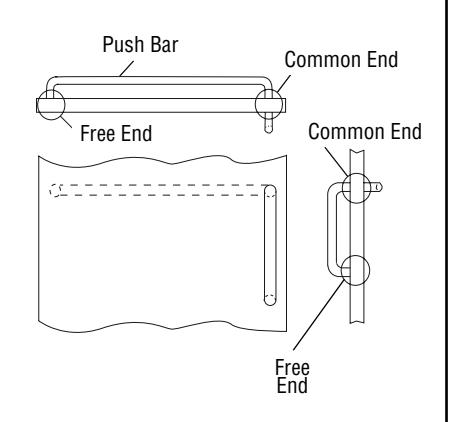

MOUNTING OPTIONS: PULLS AND OFFSET PULL HANDLES-PUSH BAR SETS
FREE END DETAILS

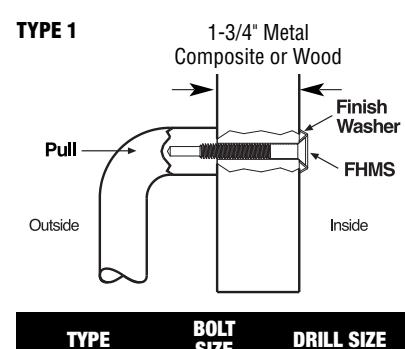

Thru Bolt
| TYPE |
BOLT
SIZE |
DRILL SIZE |
|---|---|---|
| 1HD | 5⁄16 - 18 | 11/32" |
| TYPE |
BOLT
SIZE |
DRILL SIZE |
|---|---|---|
| 12HD | 5⁄16 - 18 | 11/32" |
Surface Concealed
| TYPE | BOLT SIZE |
DRILL SIZE
GLASS |
|---|---|---|
| 15HD | 5/16 - 18 | 5⁄8" |
| TYPE | BOLT SIZE | THREAD SIZE |
|---|---|---|
| 6HD | 5/16 - 18 | 5⁄16 - 18 TAP |
| ТҮРЕ | BOLT SIZE |
DRILL SIZE
METAL |
|---|---|---|
| 6RHD | 5⁄16 - 18 | 1/2" X 1-1/4" DP |
COMMOM END DETAILS
Minimum diameter of pull is 3/4"
| ТҮРЕ | BOLT SIZE |
DRILL SIZE
WOOD |
|
|---|---|---|---|
| 8HD | 5/16 - 18 | 1-1/4" DP | |
| TYPE |
BOLT
SIZE |
OLT DRILL SIZE | |
|---|---|---|---|
| 5HD | 5⁄16 - 18 | 11⁄32" | |
TYPE BOLT SIZE DRILL SIZE GLASS 13HD 5/16 - 18 5/8"
PULL PLATES
Fastener Packs for Door Pulls
| TYPE | DESCRIPTION |
|---|---|
|
1
1HD 5 |
2 ea. 1⁄4-20 x 2-1⁄4" FH MS, 2 ea. 1/4" Finish Washers.
2 ea. 5⁄16-18 x 2-1⁄4 FH MS, 2 ea. 5/16" Finish Washers. 2 ea. 1⁄4-20 x 2-3⁄4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. 1/4-20 x 1/2" Threaded Insert. |
| 5HD |
2 ea. 5⁄16-18 x 2-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 1/4" Set Screws,
2 ea. 5/16" x 1/2" Steel Sleeves, 2 ea. 1/4-20 x 1/2" Threaded Insert. |
|
6
6HD 6R |
2 ea. 1⁄4-20 x 1" Undersize Head FH MS, 2 ea. 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves.
2 ea. 5⁄16-18 x 1" Undersize Head FH MS, 2 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves. 2 ea. 1⁄4-20 x 1-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. 1/4-20 Rivnut Inserts. |
| 6RHD |
2 ea. 5⁄16-18 x 1-5/8 Undersize Head FH MS, 2 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves
2 ea. 5/16-18 Rivnut Inserts |
| 8 |
2 ea. 1⁄4-20 x 1-5/8" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves,
2 ea. 1/4 - 20 Knife Thread Inserts |
| 8HD |
2 ea. 5⁄16-18 x 1-5/8 Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves,
2 ea. 5/16 - 18 Knife Thread Inserts. |
| 12 | 2 ea. 1" DIA Head, 1⁄4-20 x 2-1⁄4" Decorative Cap Bolts. |
|
12HD
13 |
2 ea. 1" DIA Head, 5⁄16-18 x 2-1⁄4" Decorative Cap Bolts.
2 ea. 1⁄4-20 x 1-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. Bushings for 1/2" Thick Glass Door, 4 ea. Neoprene Washer |
| 13HD |
2 ea. 5⁄16-18 x 1-3/4" Undersize Head FH MS, 4 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves,
2 ea. Bushings for 1/2" Thick Glass Door, 4 ea. Neoprene Washers. |
| 15 |
2 ea. 1" DIA Head 1⁄4-20 x 1-1⁄8" Decorative Cap Bolts, 2 ea. Neoprene Bushings for 1/2" Thick Glass Door,
4 ea. Neoprene Washers. |
| 15HD |
2 ea. 1" DIA Head 1⁄4-20 x 1-1⁄8 Decorcative Cap Bolts, 2 ea. Neoprene Bushings for 1/2" Thick Glass Door,
4 ea. Neoprene Washers. |
| MOUNTING OPTIONS FOR OFFSET PULL HANDLES- PUSH BAR SETS | MOUNTING TYPES | ||
|---|---|---|---|
| TYPE | DESCRIPTION | COMMON END | FREE END |
| S | Std Thru Bolt For 1-3/4" Metal, Composite or Wood Doors (Default) | 5HD | 1HD |
| D | Decorative Thru Bolt for 1-3/4" Metal, Composite or Wood Doors | 5HD | 12HD |
| M | Concealed for 1-3/4" Metal Doors | 5HD | 6HD |
| W | Concealed for 1-3/4" Composite or Wood Doors | 5HD | 15HD |
| G | Decorative Thru Bolt for 1/2" Glass Doors | 13HD | 8HD |
