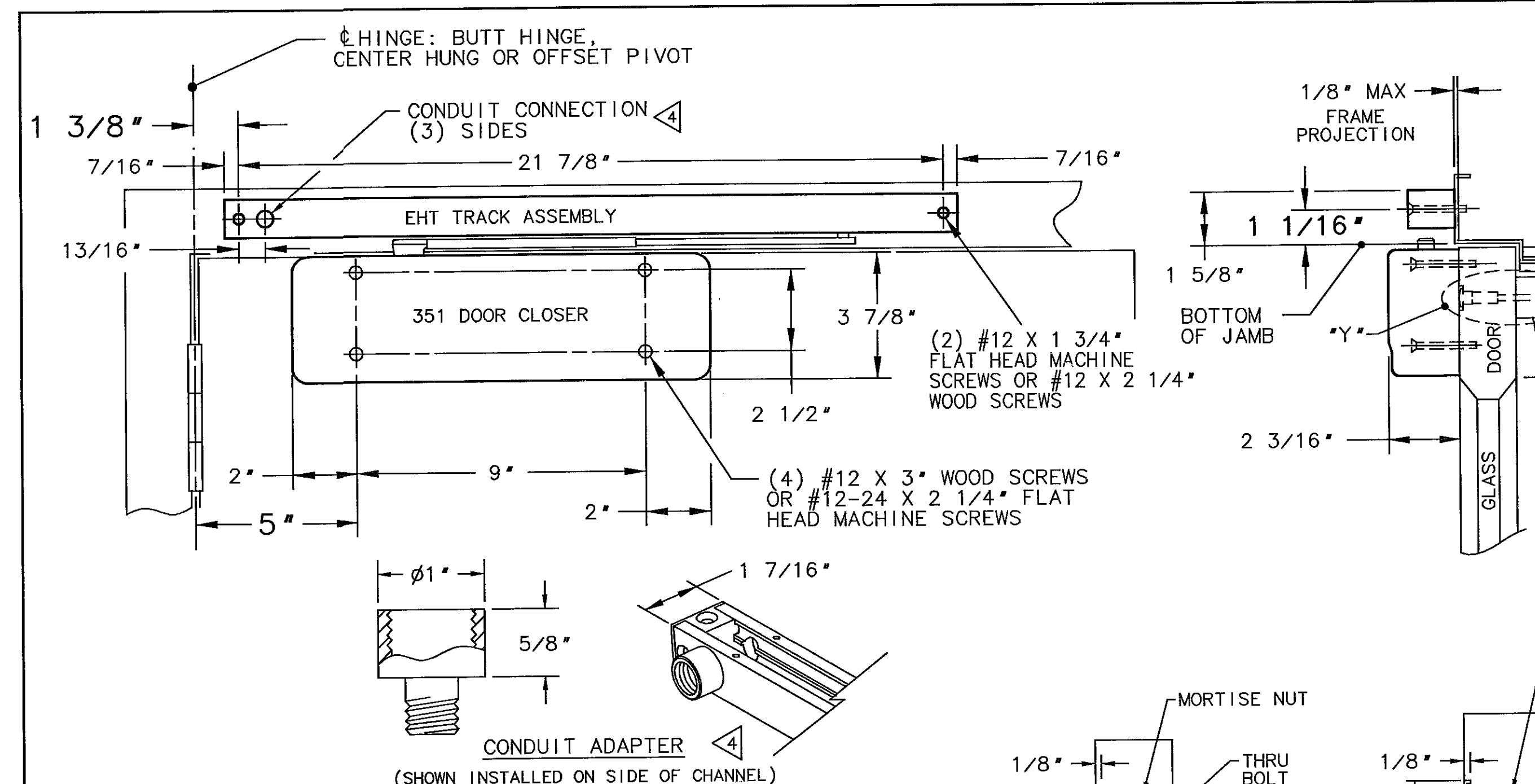

Pull Side Application (for use with 590 or 1540 Series)

NOTES

• 1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 & SDI-100, 12 GAUGE RECOMMENDED.
• 2. RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.
• 3. FOR NARROW RAIL DOORS (WIDER THAN 2 1/4"), USE 351-A DROP PLATE, SEE TEMPLATE A6772.
• (3) HOLES ARE PROVIDED FOR THE CONDUIT CONNECTION. AN ADAPTER IS INCLUDED THAT ACCEPTS STANDARD 1/2" THREADED CONDUIT.
• 5. OVERHEAD STOPS SHOULD BE INSTALLED AT THE DOOR POSITION (85°-110°) AS GIVEN IN THE TABLES ON TEMPLATES A7479-A7481 FOR 597-599 INSTALLATIONS AND A7488-A7490 FOR 1546-1549 INSTALLATIONS. THE ACTUAL HOLD OPEN POSITION CAN THEN BE SET BY ADJUSTING THE LENGTH OF THE 351-EHT ARM. THE EHT ARM SHOULD BE ADJUSTED SO THAT THE DOOR HOLDS OPEN JUST PRIOR TO THE STOP POSITION.

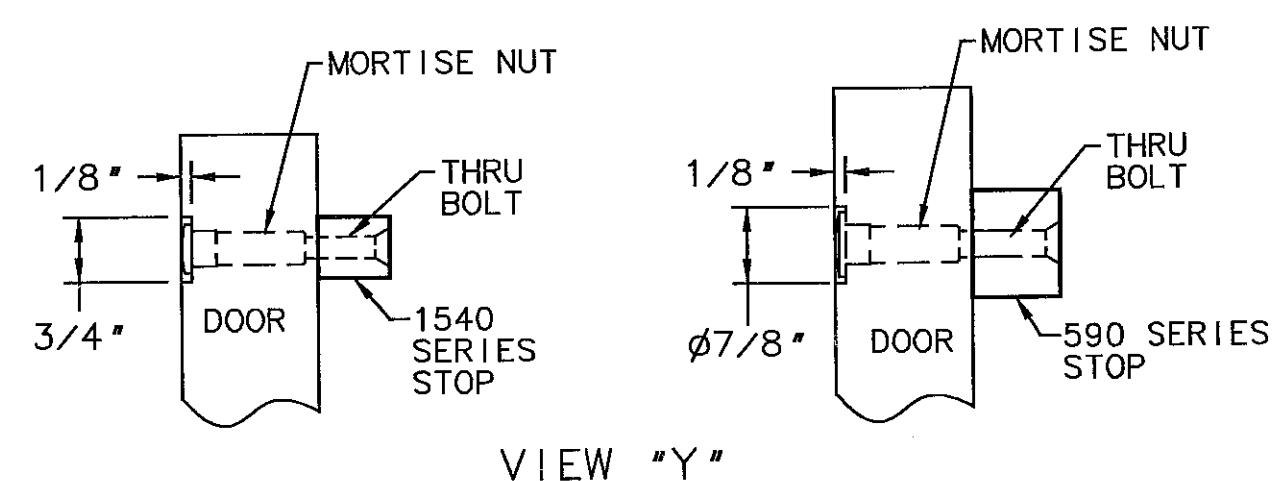

MORTISE NUT HEADS MUST BE RECESSED INTO DOOR WHEN CONFLICTS OCCURS.

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DATA SHEET: 351EHT SERIES CLOSER-HOLDER, PULL SIDE APPLICATION WITH 590 OR 1540 TEMPLATE NO. SERIES STOP

EFFECTIVE DATE 17 JULY 03

TOP OF -

3>4

590 OR

5>

1540 STOP

DOOR

A7637 A
