Filler Plates and Angle Brackets

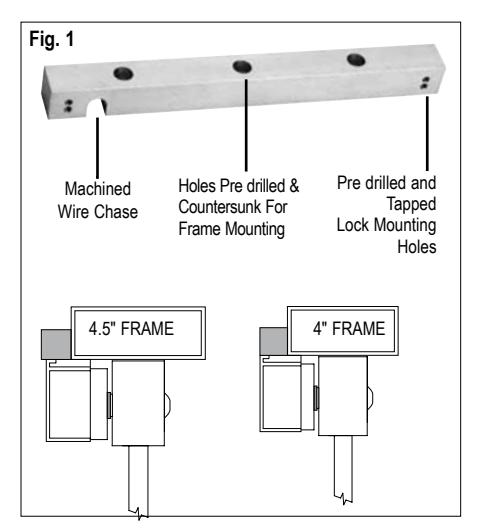

Pre-Drilled & Tapped Header Bracket

Application

Used in lieu of angle brackets, the Universal Header Bracket provides a faster mounting solution, saving time and labor costs for several EmLock models. Reduce potential for mis-sized and misaligned mounting holes, broken taps, removal of broken taps. Combined with interlocking

E-Z mount assembly, save up to a half days labor with the installation of 12 locks.

Features

• Solid 1" bar provides higher security and superior aesthetics.
• Machined wire chase provides concealed and secure wiring
• Multiple pre-drilled and tapped mounting holes to accommodate the use of several different locks on either 4" or 4.5" aluminum frames

Model

UB11 1" x 1" x 11"

For 1511, 1513, 1571, 1573. 1511S, 1511T, 1511DE, 1571DE

UB12 1" x 1" x 22" For 1512 and 1572.

Finish

• V 628 Aluminum (standard)
• C 605 Bright Brass X 313 Dark Bronze
• D 606 Dull Brass Y 335 Black
• P 625 Bright Chrome
• Q 626 Dull Chrome

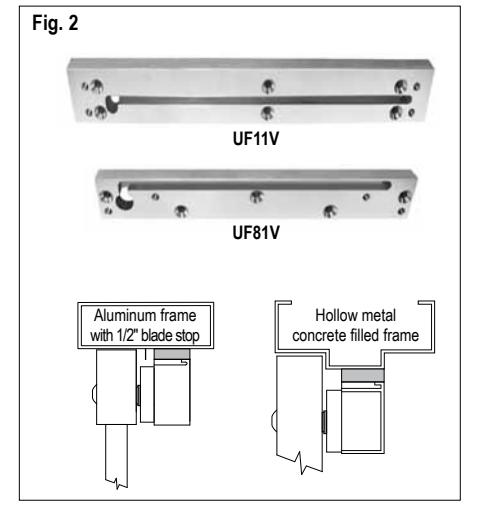

Spacer Bracket For Concrete Filled Frames & Aluminum Frame with blade Stops

Application

• Aluminum frames with blade stop lowers EmLock below blade stop
• Concrete filled hollow metal frames -provides multiple points for concealed wire entry

Features

• Pre-drilled and tapped specifically for 1510, 1570, 1580 EmLock
• Machined wire chase provides multiple points for concealed wire entry from concrete filled frames.
• 628 Aluminum Anodized

Model

UF11V 1/2" x 1-1/2" x 11"

For 1511, 1513, 1571, 1573. 1511S, 1511DE, 1571DE

UF12V 1/2" x 1-1/2" x 22"

For 1512 and 1572.

UF81V 1/2" x 1-1/4" x 8-3/4"

For 1581.

UF82V 1/2" x 1-1/4" x 17-1/2"

For 1582.

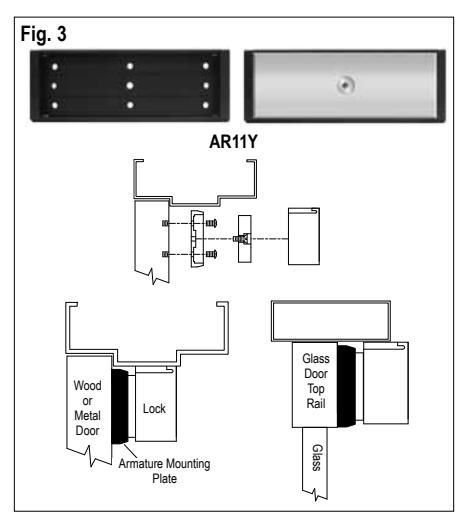

Armature Mounting Plate

Application

The AR Mounting plate provides a solution for mounting the EMLock® armature to the top rail of herculite, aluminum and glass, wood and hollow metal doors that do not permit the use of thru bolts.

Model

AR11Y Armature mounting plate for 1511, 1571. 335 Black Anodized

AR11YD Armature mounting plate with DPS for 1511, 1571. 335 Black Anodized

Specify two for models 1512, 1572

Filler Plates

For Extension Of The Stop To Provide A Proper Mounting Surface On The Underside Of The Header See Figure 1b.

For 8-3/4" Single Emlock & Exit Check Models

1581, 1581DE

PART #	A x B
FP01	1/8" x 1-1/4" (3 x 32mm)
FP02	1/4" x 1-1/4" (6 x 32mm)
FP03	3/8" x 1-1/4" (10 x 32mm)
FP04	1/2" x 1-1/4" (13 x 32mm)
FP05	5/8" x 1-1/4" (16 x 32mm)

For 10"-11" Single Emlock & Exit Check Models

1511, 1513, 1571,

1581S, 1511S, 1511T, 1511DE, 1571DE

PART #	A x B
FP11	1/8" x 1-1/4" (3 x 32mm)
FP12	1/4" x 1-1/4" (6 x 32mm)
FP13	3/8" x 1-1/4" (10 x 32mm)
FP14	1/2" x 1-1/4" (13 x 32mm)
FP15	5/8" x 1-1/4" (16 x 32mm)

For 17-1/2" (445mm) Double Emlock Model 1582

PART #	A x B
FP30	1/8" x 1-1/4" (3 x 32mm)
FP31	1/4" x 1-1/4" (6 x 32mm)
FP32	3/8" x 1-1/4" (10 x 32mm)
FP33	1/2" x 1-1/4" (13 x 32mm)
FP34	5/8" x 1-1/4" (16 x 32mm)

For 22" (559mm) Double Emlock Models 1512 / 1572

PART #	A x B
FP21	1/8" x 1-1/4" (3 x 32mm)
FP22	1/4" x 1-1/4" (6 x 32mm)
FP23	3/8" x 1-1/4" (10 x 32mm)
FP24	1/2" x 1-1/4" (13 x 32mm)
FP25	5/8" x 1-1/4" (16 x 32mm)

Finish

V	628 Aluminum (std)	Q	626 Dull Chrome
C	605 Bright Brass	X	313 Dark Bronze
D	606 Dull Brass	Y	335 Black

P 625 Bright Chrome

Angle Brackets

Used As Extension On Shallow Door Frames To Provide Adequate Mounting Surface. See Figure 1c.

For 8-3/4" Single Emlock & Exit Check Models

1581, 1581DE

PART #	A x B
AB01	1" x 1" (25 x 25mm)
AB02	1" x 1-1/2" (25 x 38mm)
AB03	1-1/2" x 1-1/2" (38 x 38mm)
AB04	2" x 1-1/2" (51 x 38mm)

For 10"-11" Single Emlock & Exit Check Models

1511, 1513, 1571,

1581S, 1511S, 1511T, 1511DE, 1571DE

PART # A x B AB11 1" x 1" (25 x 25mm) AB12 1" x 1-1/2" (25 x 38mm) AB13 1-1/2" x 1-1/2" (38 x 38mm) AB14 2" x 1-1/2" (51 x 38mm)

For 17-1/2" (445mm) Double Emlock Model 1582

PART # A x B AB30 1" x 1" (25 x 25mm) AB31 1" x 1-1/2" (25 x 38mm) AB32 1-1/2" x 1-1/2" (38 x 38mm) AB33 2" x 1-1/2" (51 x 38mm)

For 22" (559mm) Double Emlock Models 1512 / 1572

PART # A x B AB21 1" x 1" (25 x 25mm) AB22 1" x 1-1/2" (25 x 38mm) AB23 1-1/2" x 1-1/2" (38 x 38mm) AB24 2" x 1-1/2" (51 x 38mm)
