Electrical Power Transfer Products

Standard Features:

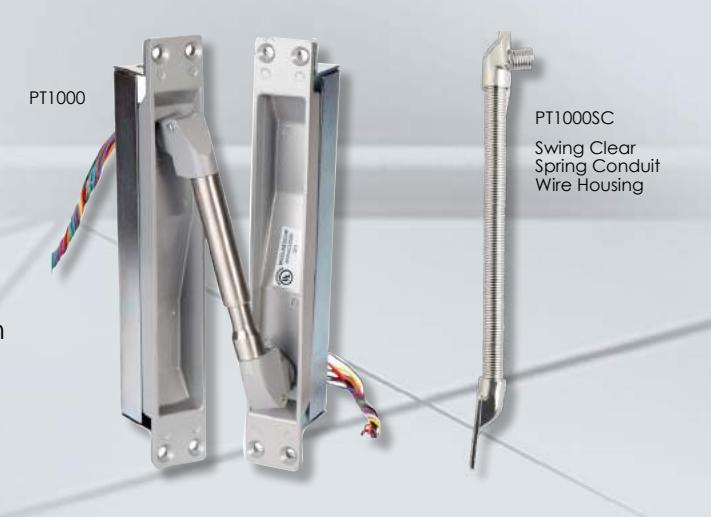

  • PT1000, PT200, PT1200EZ, PTC5E and PTC6PLUS provide the means of transferring electrical power or data from the frame to the door in a secure and discreet manner.
  • PT1200EZ are supplied standard with EZ Connectors compatible with Dormakaba products.
  • PTC5E and PTC6PLUS are supplied with ethernet cable.
  • Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
  • All metal construction including back boxes- No plastic parts.
  • Ideal for high abuse or heavy traffic situations.
  • UL/ULC Listed for use on fire doors.
  • Packaged individually with fasteners for wood or metal doors and frames.
  • Standard Finishes:
    • US28 Brushed Aluminum
    • S5 Powder Coated Dark Bronze to match US10B Finish
  • Approximate shipping weight: 3 lbs.
  • Patent Pending
  • Matches competitors' door and frame prep

Standard Applications:

  • 1-3/4" Door thickness
  • Cam lift hinges (up to 1/2" lift) allowing for 180° door swing
  • Butt hinges up to 5" allowing for 180° door swing
  • Invisible hinges allowing for 90° door swing
  • Swing Clear Hinges with SC option
  • 5 ½" butt hinges allowing for 130° door swing
  • 6" butt hinges allowing for 110° door swing
  • Up to ¾" offset pivots allowing for 180° door swing
  • Not for use with pocket pivots, butt hinges larger than 6", 1-½"½"offset pivots or center hung doors

Options:

  • SEC Security Fasteners
  • PT1000 & PT200 available with Molex® plug-in connectors option (suffix "EZ") - see picture inset
  • SC Swing Clear option available for PT1000 & PT200

EZ connect Molex Connectors (optional)

PT1200 EZ Connect for Dormakaba

PT1000 - (10) 24 AWG Wires
- Max. Rating: 24VDC, 1A
All I PT200 - (2) 18 AWG Wires
- Max. Rating: 24 VDC, SA or
120 VAC NEC Class 3
PT1200EZ - (12) 24 AWG Wires
- Max. Rating: 24VDC, 1A
1 PTC5E - (8) 24 AWG Wires & (1) 22 AWG Wire
Stranded Ethernet Cable (1 - 100 MHz)
- Max. Rating: 24 VDC, 1A
1 PTC6PLUS - (8) 24 AWG Wires & (1) 22 AWG Wire
Stranded Ethernet Cable (1 - 250 MHz)
- Max. Rating: 24 VDC, 1A

*Brand names are trademarks or registered trademarks of their respective companies.
