CAMDEN ACCESSORIES

13/8 (35mm)

• 3/8" Inside diameter • Aluminum endcaps • Stainless steel cable

CM-PT38

• 18" Length

"

HEAVY DUTY ARMOURED POWER TRANSFER CABLES

US26 finish

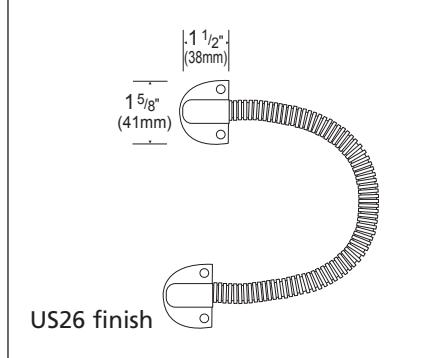

US26 finish CM-PTSS38-7

• 7", 12", 18" Lengths
• 1/4" Inside Diameter
• Stainless Steel Cable and end caps

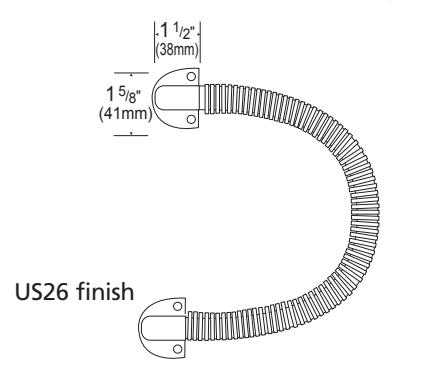

CM-PTSS38-12 CM-PTSS38-18

• 7", 12", 18" Lengths
• 3/8" Inside diameter
• Stainless Steel Cable and end caps

(76mm) 3"

CM-PTS14

(38mm)

11/2

"

• 12" Length
  • 1/4" Inside diameter
  • Stainless Steel Cable and grey Zamac end caps

US26 finish

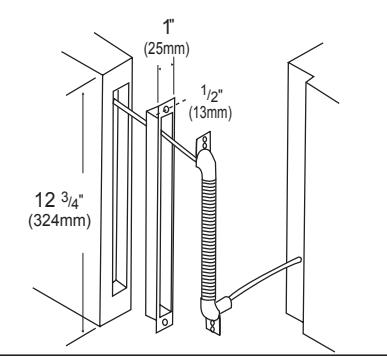

CM-PT516-M

• Concealed Power Transfer
• 5/16" Inside diameter
• Mortise style
• All steel construction
• Max. door opening 120º
• Bright Chrome finish

CM-PT250M

• Concealed Power Transfer
• 4 5/16" Length
• 1/4" Inside Diameter
• Maximum door opening 120º
• Stainless Steel Cable and grey plastic end caps

Notes:

• PTSS models are available in lengths up to 72". Contact factory for pricing and delivery
• 1/4" ID. models for 4 conductor 22 gauge,
• or 2 conductor 18 gauge wire
• 3/8" ID. models for 16 conductor 22 gauge, or 8 conductor 18 gauge wire
