PIVOT DEFINITION OFFSET

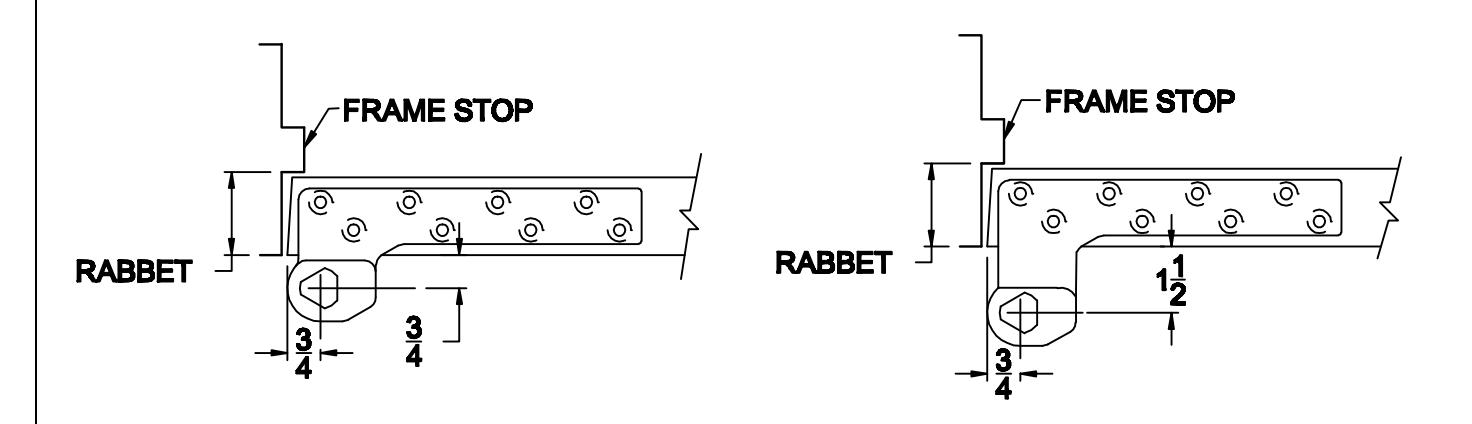

PIVOT POINT IS LOCATED 3/4" FROM THE HEEL EDGE OF DOOR.

THE PIVOT POINT IS LOCATED IN FRONT OF THE DOOR WITH THE PIVOT KNUCKLE VISIBLE. THIS IS NORMALLY 3/4" OR 1-1/2". THE 1-1/2" OFFSET IS USED FOR APPLICATIONS SUCH AS A DECORATIVE PANEL ON THE PUSH SIDE OF THE DOOR OR A TRIM PROJECTION THAT PREVENTS THE DOOR FROM OPENING 180 DEGREES.

OFFSET PIVOTS ARE SINGLE ACTING ONLY TYPICALLY USED ON RABBETED FRAMES

R www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

88 HINGE TOLIET PARTITION LIFT.DWG

PIVOT DEFINITION OFFSET

ISSUED 4/3/12
