Pivot Set Configurations – Cut Sheet
Open the original PDF document
View PDF3/4" OFFSET PIVOT SET - SINGLE ACTING 0117.25 PIVOT SET 0117 PIVOT SET 0117.50 PIVOT SET L0117 PIVOT SET
0117 Pivot Set
For Steel or Wood doors up to 42" wide & weighing up to 300 lb.
For up to 3 hours fire rated door-standard Top pivot, door & jamb leaf 0180 Bottom Arm 0117
Floor Bearing, S.S.(heavy duty)
Intermediate pivot (recommended)
Specify Handing - LH or RH
0117.25 Pivot Set
For Steel or Wood doors up to 42" wide & weighing up to 250 lb.
| For up to 3 hrs. fire rated door-standard | ||
|---|---|---|
| 1 | 0180 | Top pivot, door & jamb leaf |
| 2 | 0117 Bottom Arm | |
| 5 | Side Jamb rest on Floor | |
| Bearing, S.S.(heavy duty) | ||
| 4 | 019* | Intermediate pivot (recommended) |
Specify Handing - LH or RH
0117.50 Pivot Set
For Steel or Wood doors up to 48" wide & weighing up to 650 lb.
For up to 3 hours fire rated door-standard 0180 Top pivot, door & jamb leaf 0117.50 Bottom Arm Floor Bearing, S.S.(heavy duty) Intermediate pivot (required) 4 019*
Specify Handing - LH or RH
L0117 Pivot Set
For 1-3/4" lead-lined doors up to 48" wide
& weighing up to 1750 lb. For up to 3 hours fire rated door-standard
L0180 Top pivot L0117 Bottom Arm Floor Bearing, S.S.(heavy duty) 4 L019* Intermediate pivot (required)
Specify Handing - LH or RH
* Use of 019/L019 Intermediate Pivot(s) as needed. Door size & Weight Capacity of Pivot set are dependent on use of Intermediate Pivot(s). (order separately)
3/4" OFFSET PIVOT CONFIGURATION.DWG
PIVOT CONFIGURATION 3/4" OFFSET (0117,0117.25,0117.5,L0117)
© 2021 ABH Mfg., Inc. printed in USA
REVISED 7/22/21
R www.abhmfg.com E-mail: abhinfo@abhmfq.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
3/4" OFFSET PIVOT SET - SINGLE ACTING 0173 PIVOT SET 0195 PIVOT SET 0147 PIVOT SET L0147 PIVOT SET
0195 Pivot Set
For Steel or Wood doors up to 48" wide & weighing up to 450 lb.
For up to 3 hours fire rated door-standard Top pivot, door & jamb leaf 0180
0195 Bottom Leaf into side jamb, S.S. Door Leaf,
S.S.(heavy duty needle bearing) Intermediate pivot (recommended)
Specify Handing - LH or RH
0173 Pivot Set
For Steel or Wood doors up to 36" wide & weighing up to 150 lb.
For up to 3 hours fire rated door-standard 0180 Top pivot 0173 Bottom Arm into door, S.S.
Floor Stud into concrete S.S.(heavy duty bearing)
Intermediate pivot (recommended) 019* Specify Handing - LH or RH
0147 Pivot Set
For Steel or Wood doors up to 48" wide & weighing up to 600 lb.
For up to 3 hours fire rated door-standard 0180 Top pivot Bottom Arm into door 0147 Floor Bearing, S.S.(heavy duty) Intermediate pivot (req'd) 019*
Specify Handing - LH or RH
L0147 Pivot Set
For 1-3/4" lead-lined doors up to 48" wide & weighing up to 1000 lb.
For up to 3 hours fire rated door-standard Top pivot L0180 Bottom Arm L0147 Floor Bearing, S.S.(heavy duty) Intermediate pivot (req'd) L019
Specify Handing - LH or RH
* Use of 019/L019 Intermediate Pivot(s) as needed. Door size & Weight Capacity of Pivot set are dependent on use of Intermediate Pivot(s). (order separately)
3/4" OFFSET PIVOT CONFIGURATION.DWG
PIVOT CONFIGURATION 3/4" OFFSET (0147,0195,0173) PAGE 2 OF 6 REVISED 7/22/21
R www.abhmfg.com E-mail: abhinfo@abhmfq.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
© 2021 ABH Mfg., Inc. printed in USA
CENTER HUNG PIVOT SET - SINGLE or DOUBLE ACTING

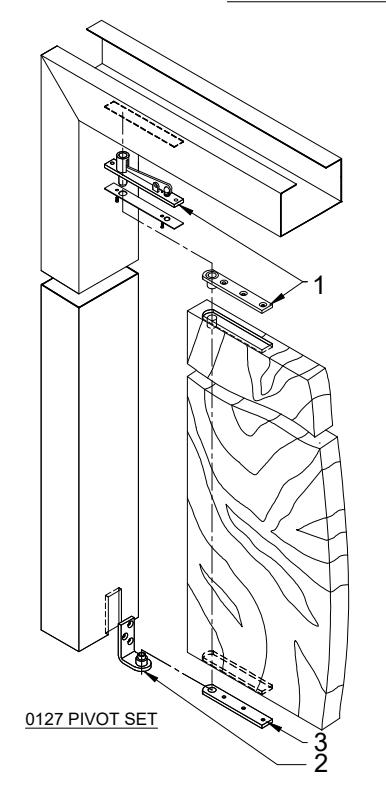

0127 Pivot Set
For Steel or Wood doors up to 42" wide x 102" height & weighing up to 200 lb.
| Top pivot | ||
|---|---|---|
| 2 | 0127 | Bottom Leaf into side jamb |
| 3 | Door Leaf - Bottom |
Non Handed

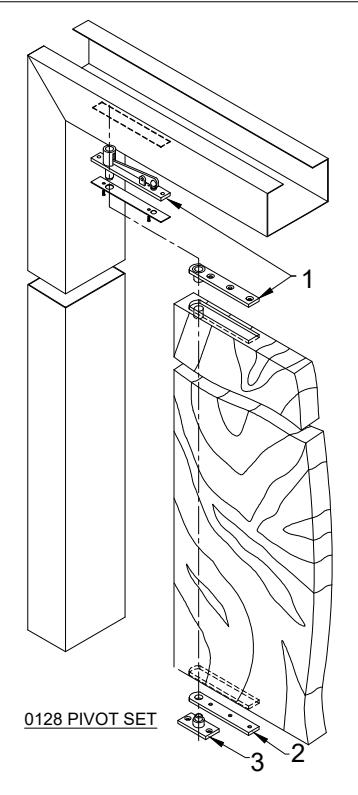

0128 Pivot Set
For Steel or Wood doors up to 42" wide x 102" height & weighing up to 250 lb.
| 1 | 0320 | Top pivot |
|---|---|---|
| 2 | 0128 | Bottom Leaf on Finished Floor |
| 3 | Door Leaf - Bottom | |
Non Handed

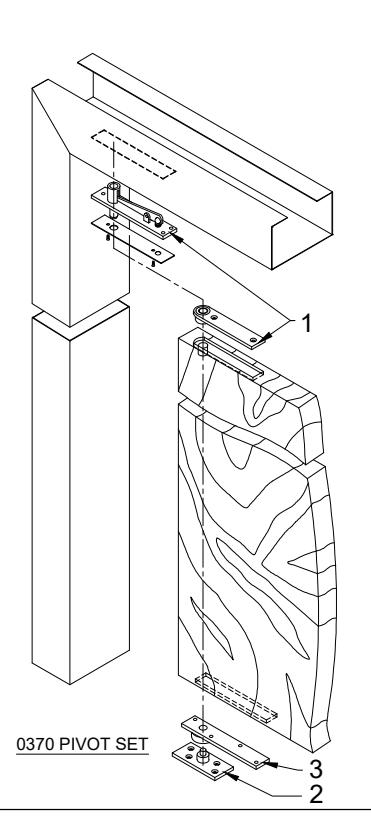

0370 Pivot Set
For Steel or Wood doors up to 44" wide x 102"* height & weighing up to 500 lb.
| 102 Height & Weighing up to 000 lb. | |||
|---|---|---|---|
| 1 | 0340 | Top pivot | |
| 2 | 0370 | Bottom Leaf on finished floor | |
| 3 | Door Leaf - Bottom | ||
Non Handed
* Door taller than 102" - Use 0345 top pivot in lieu of 0340 top pivot.

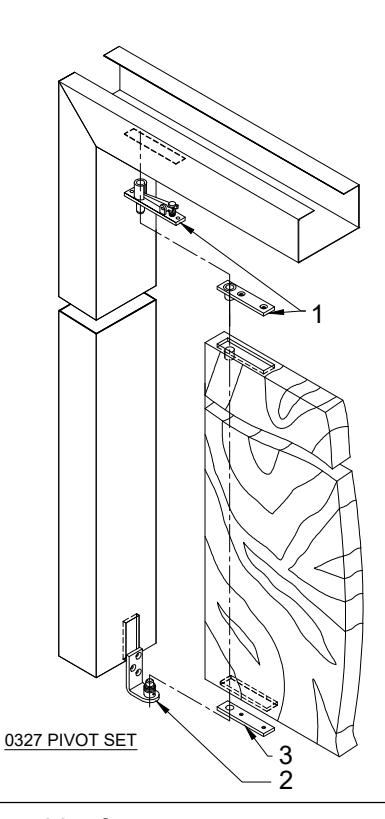

0327 Pivot Set
For Steel or Wood doors up to 42" wide x 96" height & weighing up to 135 lb.
| 1 | 0321 | Top pivot |
| 2 | 0327 | Bottom Leaf into side jamb |
| 3 | Door Leaf - Bottom | |
Non Handed
R www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
CENTER HUNG PIVOT CONFIGURATION.DWG
PIVOT CONFIGURATION CENTER HUNG (0127,0128,0370,0327)
© 2018 ABH Mfg., Inc. printed in USA
ISSUED 05/01/18
CENTER HUNG PIVOT SET - SINGLE or DOUBLE ACTING

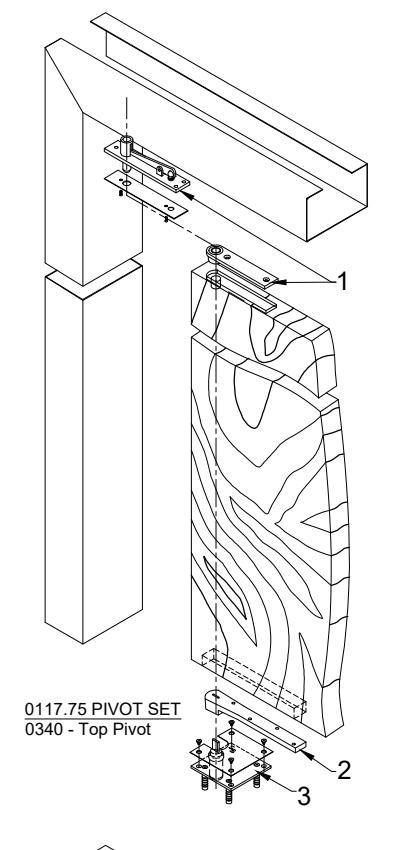

0117.75 Pivot Set
For Steel or Wood doors up to 48" wide x 102" * ht. or taller & weighing up to 600 lb.
| 1 | 0340 | Top pivot |
|---|---|---|
| 2 | 0117.75 | Bottom Door Leaf |
| 3 | Floor Bearing | |
| S.S. (Heavy Duty) |
Non Handed
* Door taller than 102" Use 0345 Top pivot

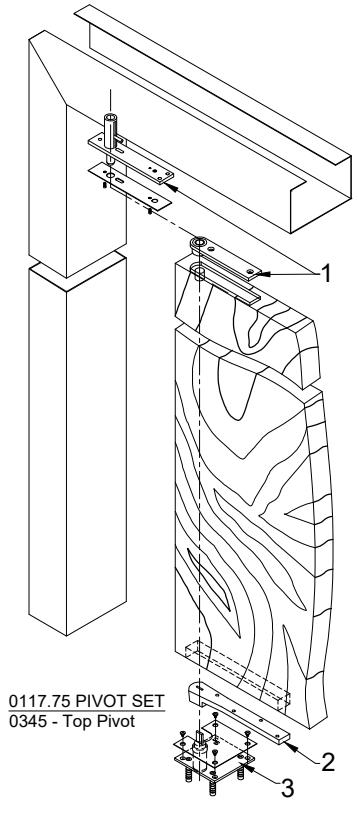

0117.75 Pivot Set
For Steel or Wood doors up to 48" wide x 102" ht. or taller & weighing up to 600 lb.
| 1 | 0345 | Top pivot |
|---|---|---|
| 2 | 0117.75 | Bottom Door Leaf |
| 3 | Floor Bearing | |
| S.S. (Heavy Duty) |
Non Handed

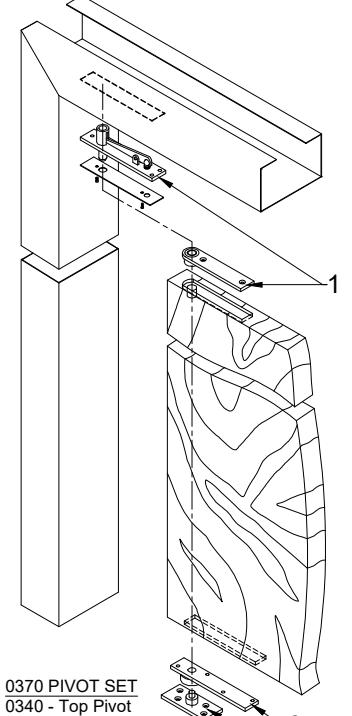

0370 Pivot Set (0340 top pivot)
For Steel or Wood doors up to 44" wide x 102"* height & weighing up to 500 lb.
| roz moight a troighing ap to ooc is. | |||
|---|---|---|---|
| 1 | 0340 | Top pivot | |
| 2 | 0370 | Bottom Leaf on finished floor | |
| 3 | Door Leaf - Bottom | ||
Non Handed
* Door taller than 102" - Use 0345 top pivot in lieu of 0340 top pivot.

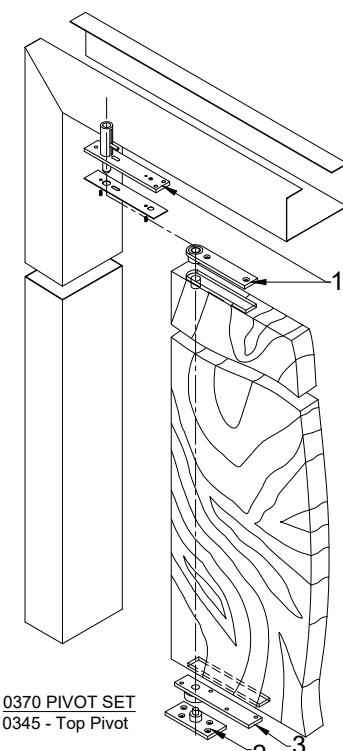

0370 Pivot Set (0345 top pivot)
For Steel or Wood doors up to 44" wide x 102" ht. or taller & weighing up to 500 lb.
| 1 | 0345 | Top pivot |
|---|---|---|
| 2 | 0370 | Bottom Le |
2 0370 Bottom Leaf on finished floor 3 Door Leaf - Bottom
Non Handed
® www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
CENTER HUNG PIVOT CONFIGURATION.DWG
PIVOT CONFIGURATION CENTER HUNG (0117.75, 0370, 0340, 0345)
© 2018 ABH Mfg., Inc. printed in USA
ISSUED PAGE 4 OF 6 05/01/18
POCKET PIVOT SET - SINGLE ACTING

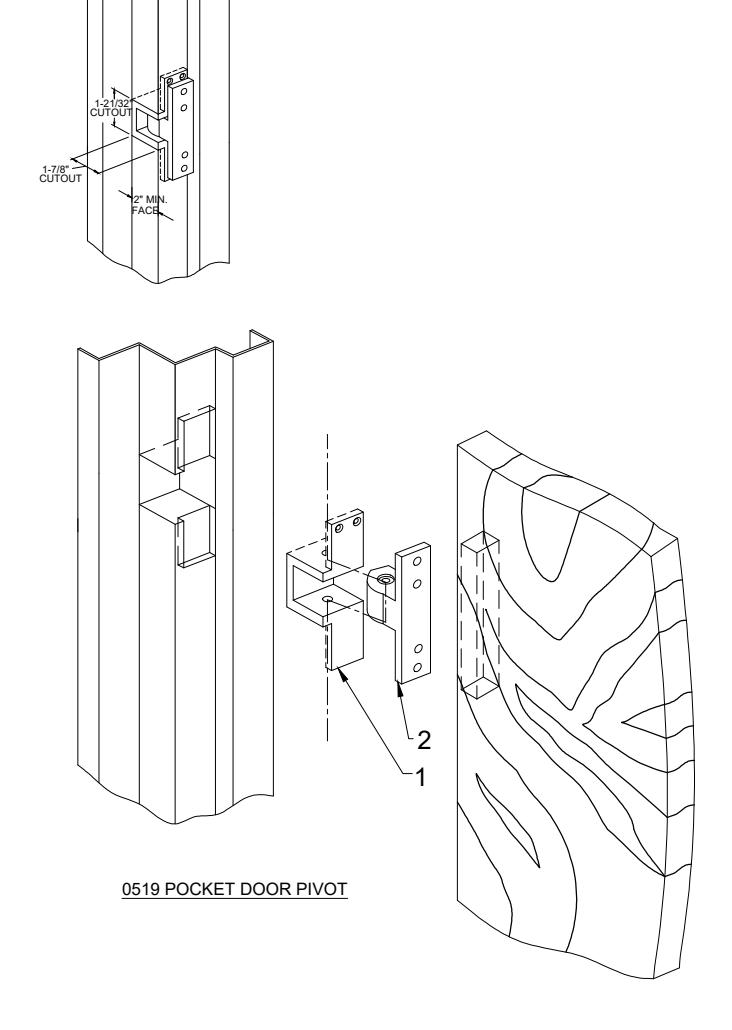

0519 Pocket Door Pivot
For max. 3 Pocket Pivots per door up to 60" - 90" Tall
Add one pocket pivot for each add'l 30" door height
Max. door load per Pivot - 90 lb.
Max. door swing - 90°
Pivot point is located inside the frame Allows door to swing into a pocket in the
frame at a right angle
1 0519 Frame Portion
2 0519 Door Portion
Non-Handed
R www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
POCKET PIVOT CONFIGURATION.DWG
PIVOT CONFIGURATION 0519 POCKET PIVOT
©2018 ABH Mfg., Inc. printed in USA
PAGE 5 OF 6 05/01/18

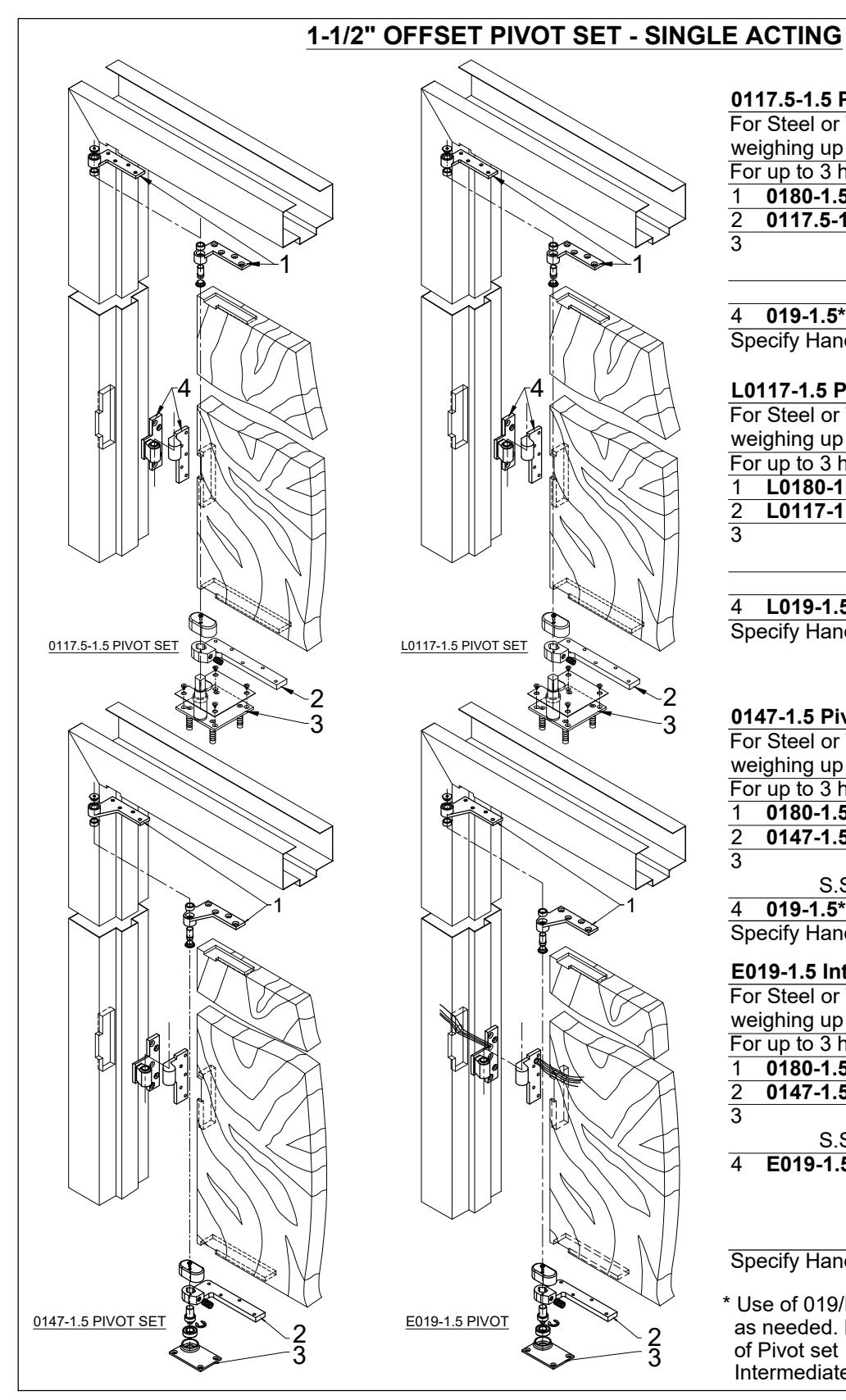

0117.5-1.5 Pivot Set
For Steel or Wood doors up to 48" wide & weighing up to 450 lbs.
For up to 3 hours fire rated door-standard
0180-1.5 Top pivot
0117.5-1.5 Door Leaf into door, S.S.
3 Floor, mortise cement case mount
S.S.(heavy duty)
019-1.5* Intermediate Pivot (req'd.)
Specify Handing - LH or RH
L0117-1.5 Pivot Set
For Steel or Wood doors up to 48" wide & weighing up to 500 lbs.
For up to 3 hours fire rated door-standard
L0180-1.5 Top pivot
L0117-1.5 Door Leaf into door,S.S.
Floor, mortise cement case mount S.S.(heavy duty)
L019-1.5* Intermediate Pivot(req'd.)
Specify Handing - LH or RH
0147-1.5 Pivot Set
For Steel or Wood doors up to 48" wide & weighing up to 350 lb.
For up to 3 hours fire rated door-standard
0180-1.5 Top pivot
0147-1.5 Door Leaf into door, S.S.
Bottom Leaf on Floor
S.S.(heavy duty needle bearing)
019-1.5* Intermediate Pivot(required) Specify Handing - LH or RH
E019-1.5 Intermediate Pivot
For Steel or Wood doors up to 48" wide & weighing up to 350 lb.
For up to 3 hours fire rated door-standard
0180-1.5 Top pivot
0147-1.5 Door Leaf into door, S.S.
Bottom Leaf on Floor
S.S.(heavy duty needle bearing)
E019-1.5 Electrified Intermediate
Pivot (electrical power transfer from frame to door (8) 30 AWG wires)
Specify Handing - LH or RH
printed in USA
* Use of 019/L019 Intermediate Pivot(s) as needed. Door size & Weight Capacity of Pivot set are dependent on use of Intermediate Pivot(s). (order separately)
1-1/2" OFFSET PIVOT CONFIGURATION.DWG
PIVOT CONFIGURATION 1-1/2" OFFSET (0117, 0147, E019) PAGE 6 OF 6 REVISED 7-22-21 © 2021 ABH Mfg., Inc.
