Installation Instructions for all ETH/ETM Models

Applications:

The ETH and ETM hinges are used to pass low voltage power and/or signalling from a door frame to the door in order to power locksets, exit devices and door monitoring devices such as door position switches, request-to-exit switches, etc. ETM (Energy Transfer Monitor) hinges additionally provide a door position sensor in the hinge itself. The quantity and required gauge of wire depends on the hardware being used and the general purpose of the application.

Door Preparation:

The wire chase should be drilled with a 3/8" drill bit at the point noted on the hinge template. The ETH/ETM hinge should always be positioned as one of the center hinges on the door, since the modified hinge no longer meets manufacturers load bearing specifications. A starter hole of 3/4" Diameter x 1- 1/2" deep is recommended for positioning the hinge wire (see note #1).

Frame Preparation:

Mark and drill hole to receive the wires from the ETH hinge (see note #1).

Warnings:

• 1. Be careful not to pinch wires when securing the hinge.
• 2. Do not allow the hinge to dangle by the wire during installation.

Notes:

• 1. In fire rated conditions be sure to confirm the maximum starter hole diameter and depth with the appropriate testing agency.
• 2. Steel based hinges are for interior use only. Use stainless steel or brass based hinges for exterior installations

Monitor Adjustment and Specifications (if applicable):

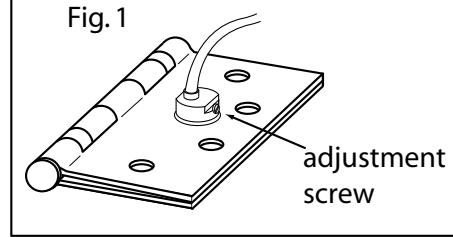

Clockwise wider gap, Counterclockwise narrow gap. (Fig. 1)

Hinge is adjusted with a 1/4'' gap from factory which equates to the door opening 1-1/2'' for a 3' door and 2" for a 4' door before triggering the monitor switch.

Note: Monitor Wire Template is the same as standard template on pg. 2

ETM Wiring Code:

Mechanical Switch Yellow/Black: Magnetic Switch White:

Yellow/Black: White: Common (C) Blue/White: Blue: Normally Open (NO

Blue/White: Blue: Normally Open (NO) Red/White: Black: Normally Closed (NC)

Switch Ratings:

Electrical: 50-100 mA, 30VDC In-rush Current: NC & NO: 0.5 A max

Electrical Specifications (Maximum Continuous rating):

			Command Access Monitor Mo
Command Access Model		in in	Mills	15		ETM	I - |		- |	-
	ETH2W	2	20	4.0	16.0	ETM2W	2	20	4.0	16.0
	ETH4W - ETH6W	4-6	26	1.0	N/A	ETM4W - ETM6W	4-6	26	1.0	N/A
	ETH8W - ETH12W	8-12	28	1.0	N/A	ETM8W - ETM12W	8-12	28	1.0	N/A
	ETH2WH	2	18	5.0	16.0	ETM2WH	1 2	18	5.0	16.0
	ETH4WH - ETH6WH	2	18	5.0	16.0	ETM4WH - ETM6WH	2	18	5.0	16.0
		2-4	26	1.0	N/A	ETW4WH - ETWOWF	2-4	26	1.0	N/A
	ETH8WH - ETH12WH	2	20	4.0	16.0	ETM8WH	2	20	4.0	16.0
		6-10	28	1.0	N/A	ETIVIOVVI	6	28	1.0	N/A

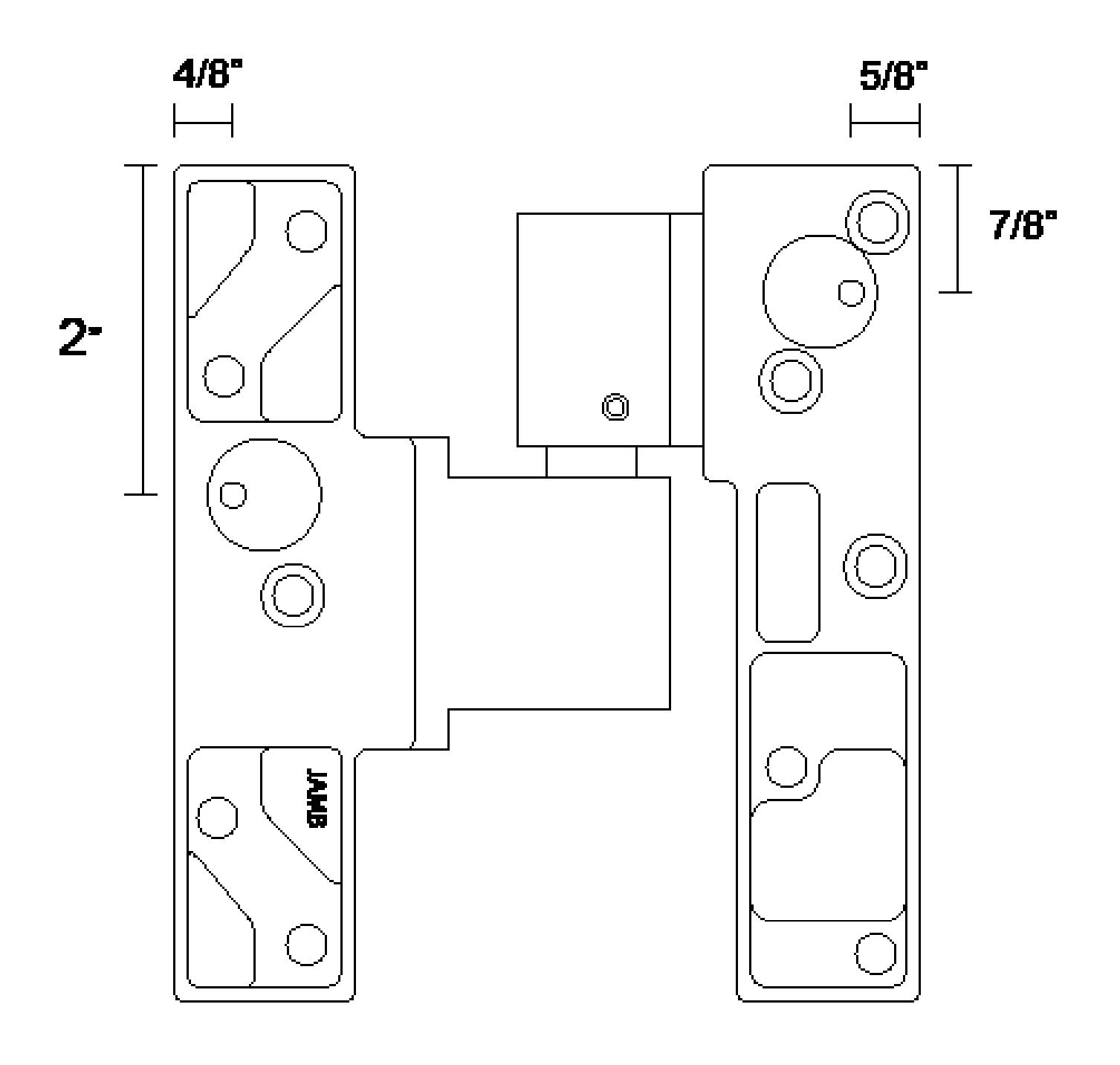

Pivot Template
