HINGES & POWER TRANSFER

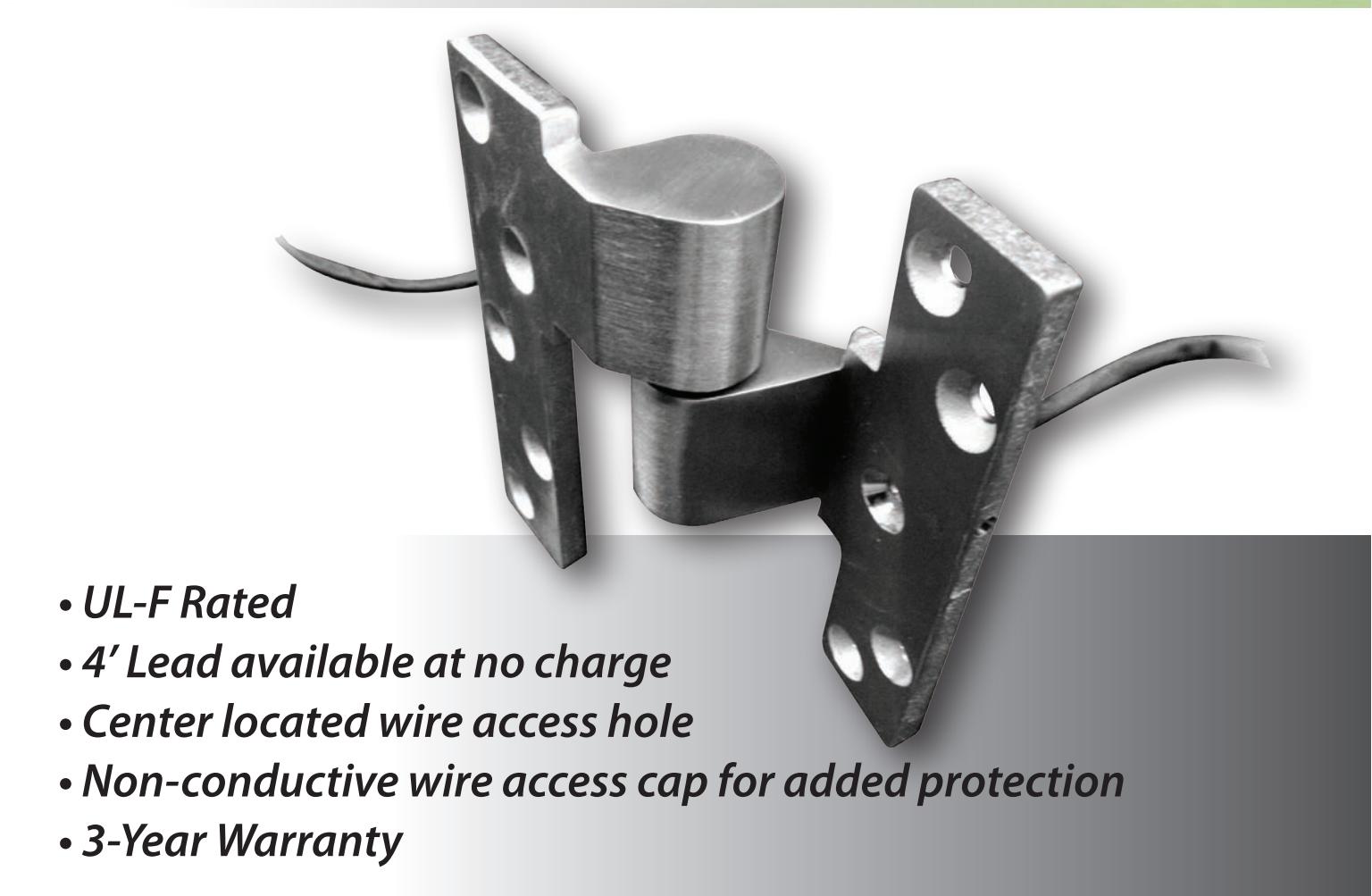

Command Access Energy Transfer Pivot Hinge

Quality, selection & pricing second to none

The Energy Transfer Pivot Hinge is available in the same wire configurations as the butt hinges. It's a great way to pass power from the hinge jamb to the door and have no exposed wires or cords. We maintain an inventory of our own Command Access intermediate pivot hinge. We also modify other manufacturers pivots if sent to us.

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

HINGES & POWER TRANSFER

Command Access Energy Transfer Pivot Hinge

Configurations Available: Molex Connectors available

• ETH2W 2 Wire (20 gauge) 4A@24V (per pair)
• ETH4W 4 Wire (26 gauge) 1A@24V (per pair)
• ETH6W 6 Wire (26 gauge) 1A@24V (per pair)
• ETH8W 8 Wire (28 gauge) 1A@24V (per pair)
• ETH1OW 10 Wire (28 gauge) 1A@24V (per pair)

Configurations Available for Electric Latch Retraction: Molex Connectors not available with heavy gauge wires

• ETH2WH 2 Wire (18 gauge)
• ETH4WH 2 Wire (18 gauge) + 2 Wire (26 gauge)
• ETH6WH 2 Wire (18 gauge) + 4 Wire (28 gauge)
• ETH8WH 2 Wire (18 gauge) + 6 Wire (28 gauge)

Note:

All hinges are made to Command Access standardized templating unless otherwise requested

Model No.	Notes:
Customer:	Job No./Name:	Date:	Provided by:
