CENTER HUNG PIVOT SET - SINGLE or DOUBLE ACTING

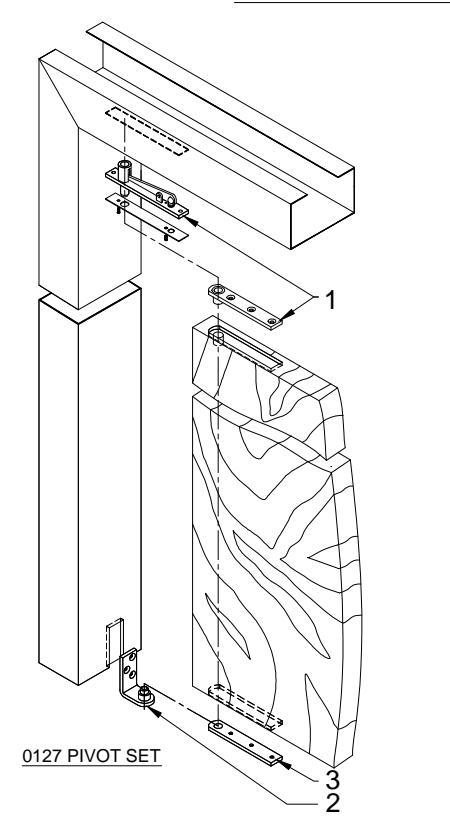

0127 Pivot Set

For doors up to 42" wide x 102" height & weighing up to 200 lb.

1	0320	Top pivot
2	0127	Bottom Leaf into side jamb
3		Door Leaf - Bottom

Non Handed

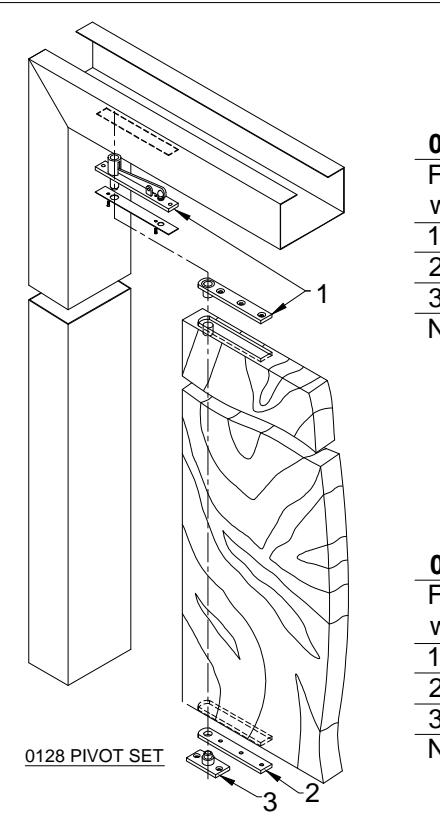

0128 Pivot Set

For doors up to 42" wide x 102" height & weighing up to 250 lb.

1	0320	Top pivot
2	0128	Bottom Leaf on Finished Floor
3		Door Leaf - Bottom

Non Handed

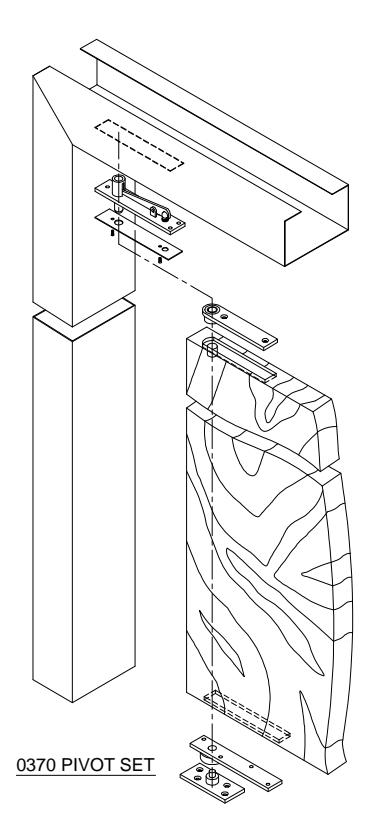

0370 Pivot Set

For doors up to 44" wide x 102" height & weighing up to 500 lb.

1 0340	Top pivot
2 0370	Bottom Leaf on finished floor
3	Door Leaf - Bottom

Non Handed

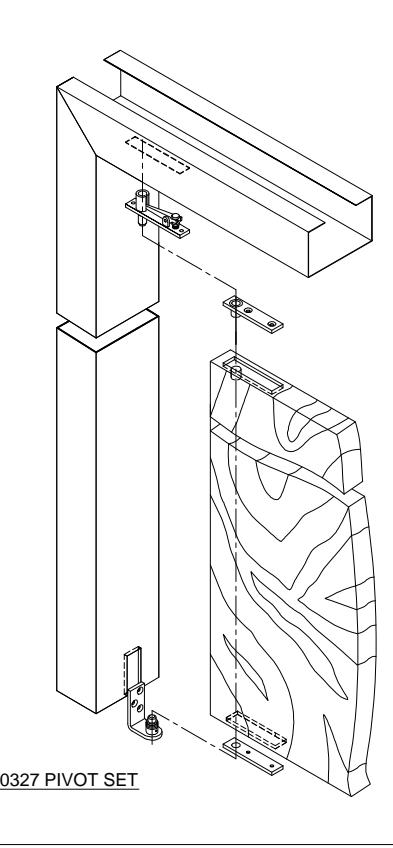

0327 Pivot Set

For doors up to 42" wide x 96" height & weighing up to 135 lb.

1	0321	Top pivot

2	0327	Bottom Leaf into side jamb
3		Door Leaf - Bottom

Non Handed
