Pin & Barrel Concealed Continuous Hinges Template
Open the original PDF document
View PDF

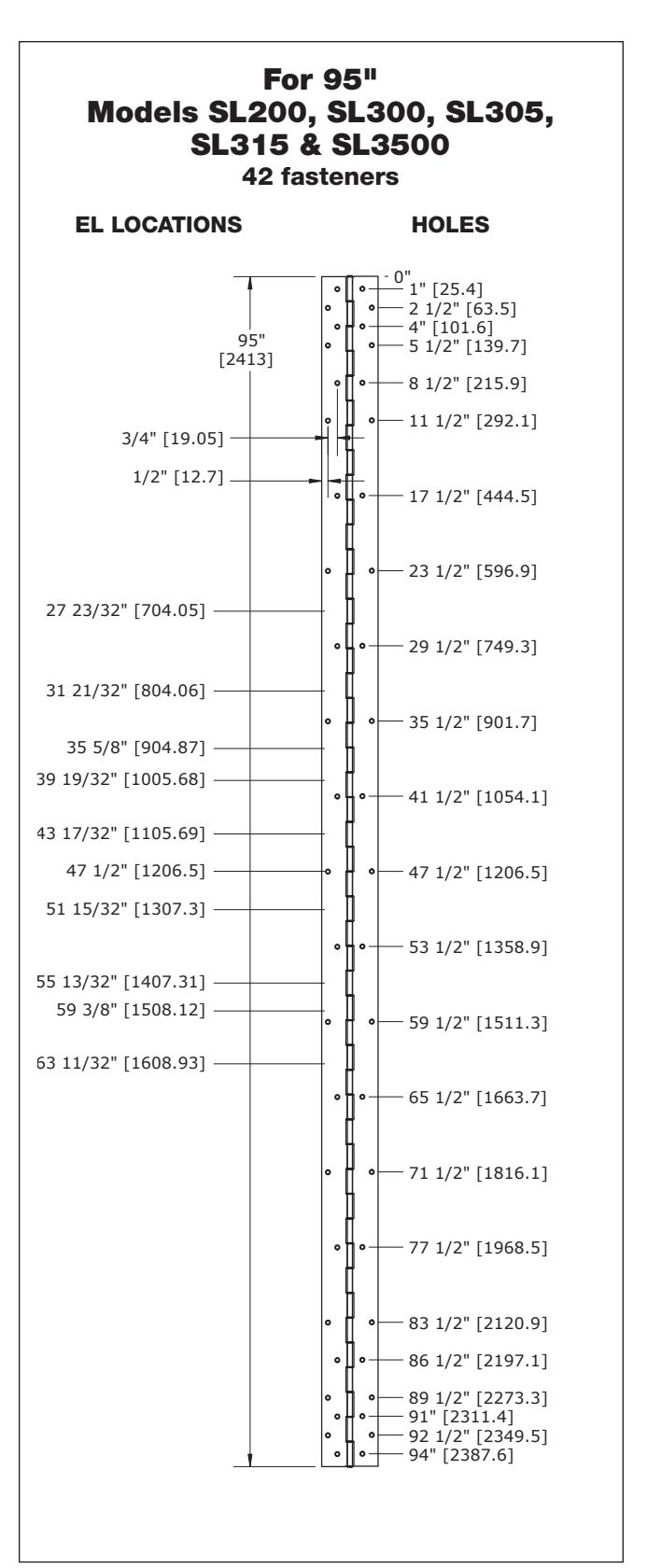

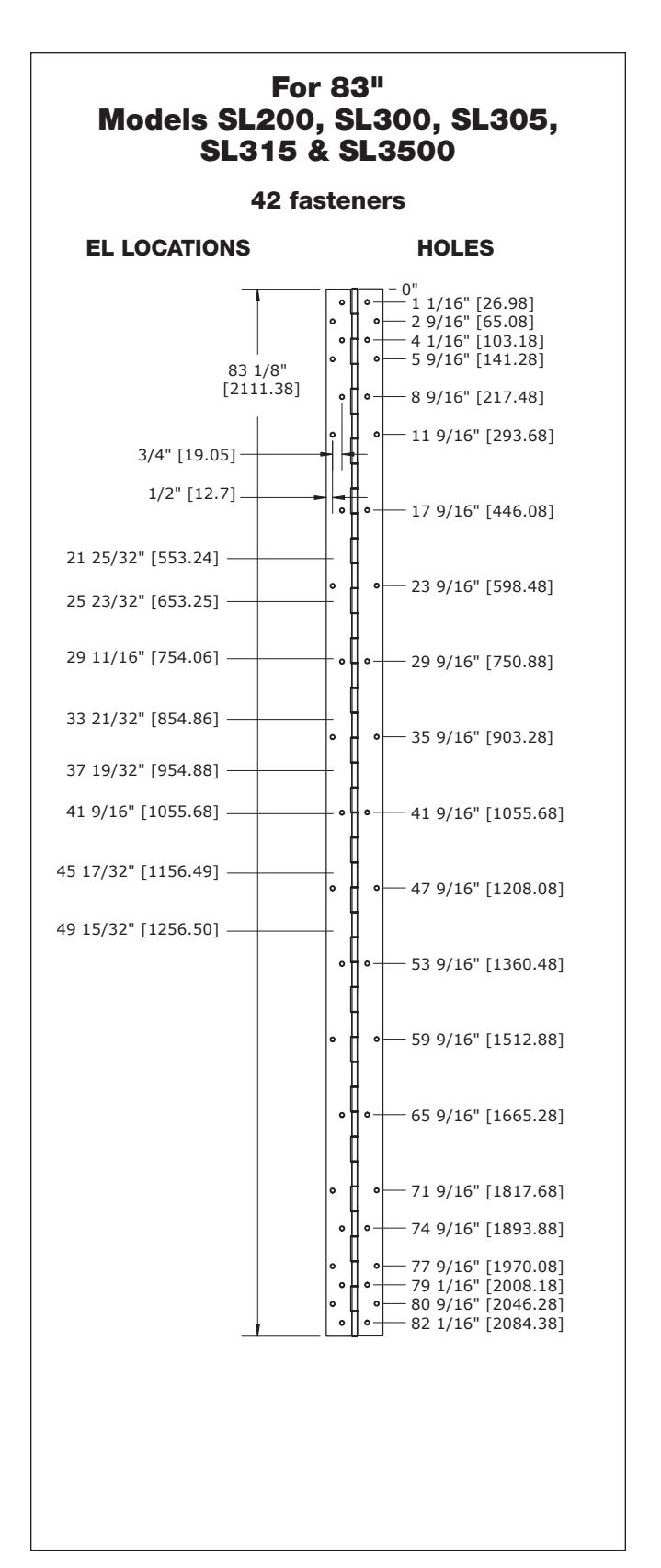

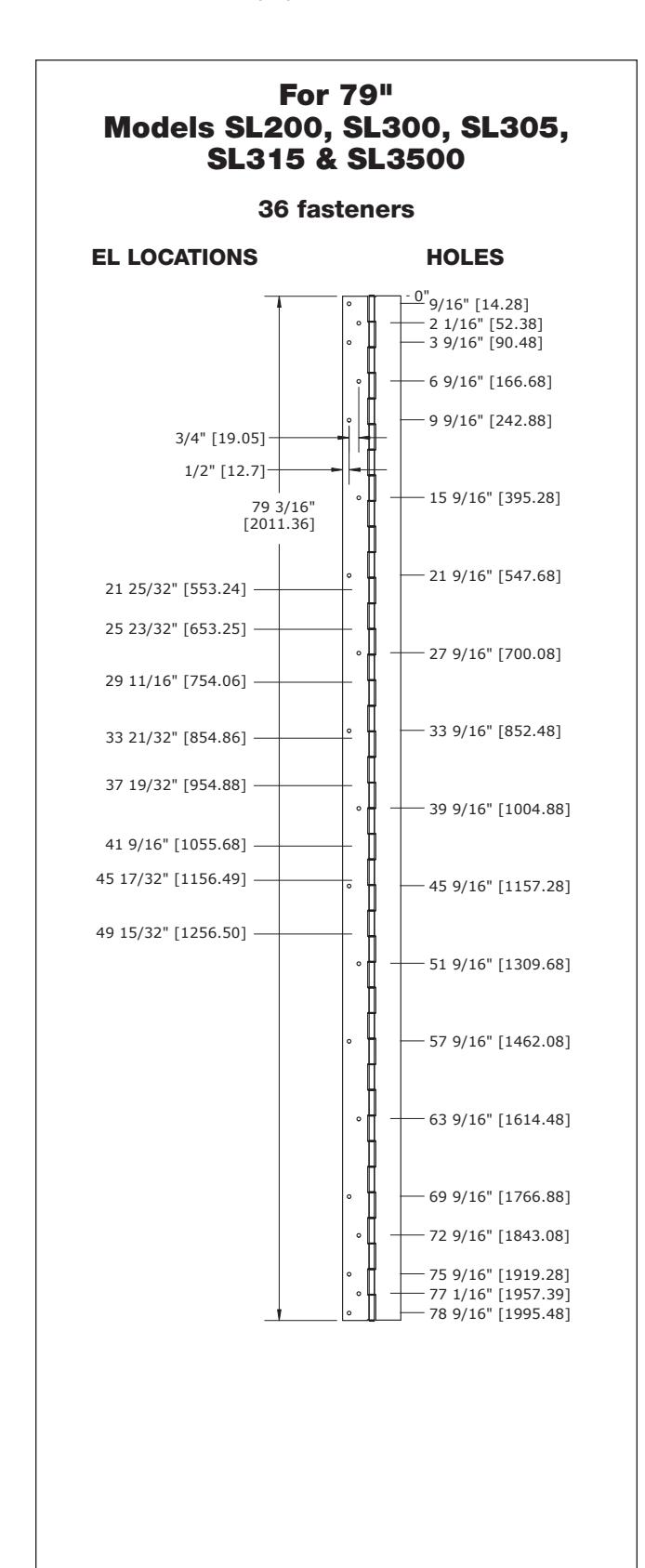

TEMPLATES Concealed Pin & Barrel Hinges
- All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
- Choose location for EL prep from locations dimensioned.

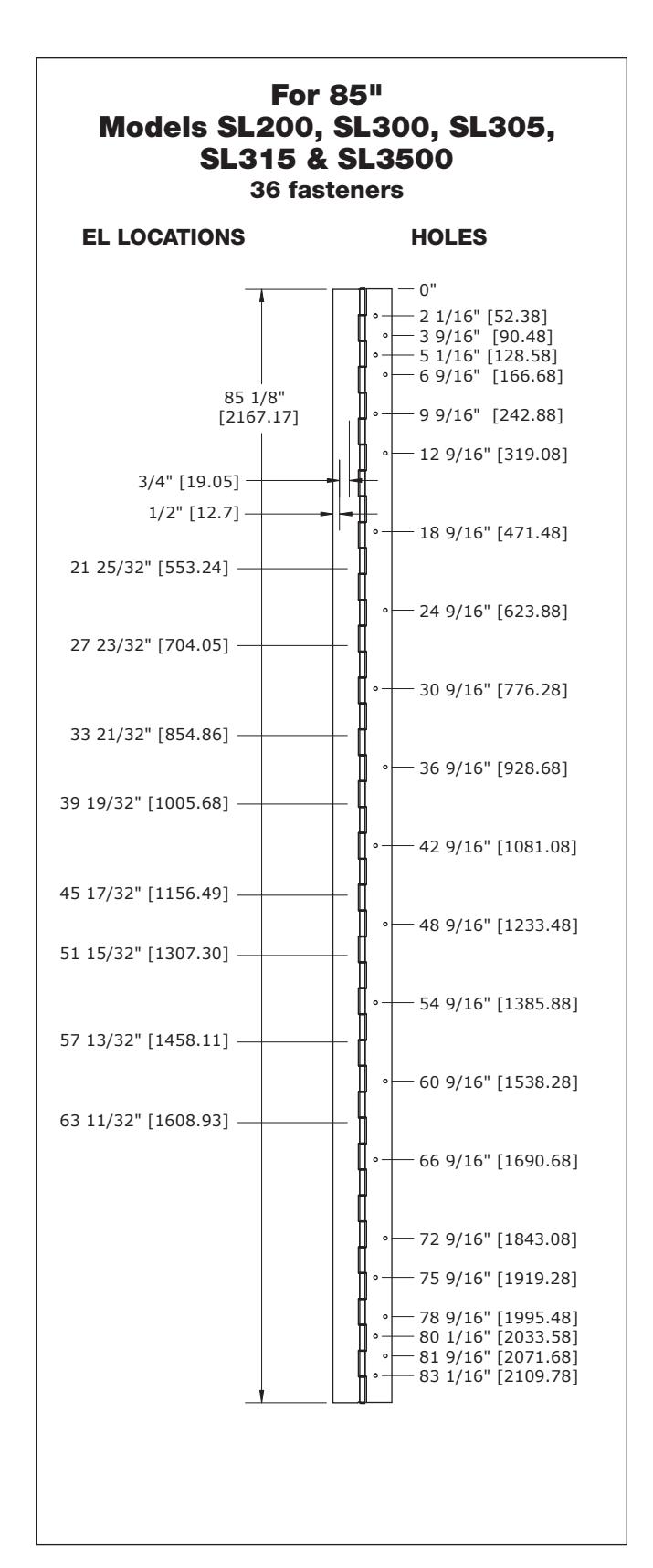

TEMPLATES Concealed Pin & Barrel Hinges
- All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
- Choose location for EL prep from locations dimensioned.

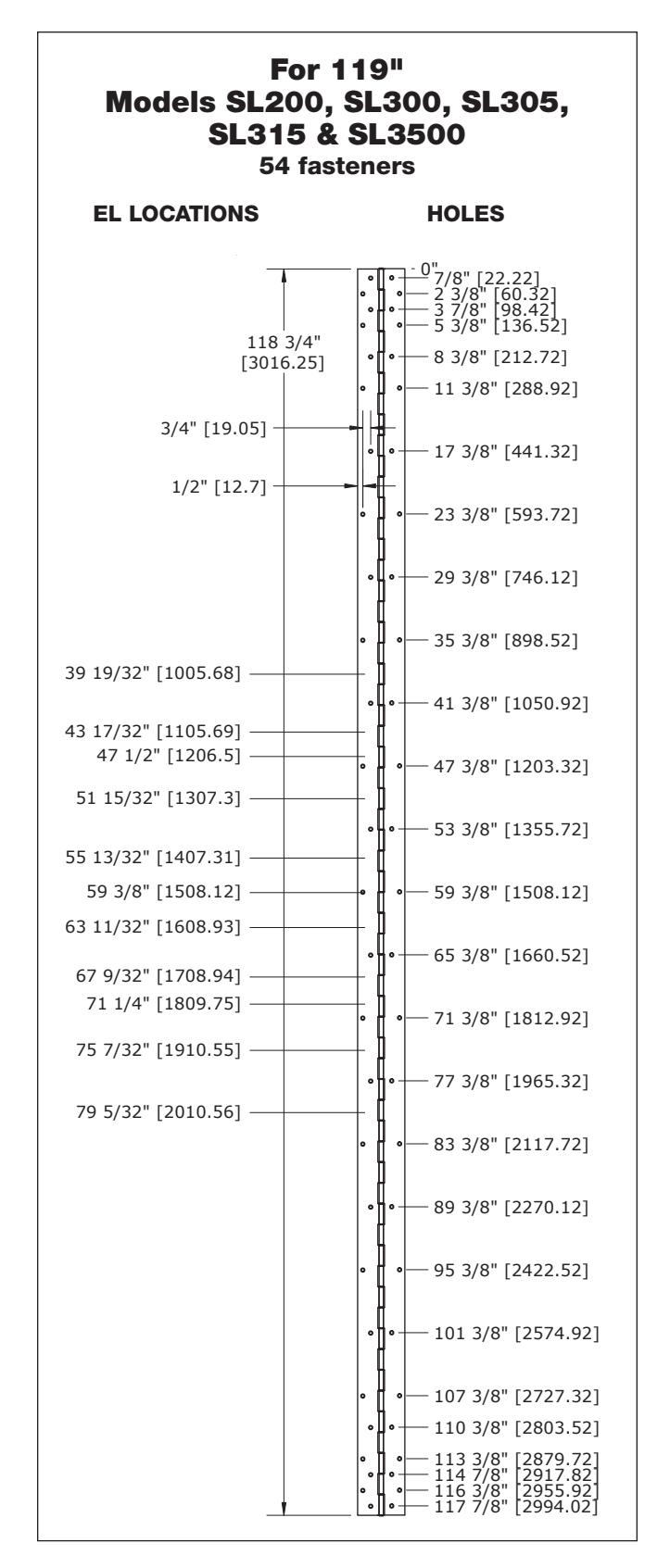

TEMPLATES Concealed Pin & Barrel Hinges
- All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
- Choose location for EL prep from locations dimensioned.
