Reliant 5000 Series: Wide Stile Exit Device

Reliable value and performance.

PRECISION's Reliant 5000 Series—a heavy-duty, BHMA A156.3 Grade 1, wide stile exit device designed to fit standard 161 door prep—delivers reliable security at a strong value. Available with a variety of trim styles and functions and with durable powder coat finishes, the Reliant 5000 Series serves durably in retail, hospitality, multi-family, and commercial applications.

A dependable solution for wide stile doors.

The Reliant 5000 Series delivers heavy-duty, BHMA A156.3 Grade 1 performance with field-reversible handing and flexible options for glass, vision lite, and other wide stile applications.

PRECISION Reliant 5000 Series Specifications
Certifications	BHMA A156.3 Grade 1 Listed ANSI A117.1 Accessibility Code (ADA) compliant UL/cUL 10C 3-hour Fire Listed UL/cUL 305 Listed California State Fire Marshal (California Title 24) compliant BAA and TAA compliant Illinois Accessibility Standard compliant
Materials	Chassis: stainless steel Active case cover and end cap: high impact thermoplastic Active case: stainless steel Touchbar sub-assembly: heavy wrought steel, zinc dichromated Touchbar assembly: heavy wrought steel, powder coated Strikes: investment cast stainless steel Latchbolt: stainless steel, deadlocking, 3/4" throw Vertical rods: steel, powder coated Bottom bolt: steel plated
Door Dimensions	Prep: standard type 161 Thickness: 1 3/4" -2 1/4" standard Height: 6'8" – 10' (SVR) Width: 3' – 4'
Device Types	Rim Surface Vertical Rod

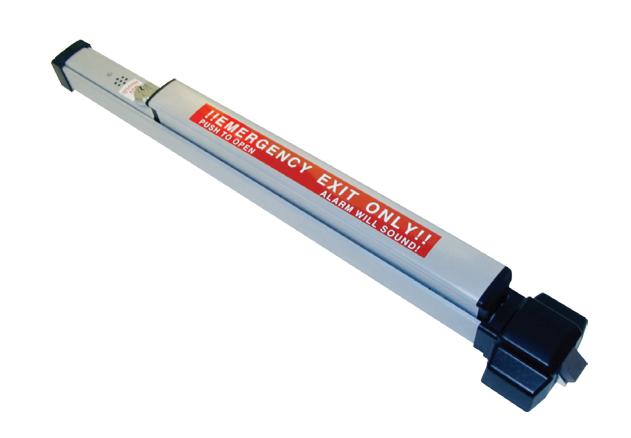

Electrified Options	TS: Touch Bar Monitoring Switch ALK: Battery Powered Alarm ALW: Hardwired Alarm WTS: Weatherized Touchbar Switch
Trim and Lever Styles	Levers handed, but field reversible, specify when ordering 808A and 814A lever trims available Trims bolted for 161 cutouts 822 and 811 Series mullions available
Finishes	689: Aluminum Powder Coat 695: Dark Bronze Powder Coat
Warranties	5-year mechanical 1-year electrical

Reliant 5000 Series Features and Benefits

• • Tested security. The Reliant 5000 Series is built to ANSI Grade 1 standards, for proven security you can trust.
• Easy installation. Reliant 5000 Series exit devices allow for installation on doors that are not completely flat or when vision lites or glass project beyond the door. The Reliant 5000 Series mounts directly on the face of the door, so it doesn't require shims, cutting glass molding, or specially sized hardware and components to install.
• Flexible options. The Reliant 5000 Series is field reversible, and available in a variety of customization options, including exit alarm standard or weatherized—kits, cylinder dogging, and touchbar monitoring.
• Reliable results. With heavy-duty construction, the Reliant 5000 delivers durable results even in high traffic applications. Sound dampeners reduce operational noise, and rugged finish options ensure long-lasting wear.

Featured Finishes

PRECISION Reliant 5000 Series Exit Devices deliver reliable performance at a sound value for standard wide stile doors.

AVAILABLE EXIT TRIMS

501 602 603 702A 703A 808A 814A
