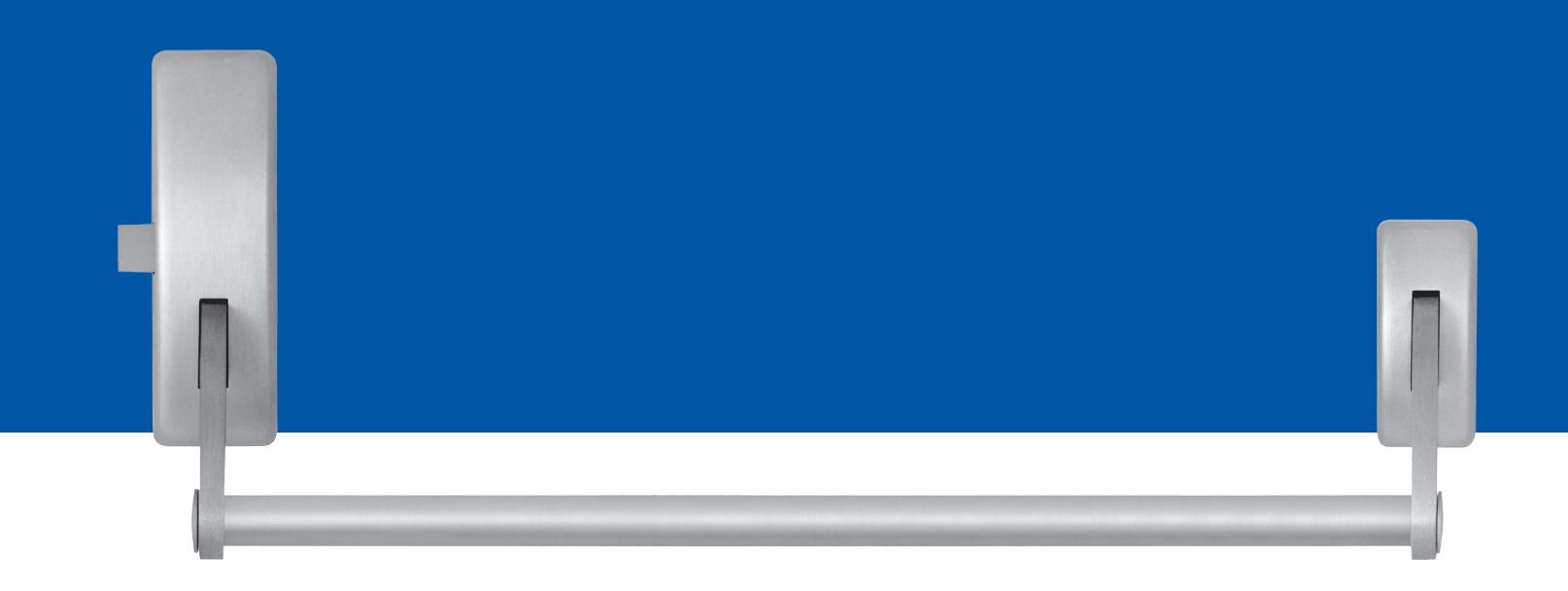

Olympian Series: Crossbar Exit Device

Traditional aesthetics. Proven durability.

The Olympian Series combines architectural appeal with the strength and reliability you expect from PRECISION. These heavy-duty, BHMA A156.3 Grade 1, crossbar-style exit devices are ideal for glass door, existing crossbar, and historical applications where aesthetics are equally important with security and performance. Top-grade materials and architectural finishes ensure the beauty and durability of PRECISION's Olympian Series Exit Devices.

Combining aesthetics with performance.

The Olympian Series incorporates reliable security and durability with a pleasing aesthetic compatible with any setting.

PRECISION Olympian Series Specifications
Certifications	BHMA A156.3 Grade 1 Listed ANSI A117.1 Accessibility Code (ADA) compliant UL/cUL 10C 3-hour Fire Listed UL/cUL 305 Listed California State Fire Marshal (California Title 24) compliant BAA and TAA compliant Illinois Accessibility Standard compliant
Materials	Chassis cover: cold drawn bronze, brass, stainless steel Chassis: investment cast steel, zinc dichromated Arms: forged brass or bronze Crossbar: bronze, brass, or stainless steel tubing (knurled and reinforced crossbars available) Strikes: investment cast stainless steel Vertical rods: brass, bronze, or stainless steel Lock front plate: bronze, brass, or stainless steel Latchbolt: stainless steel, 3/4" throw Guardbolt: stainless steel, sliding
Door Dimensions	Thickness: 1 3/4" – 2 1/4" standard Height: 6'8" – 10' (200 Series) Width: 3' – 4'
Device Types	Rim (100 Series) Surface Vertical Rod (200 Series) Mortise (300 Series)
Trim and Lever Styles	Vandal Resistant Lever, Knob, and Pull Trims A, B, C, or D lever styles, standard 822 Series Mullions 811 Series Mullions
Finishes	605: Polished Brass, Clear Coated 606: Satin Brass, Clear Coated 612: Satin Bronze, Clear Coated 613: Dark Oxidized Satin Bronze 625: Polished Chromium Plated 630: Satin Stainless Steel
Warranties	5-year mechanical

Olympian Series Features and Benefits

• • Proven security. The Olympian Series is built to ANSI Grade 1 standards, for tried and tested security you can trust.
• Heavy-duty construction. An investment cast chassis and uncompromised materials ensure premium protection and performance.
• Traditional appearance. A range of architectural finishes and traditional design deliver security in an aesthetically pleasing form.
• Flexible installation. The Olympian Series active case mounting holes align with PRECISION's APEX 2000, allowing the two systems to seamlessly integrate for greater flexibility. Please specify desired handing when ordering.

Featured Finishes

Bronze

Steel

Designed to fit beautifully into any architectural aesthetic while delivering the durability and performance you expect from PRECISION, the Olympian Series provides the ideal form and function for glass door and historical applications.

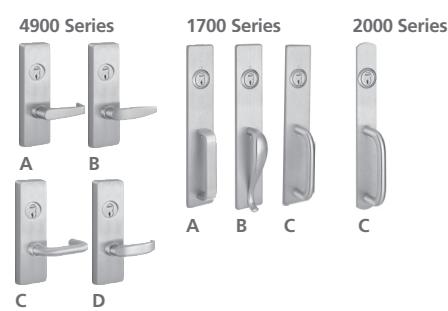

AVAILABLE EXIT TRIMS
