Pemko Threshold with Flexible Joint Brochure
Open the original PDF document
View PDFArchitectural Door Accessories

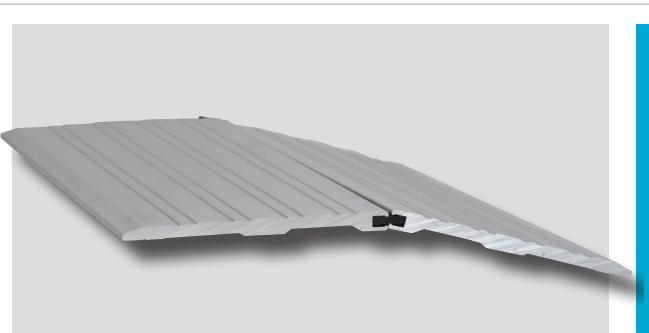

Threshold with Flexible Joint
Threshold Flexes or Expands for a Variety of Uses
The Pemko 573x5_FG threshold is a commercial threshold with a flexible joint. The flexible joint allows the threshold to flex as much as 20 degrees up or down, or to expand up to an additional 1/4". Ideal applications include uneven floor surfaces or building components that expand and contract, or move slightly, such as a floating ramp or an expansion joint.
The flexible joint is made from a thermoplastic elastomer that adds an additional benefit as a thermal barrier. A thermal barrier threshold doesn't allow heat to be transferred from one side of the threshold to the other, which would normally cause condensation.
| Features | Benefits |
|---|---|
| Flexible joint flexes the threshold 20° up or down |
Suitable for uneven or floors that expand and
contract slightly |
| Thermally broken threshold | Prevents temperature transfer and condensation |
| Low profile for ADA compliance | Enables easy access to facility |
| 6063-T6 aircraft aluminum | Durable & long lasting |
Applications:
- Office Buildings
- Healthcare Facilities
- Public Buildings
- Retail
- Special Applications
Copyright © 2015-2019, ASSA ABLOY Accessories and Door Controls Group, Inc.
Available Products

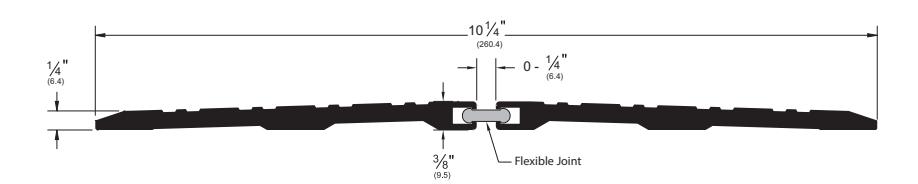

| Part Number | Length | Finishes |
|---|---|---|
| 573x5AFG | 10" to 101/4" | Mill Finish Aluminum |
| 573x5DFG | 10" to 101/4" | Dark Bronze Anodized Aluminum |

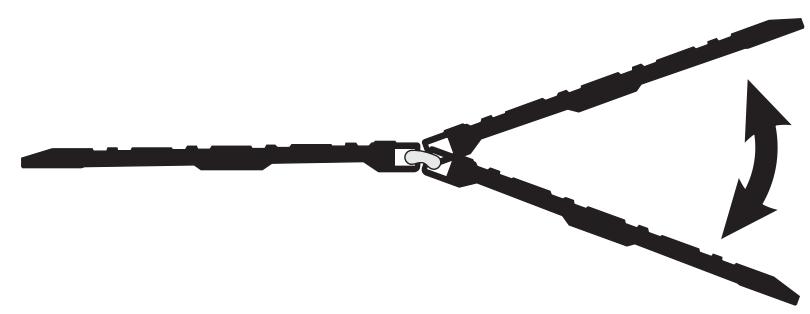

The 573x5 threshold flexes +/- 20° to allow for expansion or contraction of building materials
Technical Specifications:
Material:
6063-T6 Aircraft Aluminum
Insert Material:
Black PemkoPrene®
Finishes:
Mill Finish, Dark Bronze Anodized
Fasteners:
#10 x 1" Sheet metal screws
ADA Compliance: Meets the barrier free requirements of ICC/ANSI A117.1-2009 and ADAAG-2010 (amended), when used the slope is not steeper than 1:2, and the overall height is 1/2" or less, and all other applicable criteria are met.
GreenGuard Gold Certification: Meets the product certification requirements for low chemical emissions of UL 2818 to Gold status.
For more information about GREENGUARD and GREENGUARD Gold certification, visit www.ul.com/gg.
* When used in such a manner that the slope is not steeper than 1:2, and the overall height is 1/2" or less and all other criteria are met.
ASSA ABLOY is a member of the USGBC and CaGBC U.S. Green Building Council logo is a trademark owned by the U.S. Green Building Council and is used with permission.
