View PDFArchitectural Door Accessories
Pemko Thermal Barrier Latch Track Saddles
Energy Efficient and ADA Compliant
Pemko Aluminum Thermal Barrier Latch Track Saddles provide energy savings and comply with ADA requirements.
The Thermal Barrier Latch Track Saddle helps reduce the transfer of temperature through the threshold, thereby saving on heating and cooling costs. Using both a rigid polypropylene thermal break and a gasket provides two different barriers to prevent or minimize the transfer of heat and cold. This is ideal for exterior door openings as well as cold storage rooms.
With a maximum height of 1/2", these latch track saddles are also specially designed to meet ADA Accessibility Guidelines for Buildings and Facilities and the ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities standards.
Available in 4 width options and 3 options for gasket inserts, the Thermal Barrier Latch Track Saddles will meet the needs of a variety of applications.
| Features | Benefits |
|---|---|
| Thermal key within threshold | Saves energy year round |
| Height is a maximum ½ inch | Meets ADA Guidelines for Accessibility |
| 6063-T6 aircraft aluminum | Durable & long lasting |
Applications:
- Healthcare Facilities
- Schools
- Public Buildings
- Retail
- Food Service
ASSA ABLOY Accessories and Door Controls Group, Inc.
Energy Saving and Accessible Solutions
Pemko has many products that save energy, from adhesive gasketing and astragals to door bottoms and thresholds. Pemko can also help meet barrier free needs with modular ramps, floor treads and commercial thresholds.

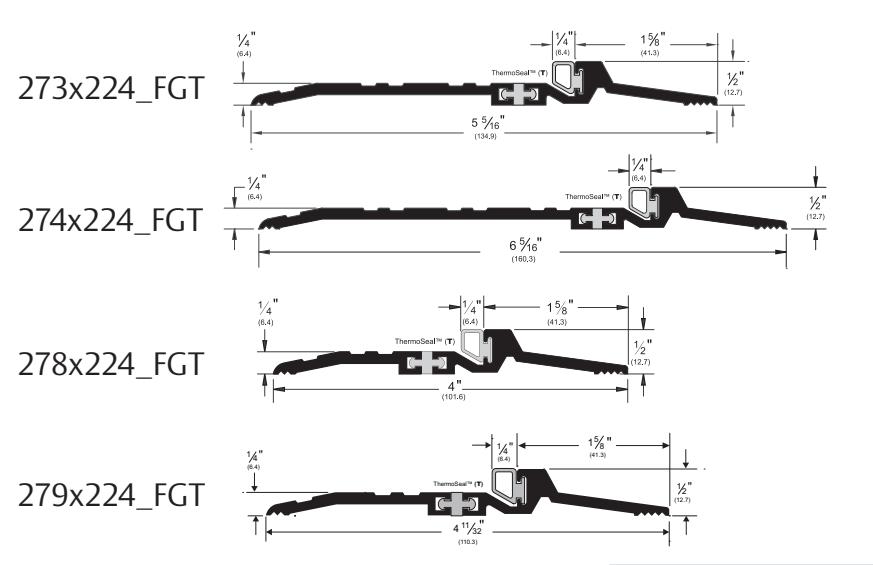

Available Products
| Part number | Width | Finishes |
|---|---|---|
| 273x224_FG_ | 55/16" | Mill Finish Aluminum, Dark Bronze Anodized, Gold Anodized |
| 274x224_FG_ | 65/16" | Mill Finish Aluminum, Dark Bronze Anodized, Gold Anodized |
| 278x224_FG_ | 4" | Mill Finish Aluminum, Dark Bronze Anodized, Gold Anodized |
| 279x224_FG_ | 411/32" | Mill Finish Aluminum, Dark Bronze Anodized, Gold Anodized |
For more information about GREENGUARD and GREENGUARD Gold certification, visit www.ul.com/gg.
ASSA ABLOY is a member of the USGBC and CaGBC. U.S. Green Building Council logo is a trademark owned by theU.S. Green Building Council and is used with permission.
| Alternate | Inserts |
|---|---|
| 273x224_FGP | |
| 274x224_FGP | |
| 278x224_FGP | pi l e ( P ) |
| 279x224_FGP | p.1.0 (1 ) |
| 273x224_FGV | |
| 274x224_FGV | |
| 278x224_FGV | |
| l | Eco-V TM ( ) |
279x224 FGV
Technical Specifications:
Threshold Material: 6063-T6 Aircraft Aluminum
Finishes: Mill Finish Aluminum, Dark Bronze Anodized, Gold Anodized
Thermal Break Material: Black rigid polypropylene
Gasket Material: ThermoSeal<sup>™</sup> (FGT), Eco-V<sup>™</sup> (FGV), or pile (FGP).
Fasteners:
Wood Screws included. Other fastener options are available upon request at an additional charge.
Sound Rated:
Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard $12.60-2010, Acoustical Performance Criteria.
Fire Rated:
Meets UL10C Standard as a Category J gasket.
Smoke Rated:
Meets requirements of UBC 7-2 and UL 1784 Standards and is tested in accordance with NFPA 105 test method.
Air Tested
Air infiltration tested in accordance with ASTM E283-04.
ADA Compliance:
Meets the barrier free requirements of ICC/ANSI A117.1-2009.
ANSI/BHMA:
Meets the requirements of ANSI/BHMA A156.21-2014 Thresholds.
GREENGUARD Gold Certification:
Meets the product certification requirements for low chemical emissions of UL 2818 to Gold Status.
