GLASS WEIGHT

3/8" glass 5.05 lbs./sq. ft. 1/2" glass 6.4 lbs./sq. ft.

PACER GLASS

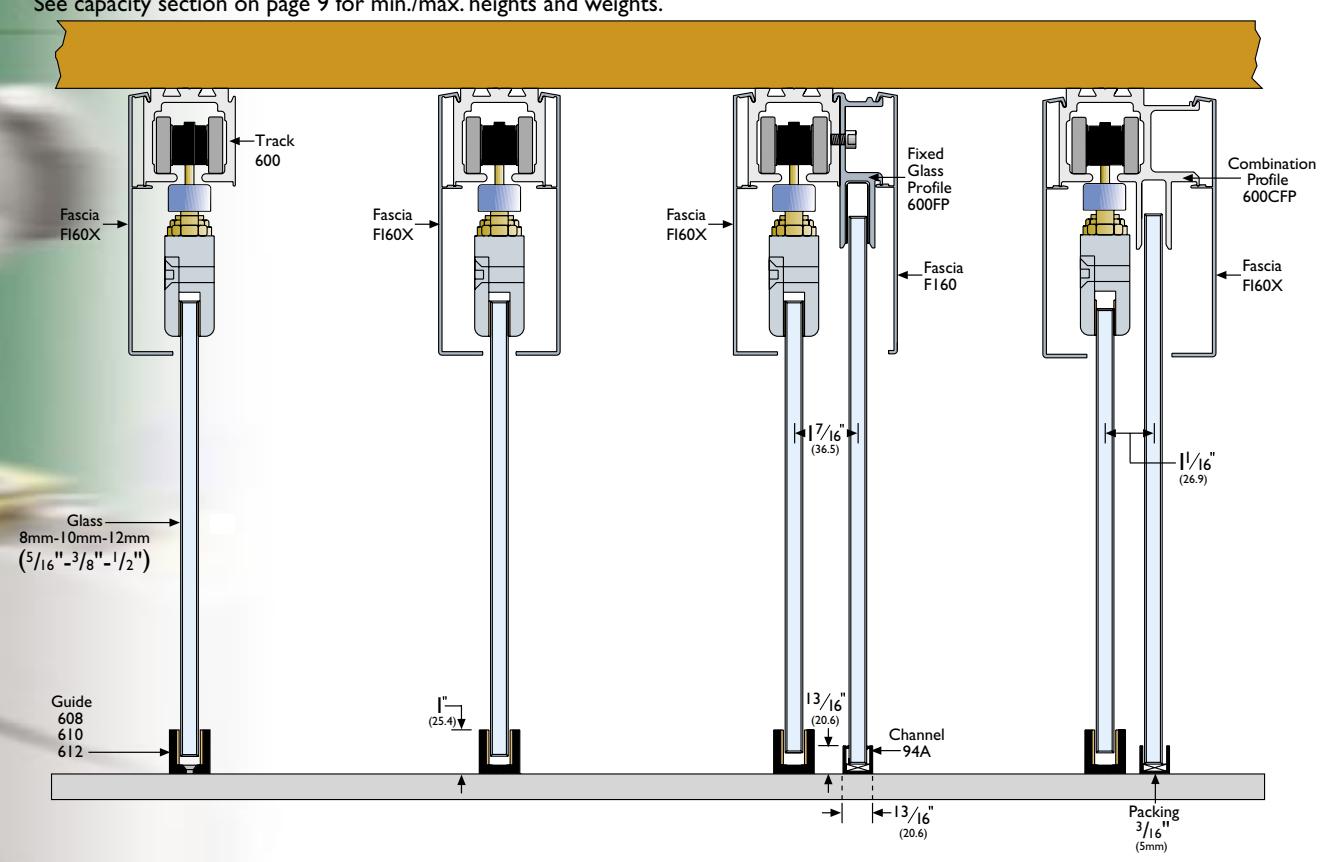

See capacity section on page 9 for min./max. heights and weights.

FLEXIROL STRAIGHT SLIDING

FOR TOP-HUNG WOOD, METAL OR GLASS DOORS

CAPACITY

Max. door weight: 1100 lbs. (556 hanger) (500kg)

Max. door height: 19'8" (6000mm) - wood or metal framed

8'6" (2600mm) - ³/₈" (10mm) tempered glass 13'2" (4000mm) - ¹/₂" (12mm) tempered glass 7'6" (2300mm) - ⁷/₁₆" (10.76mm) laminated glass 8'2" (2500mm) - ¹/₂" (12.76mm) laminated glass

Max. door width: 19'8" (6000mm) - wood or metal framed

4'3" (1300mm) - 3/8" (10mm) tempered glass 4'11" (1500mm) - 1/2" (12mm) tempered glass 3' (900mm) - 7/16" (10.76mm) laminated glass 4' (1200mm) - 1/2" (12.76mm) laminated glass

Door thickness: 19/16" (40mm) - 315/16" (100mm) - wood or

metal framed 3/8" (10mm) or 1/2" (12mm) -

tempered glass

APPLICATIONS

Henderson straight sliding Flexirol is ideally suited to hotels, conference centers, shop-fronts, showrooms or any site that requires high performance and attractive finish.

DOOR TYPES

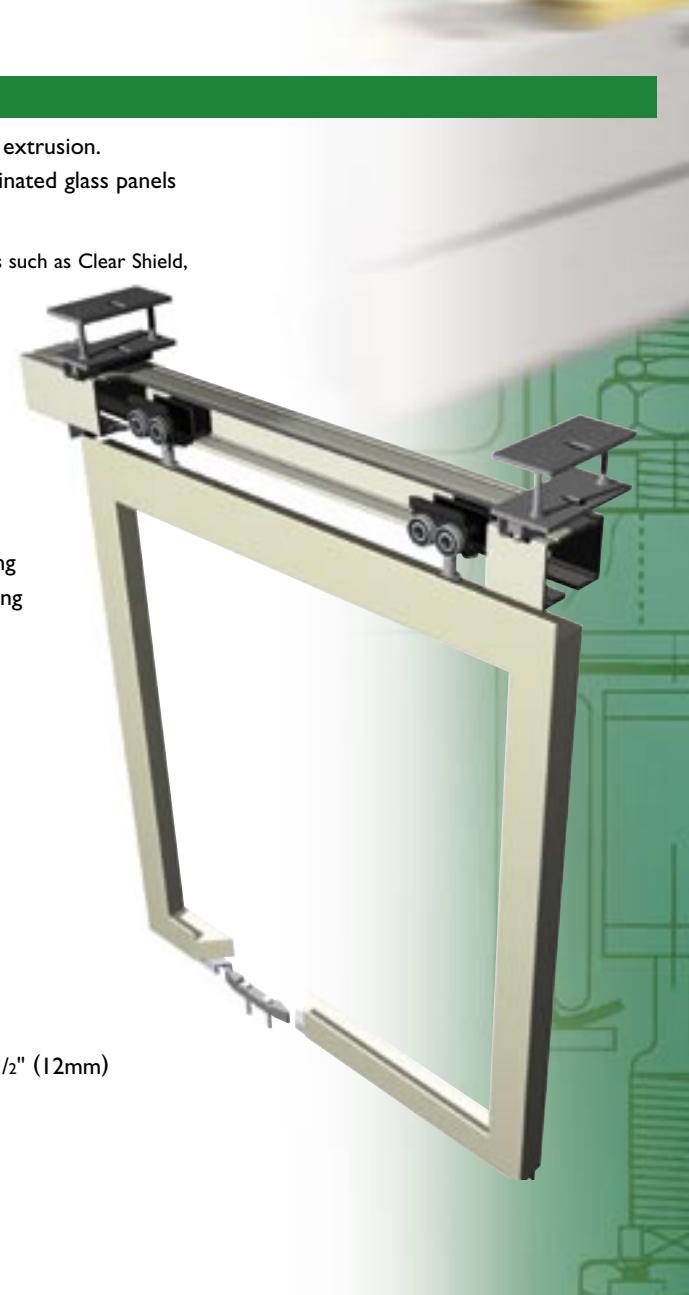

Wood doors, metal doors of either angle frame or box section and aluminum extrusion. Tempered glass panels of either $^3/8$ " (10mm) or $^1/2$ " (12mm) thickness and laminated glass panels of either $^7/16$ " (10.76mm) or $^1/2$ " (12.76mm) thickness.

<u>Note</u>: when using glass clamps in combination with protective coatings for glass surfaces such as Clear Shield, ensure that the glass surface to be clamped is not treated with the Clear Shield coating.

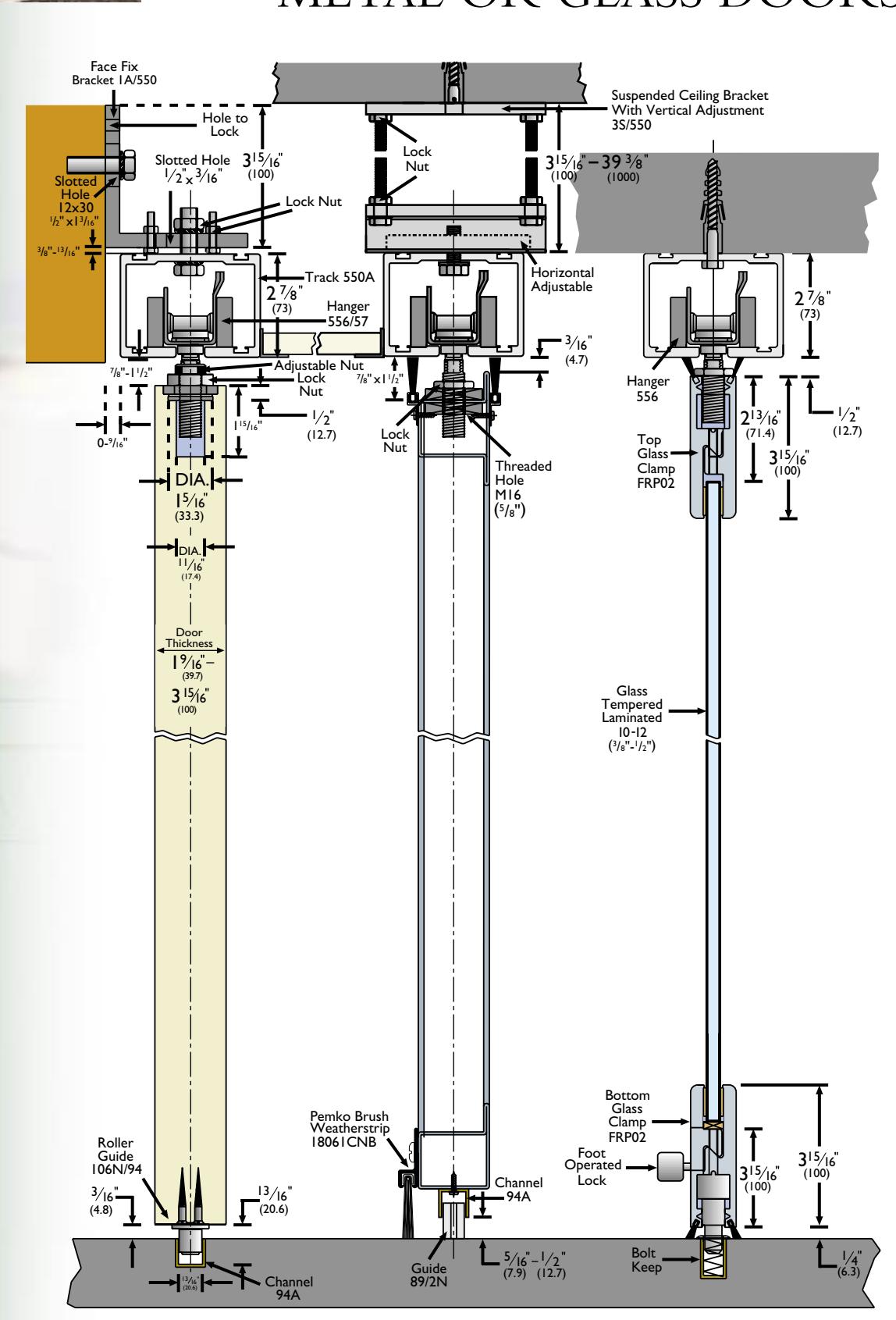

TECHNICAL INFORMATION

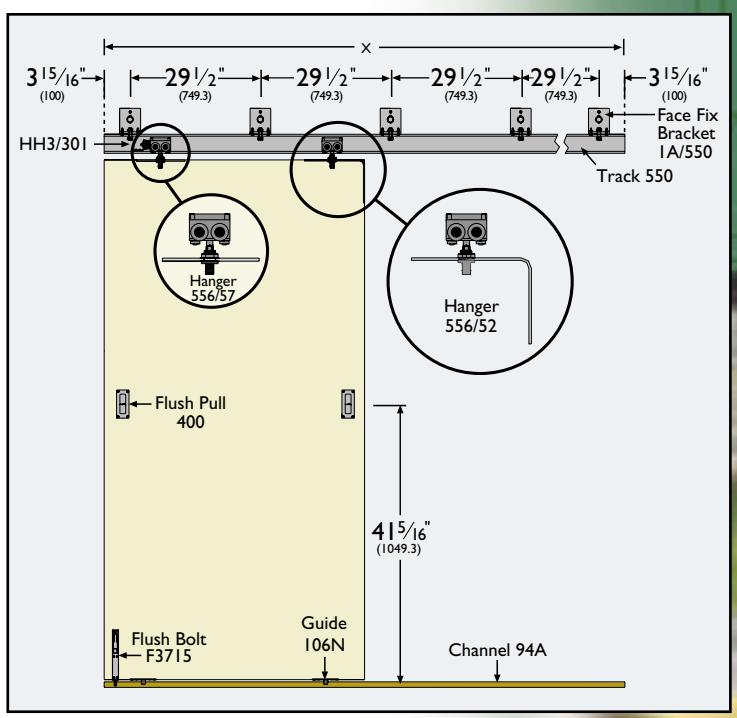

Track: 550A Brackets: Face fix IA/550

Soffit fix 3S/550

<u>Hangers</u>: Metal doors 556

Wood doors 556/57 - concealed fixing Wood doors 556/52 - angle plate fixing

Glass Profiles: Glass profile FRP02

Guides: Wood and metal doors 89/2N

Wood doors 106N/94 Metal doors 104N/94 Metal doors, extended version 104NX/94

Guide Channel: Brass 94

Aluminum 94A

Accessories: Flush pull 400

Flush bolt 333/454

Narrow flush bolt and keep F3715 and F3734

Trackstop HH3/301

Sliding door lock for glass panels 618 (3/8" (10mm) and 1/2" (12mm)

glass only - see page 9)

GLASS WEIGHT

3/8" glass 5.05 lbs./sq. ft. 1/2" glass 6.4 lbs./sq. ft.

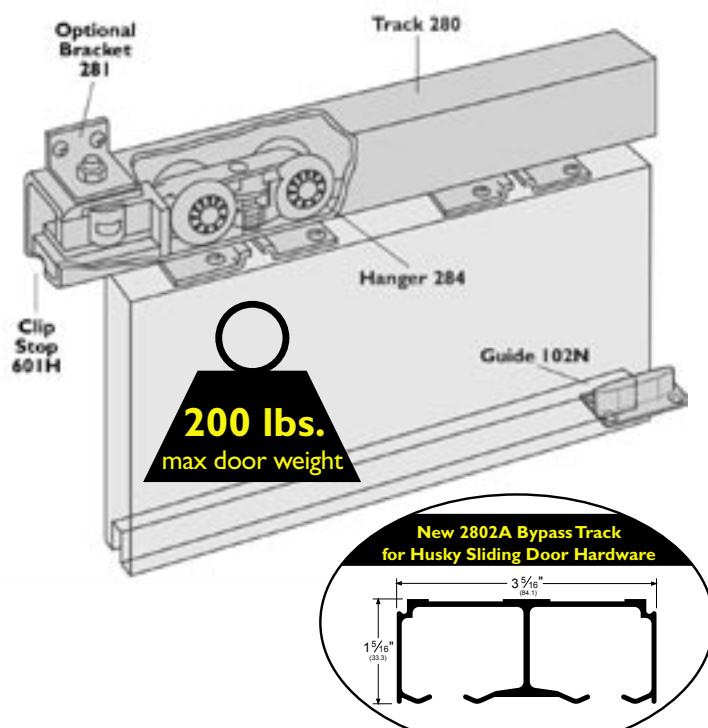

HUSKY 200 SLIDING

Reliable and highly versatile hardware using precision-made components for trouble-free operation.

FOR SLIDING WOOD OR METAL DOORS TO 200 lbs.

OPTION	F134
281 5	281 brackets - 5 each	F138
287	track stop (bumper type)	863
285	hanger for metal doors	400
106R/94	roller guide (use w/94A)	414
94A	aluminum floor channel	333

KITS (complete, ready to install) include:

I ea 280 or pre-drilled track, in steel or 280A aluminum, 6 or 8 foot lengths 284 2 ea nylon bodied, needle bearing, acetal wheel hangers I ea 102N nylon guide 2 ea 601H clip stops (Kit components can be ordered individually)

Order KITS based on material and length of track:

Order Ki i S based on material and length of track:
Kit No.	Material	Max Leaf Size
H200/6	steel track/6 ft.	96" x 36" x 2"
H200/8	steel track/8 ft.	96" x 48" x 2"
H200A/6	aluminum track/6 ft.	96" x 36" x 2"
H200A/8	aluminum track/8 ft.	96" x 48" x 2"

HARDWARE PACK (no. "H200PACK") = KIT w/o track:

2 ea	284	nylon bodied, needle bearing, acetal
		wheel hangers
l ea	102N	nylon guide
2 ea	601H	clip stops

BYPASS PACK ALSO AVAILABLE (no. "HBP200PACK")

aluminum fascia - 1-3/4" thick doors aluminum fascia - 1-3/8" thick doors iron bow handle (5-1/4" $\backslash times$ 1-3/4") aluminum flush pull (4-1/4" $\backslash times$ 1-7/8", 5/8" mortise) aluminum flush pull (5-1/4" $\backslash times$ 2-1/2", 3/4" mortise) aluminum flush bolt (6" $\backslash times$ 1-3/8")

FACE FIXED

HUSKY GLASS

CAPACITY

Max. door weight: 165 lbs. (75kg) Max. door height: 7'10" (2400mm) Max. door width: 4'1" (1250mm)

Glass thickness: 5/16" (8mm) and 3/8" (10mm)

APPLICATIONS

Husky offers a solution to lightweight glass applications such as office doors and small glass partitions.

DOOR TYPES

Glass panels of 5/16" (8mm) or 3/8" (10mm) thickness in tempered or laminated glass.

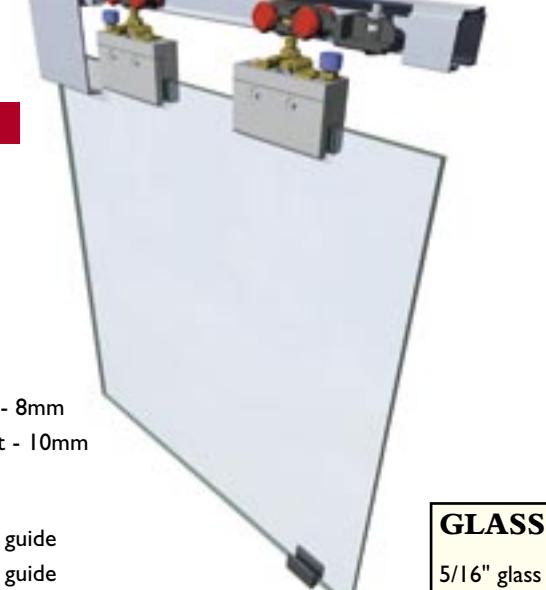

Glass Clamp kits contain: 2 hangers, 2 clamps, 2 end track stops and 2 floor mounted guides.

Note: When using glass clamps in combination with protective coatings for glass surfaces such as Clear Shield, ensure that the glass surface to be clamped is not treated with the Clear Shield coating.

TECHNICAL INFORMATION

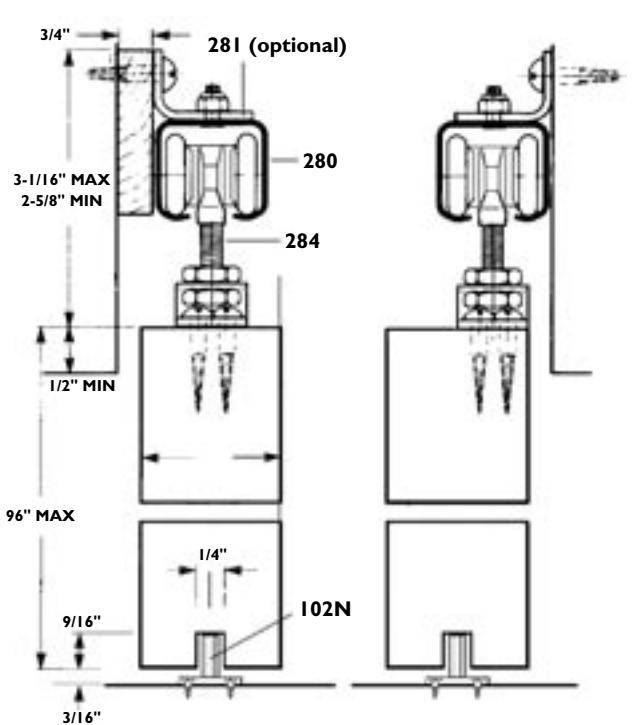

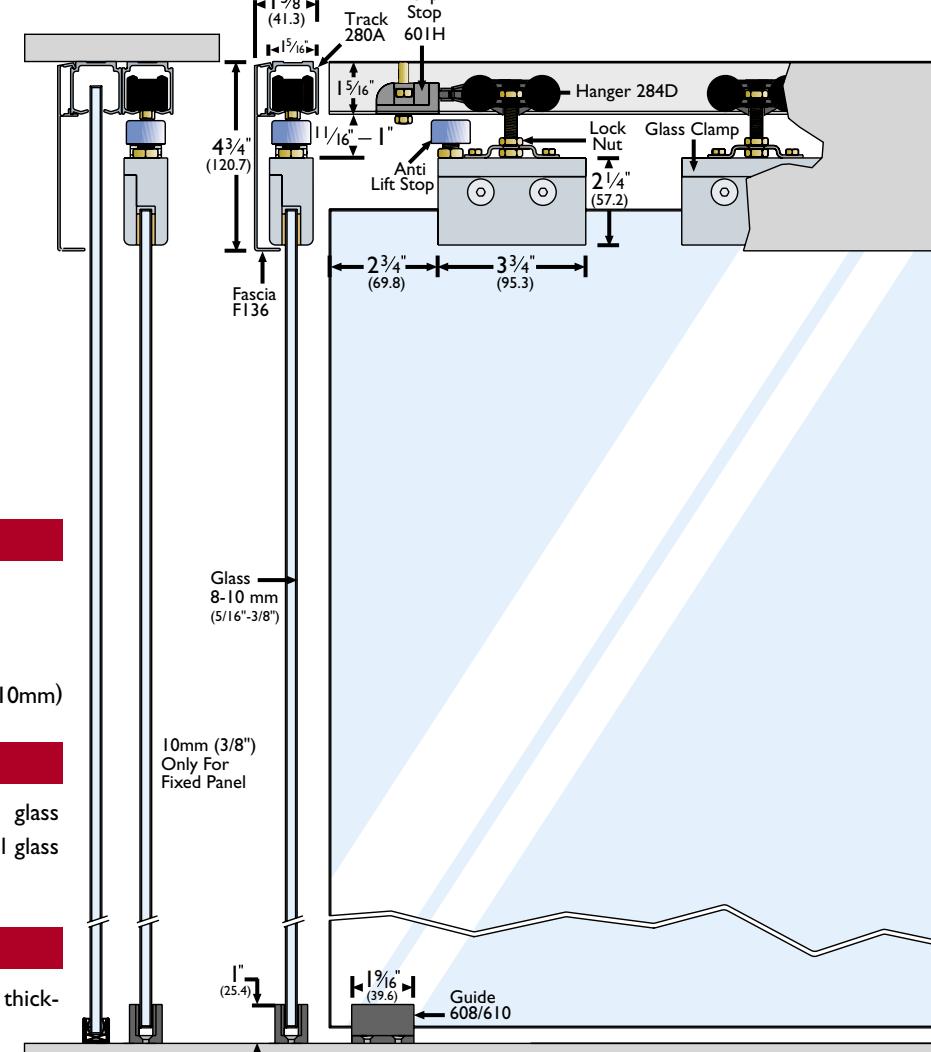

Track: 280A (extruded aluminum)

Available in 6', 8', and 12' lengths

Brackets: Face fix 281

5-pack 2815

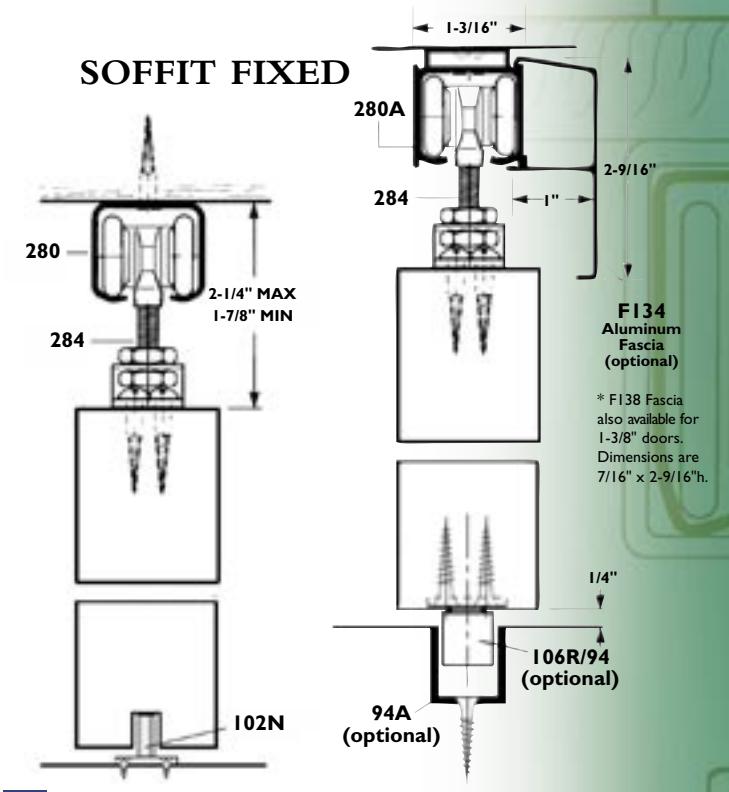

Fascias: Soffit fixed track F136

Glass Clamp Kits: For glass panels from

5/16" (8mm) up to 8/75/1 Kit - 8mm 3/8" (10mm) 10/75/1 Kit - 10mm

Guides: 5/16" (8mm) glass panels 608 - glass guide

3/8" (10mm) glass panels 610 - glass guide

Accessories: 601H retaining stop mounted within

the track

GLASS WEIGHT

5/16" glass 3.95 lbs./sq. ft. 3/8" glass 5.05 lbs./sq. ft.

PACER STRAIGHT SLIDING FOR TOP-HUNG

WOOD AND METAL DOORS

CAPACITY

Max. door weight: 440 lbs. (200kg) Max. door height: 9'10" (3000mm)

Door thickness: 13/8"-115/16" (35mm-50mm)

APPLICATIONS

Combining performance and style with versatility, Pacer straight sliding in wood, glass, aluminum or metal is ideally suited for shop-fronts, offices and other stylish interiors.

DOOR TYPES

Wood doors for interior applications can be either solid or glazed. Metal doors can be of angle or box section. Aluminum is dependent on extrusion profile.

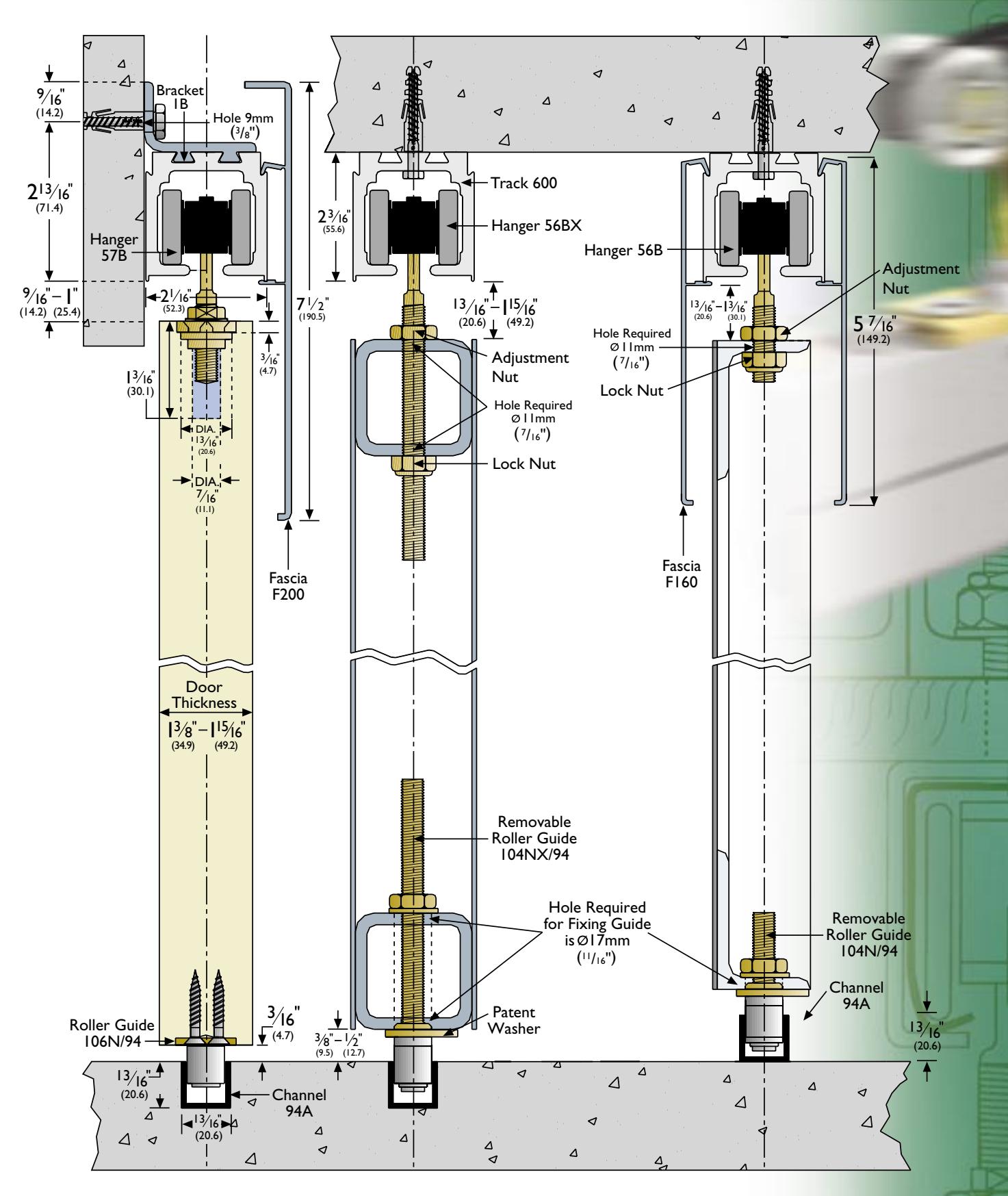

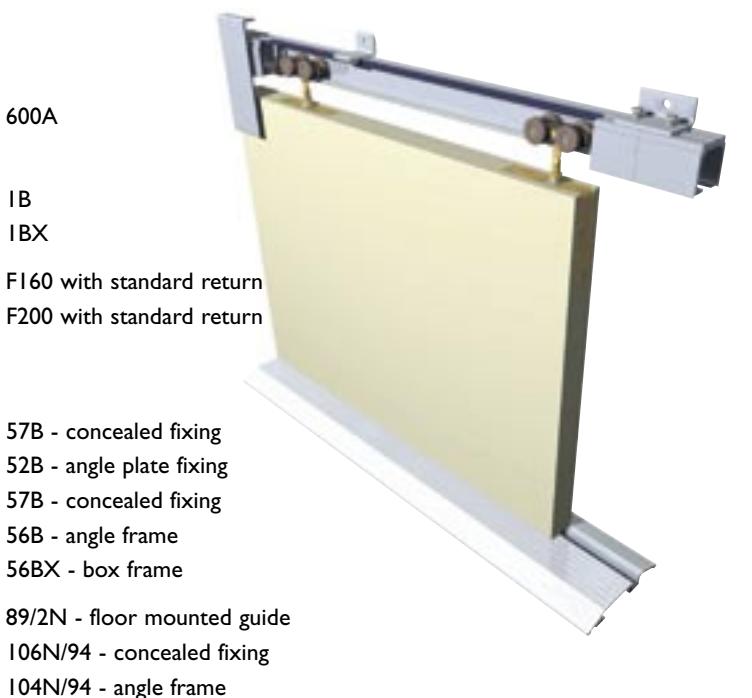

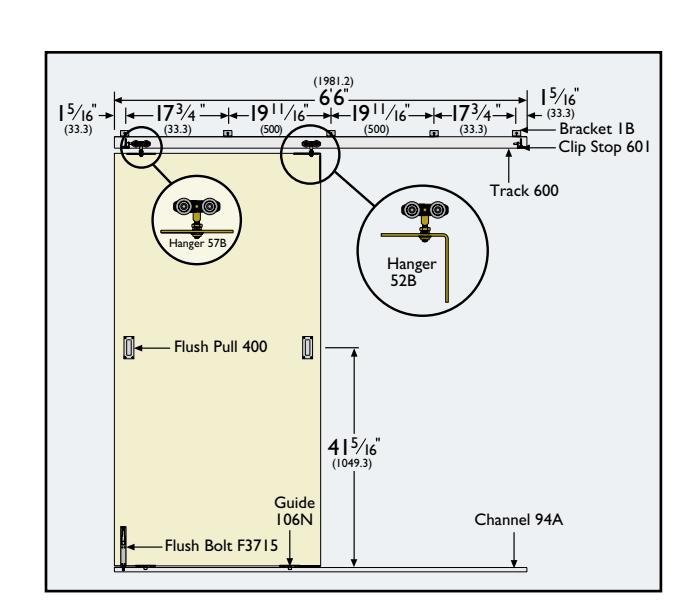

TECHNICAL INFORMATION

Aluminum Track:

Available in 6', 8', 10', and 16' lengths

600A

ΙB IBX

104NX/94 - box frame

94A

Brackets: Face fix

Jointing bracket

Fascias: Soffit fixed track

Face fixed track

Fascia comes in a satin anodized aluminum finish in lengths of 6', 8' and 10'

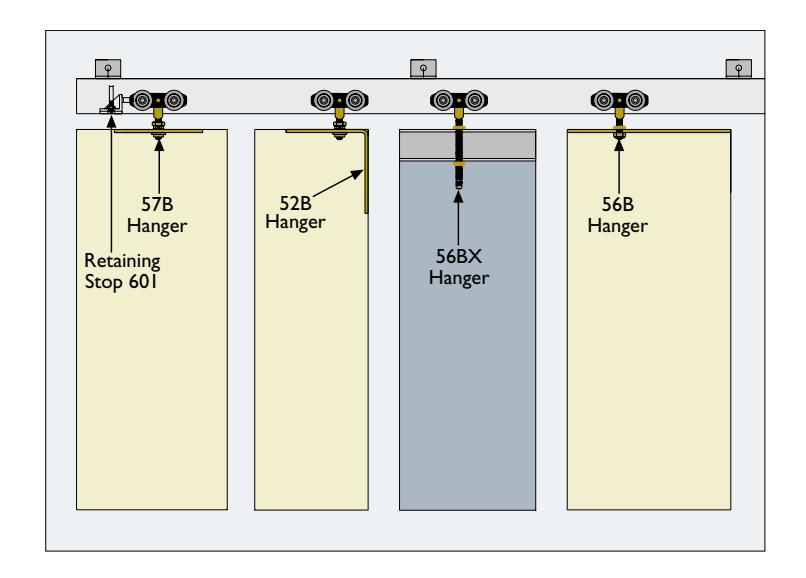

Wood doors Hangers:

Guide Channel:

Wood doors

Aluminum/Metal doors

Metal doors Metal doors

Wood/Aluminum/Metal doors Guides:

Wood/Aluminum doors

Metal doors Metal doors

Brass Aluminum

(1.5 meter) and 9'10" (3 meter) lengths.

94A channel available in 6', 8', and

12' lengths.

Accessories: Retaining stop mounted within the track 601P

94 channel available in 4'II"

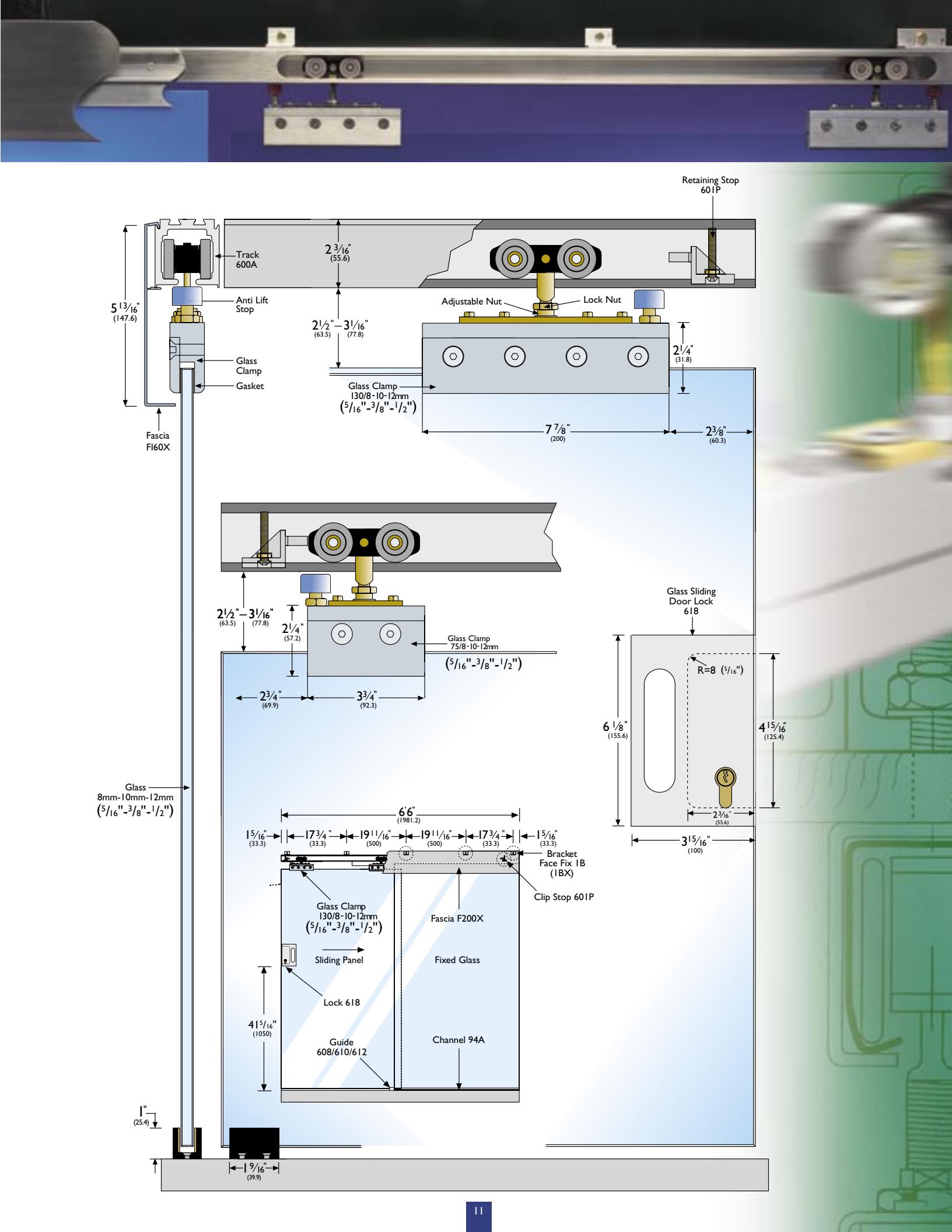

PACER GLASS

CAPACITY

Max. door weight: 165 lbs. (75kg) and 285 lbs. (130kg)

Max. door height: 9'10" (3000mm) Max. door width: 9'10" (3000mm)

Glass thickness: 5/16", (8mm) 3/8" (10mm) and 1/2" (12mm)

APPLICATIONS

The Pacer Glass Door System accommodates both sliding and fixed door panels, making it ideal for interior dividers in offices and shops as well as modern buildings and complexes.

DOOR TYPES

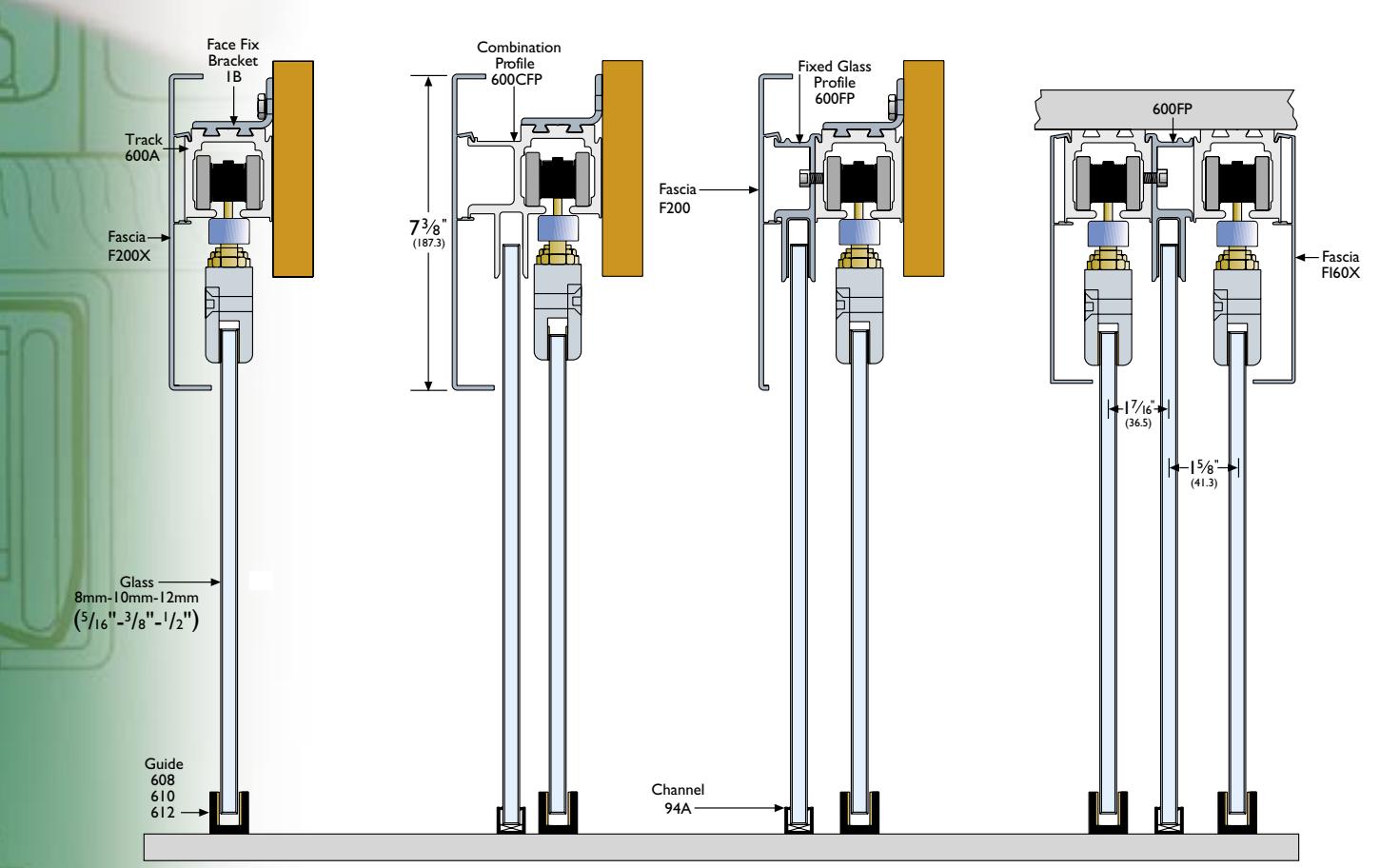

Glass panels of 5/16" (8mm), 3/8" (10mm) or 1/2" (12mm) thickness in tempered or laminated glass. For fixed glass panels an integrated track profile (600CFP) is available, allowing a sliding panel to pass alongside the fixed panel. A further option available is a clip-on profile (600FP) which attaches directly to the side of the track. This allows a combination of two fixed panels with a sliding panel.

Clip-on fascia is available for both soffit fix and face fix situations.

Glass Clamp kits contain: 2 hangers, 2 clamps, 2 end track stops and 2 floor mounted guides.

Note: When using glass clamps in the combination with protective coatings for glass surfaces such as Clear Shield, ensure that the glass surface to be clamped is not treated with the Clear Shield coating.

TECHNICAL INFORMATION

Track: 600A

600CFP combination profile - track and fixed glass panel

600FP fixed glass panel profile

All profiles available in 6', 8', 10', and 16' lengths

Brackets: Face fix 1B

Jointing bracket 1BX

Fascias: Soffit fixed track F160 with extruded return

Face fixed track F200 with extruded return

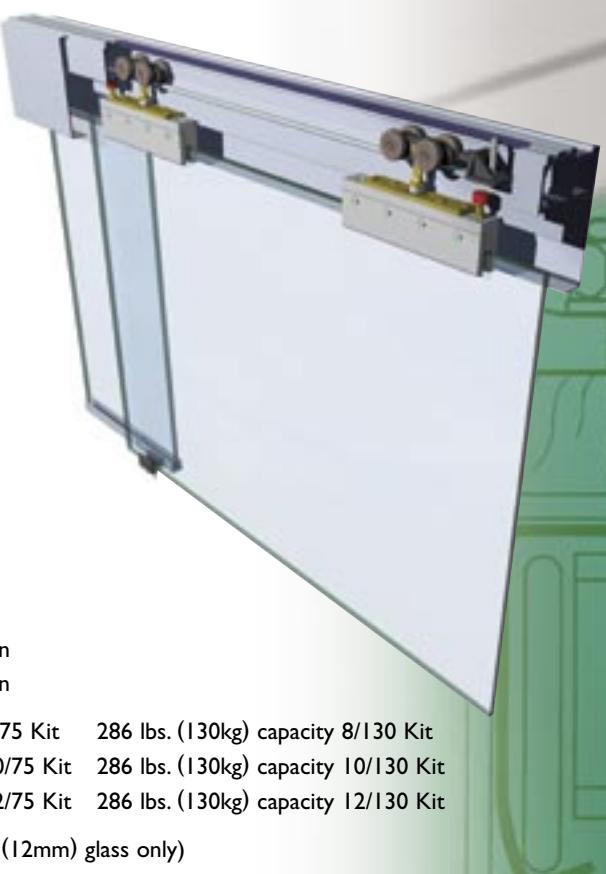

Glass Clamp Kits: 5/16" (8mm) glass panels 165 lbs. (75kg) capacity 8/75 Kit 286 lbs. (130kg) capacity 8/130 Kit

3/8" (10mm) glass panels 165 lbs. (75kg) capacity 10/75 Kit 286 lbs. (130kg) capacity 10/130 Kit 1/2" (12mm) glass panels 165 lbs. (75kg) capacity 12/75 Kit 286 lbs. (130kg) capacity 12/130 Kit

Accessories: Sliding door lock for glass panels 618 (3/8" (10mm) and 1/2" (12mm) glass only)

Track stop HH3/290 Retaining stop mounted 601P

within the track

GLASS WEIGHT

3/8" glass 5.05 lbs./sq. ft. 1/2" glass 6.4 lbs./sq. ft.
