Architectural Door Accessories

Pemko Sliding Door Hardware Systems

Pemko Sliding Door Hardware Systems

The Pemko sliding door part of an overall sliding ASSA ABLOY Group hardware and ASSA ABLOY Wood Doors.

Why Sliding Doors?

Add Style Where Space is Limited

Sliding doors aren't new; architects have always sought creative ways to increase usable space in facilities. ASSA ABLOY offers an updated and aesthetically-pleasing twist on a classic idea that allows you to transform a simple doorway into a stylish focal point, while recovering the in-swing and out-swing space required by hinged doors.

The Designer's Choice

We've taken the functional benefit of the sliding door—maximizing floor and wall space—and created a complete solution that offers designers the maximum in versatility:

• Match the aesthetics of the facility with your choice of glass or ASSA ABLOY Wood Doors
• Pemko sliding door hardware systems can be hidden behind a fascia, concealed overhead, or exposed for upscale or rustic interiors
• Outfit the door with fashionable Rockwood pulls

Why Choose Pemko Sliding Door Hardware Systems

Each Pemko hardware system is designed, engineered and tested by sliding door specialists who understand the unique demands that the sliding motion places on hardware. Our sliding door hardware systems are manufactured with expertise and care to be reliable, smooth operating and durable, as well as aesthetically pleasing.

Featured Systems:

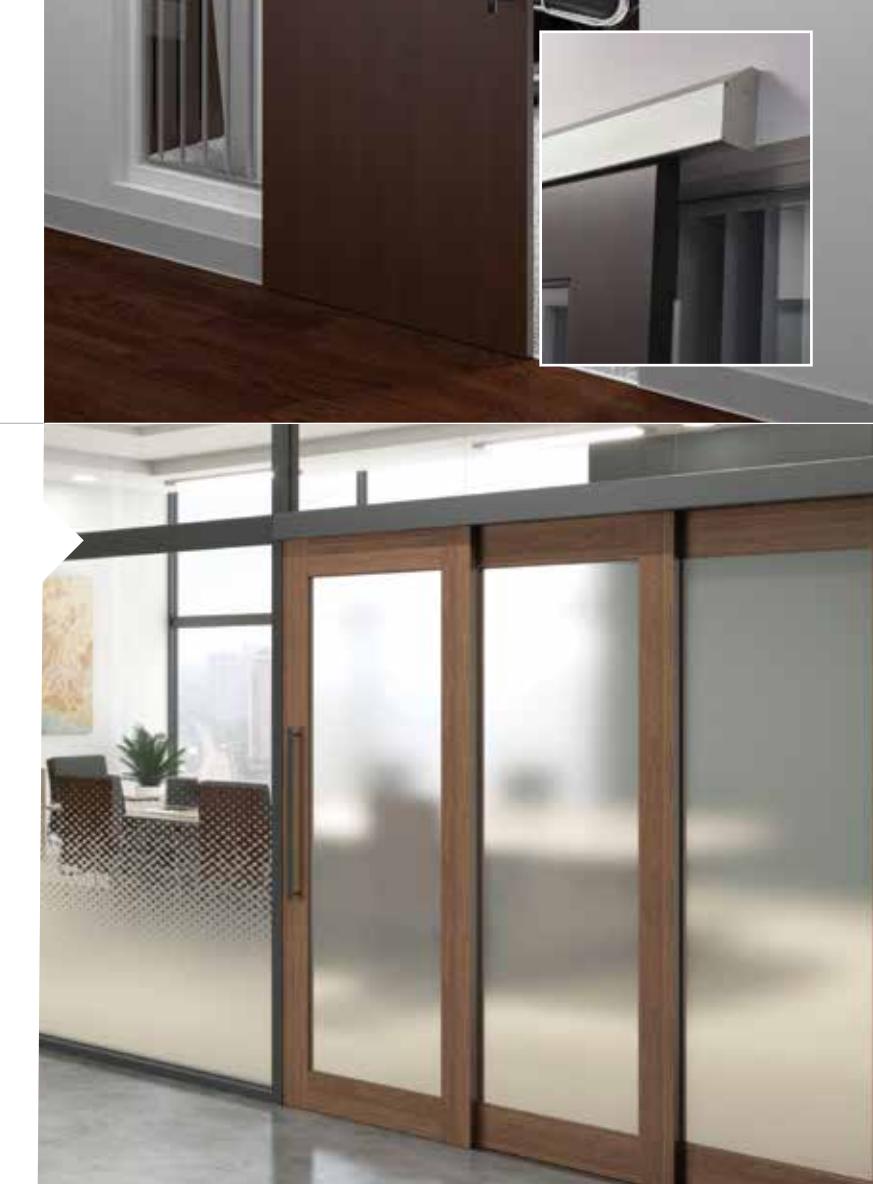

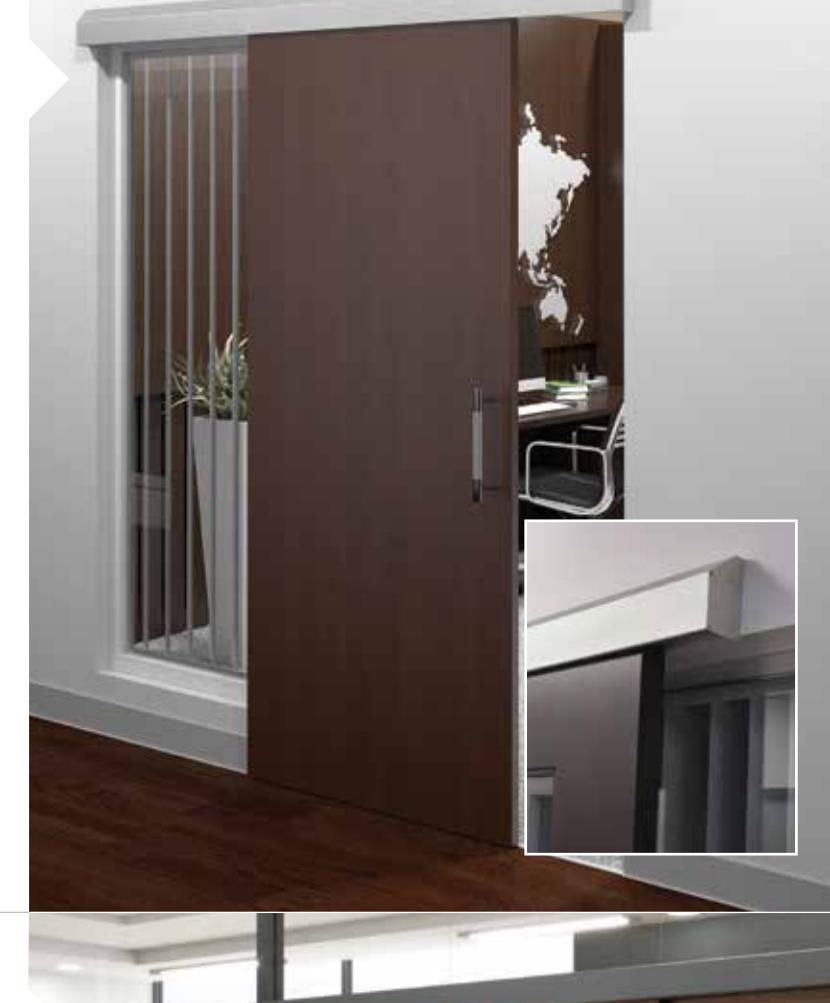

Replace Old In-Swing Office Doors with Space-Saving Sliding Doors

The Pemko Side Wall Track (SWT) System expands usable office space by at least 15 square feet by placing the door entirely outside of an office.

• Mounts quickly and provides years of trouble free operation
• ADA compliant; requires less than 5 lbs. of force to operate door
• Ideal for offices, conference rooms, and group work areas

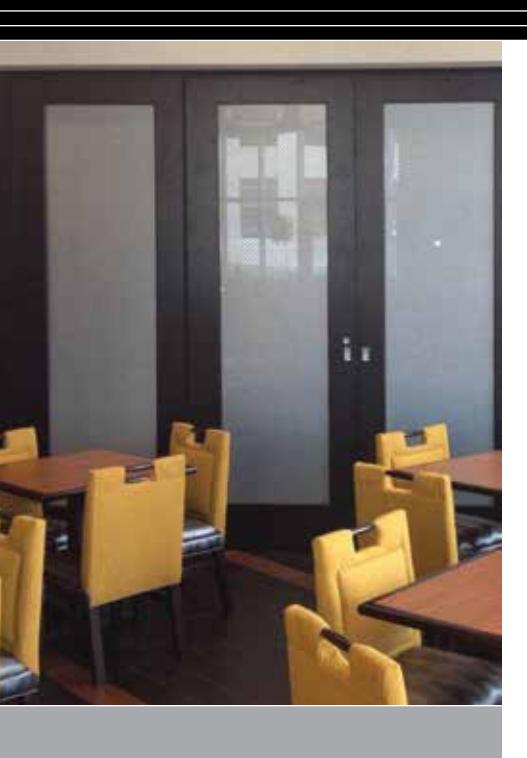

Telescoping Doors Create Movable Wall

The Pemko Simultaneous Acting Hardware (SIM 150) System creates a telescoping wall of door panels that stack and glide into storage pockets for a clean, minimalist look.

• Section off parts of a room
• Standard 2-door to 6-door systems accommodate most openings
• Ideal for hotel breakfast or other serving areas

Customer Favorite is Versatile and Reliable

The versatile Sliding 200 Series can be configured for a

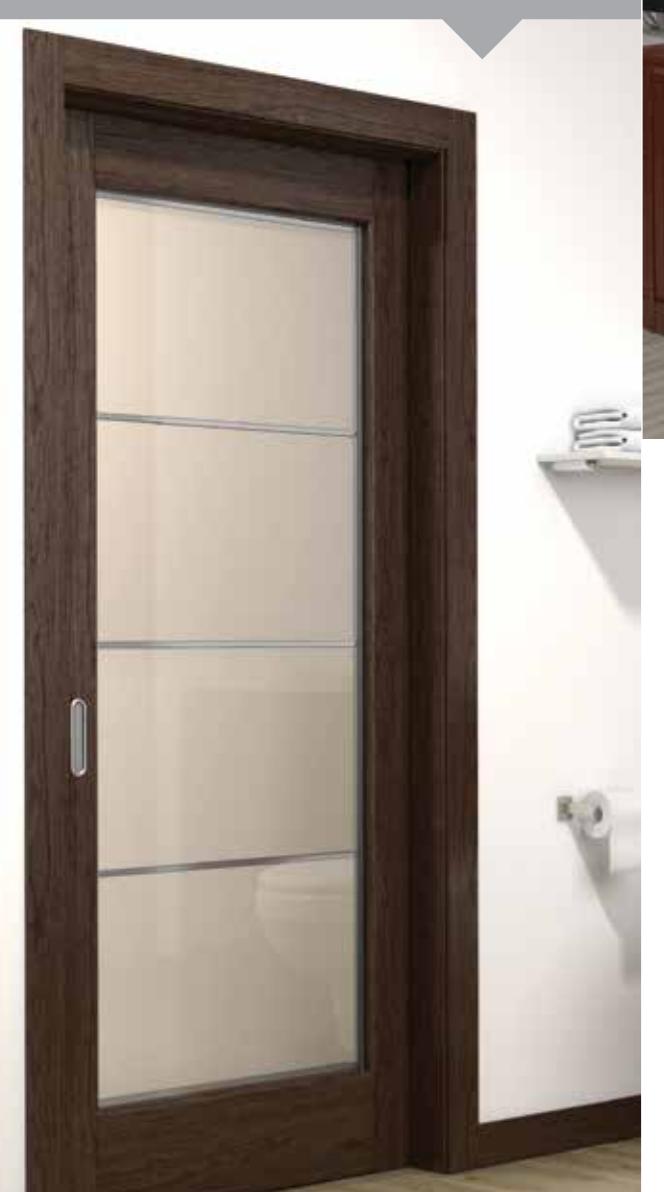

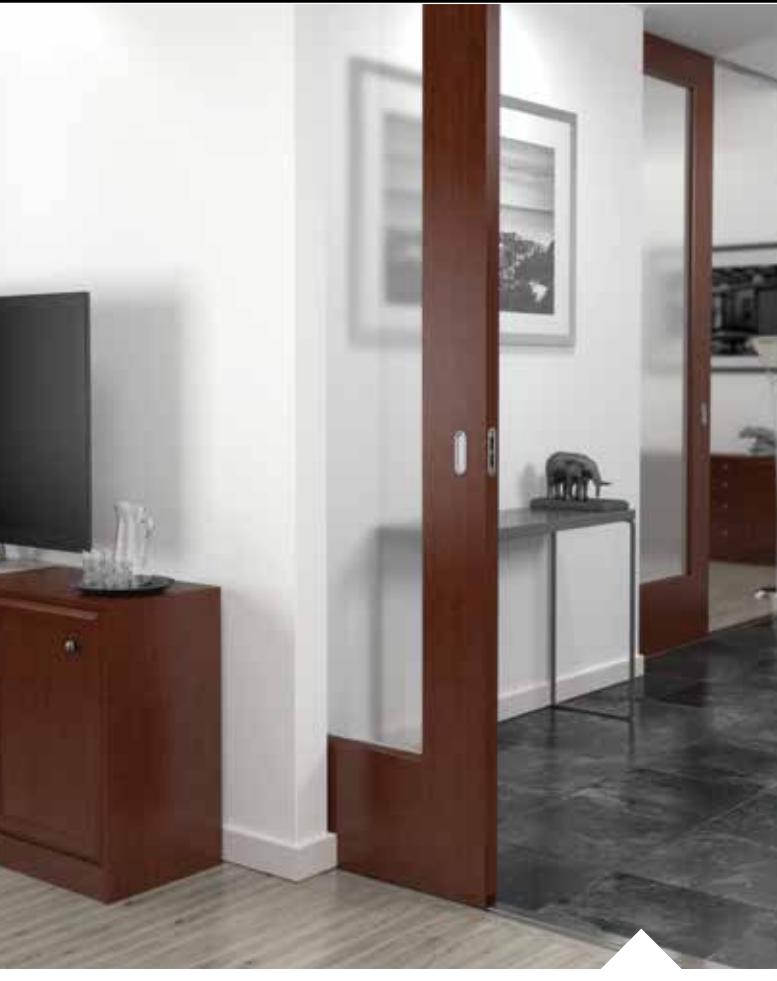

The Ultimate Space Saver: Pocket Doors

With the Pemko Pocket Frame (PF) Kit , the door slides back into the wall freeing up door clearance and wall space.

• ADA compliant; requires less than 5 lbs. of force to operate the door
• Best for installation in new spaces or buildings
• Ideal for maximizing space in commercial offices, multi-family or condominiums

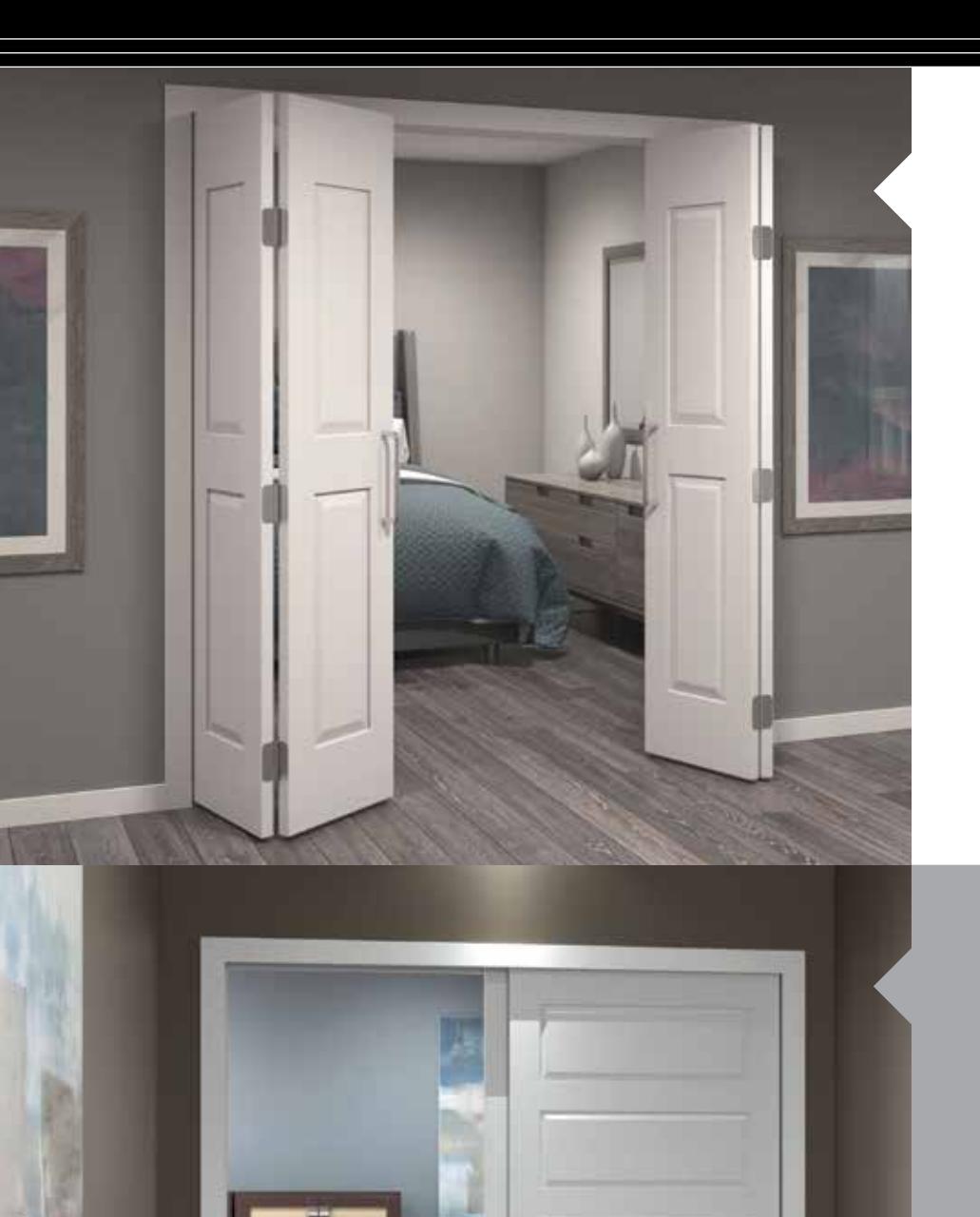

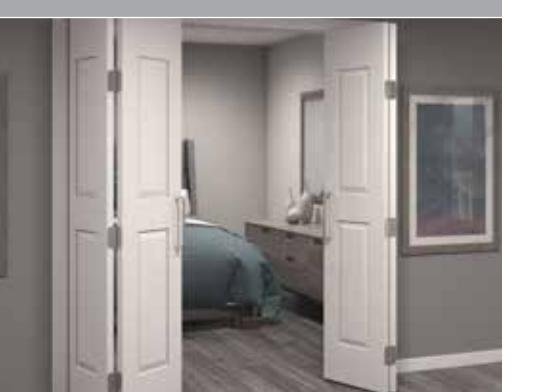

Folding Doors for Closets or Doorways

The Folding 100 Series (HF2/HF4) System is suitable for closets and for separating a room within a room where space to store open doors is limited.

• Two or four doors up to 24" wide and 96" tall
• Overhead or side wall mounting
• Ideal for hotels, assisted care and residential

By-Pass Sliding Doors

The Pemko By-Pass Track (BP) System allows one door to pass in

• 5 lbs. of force to operate door

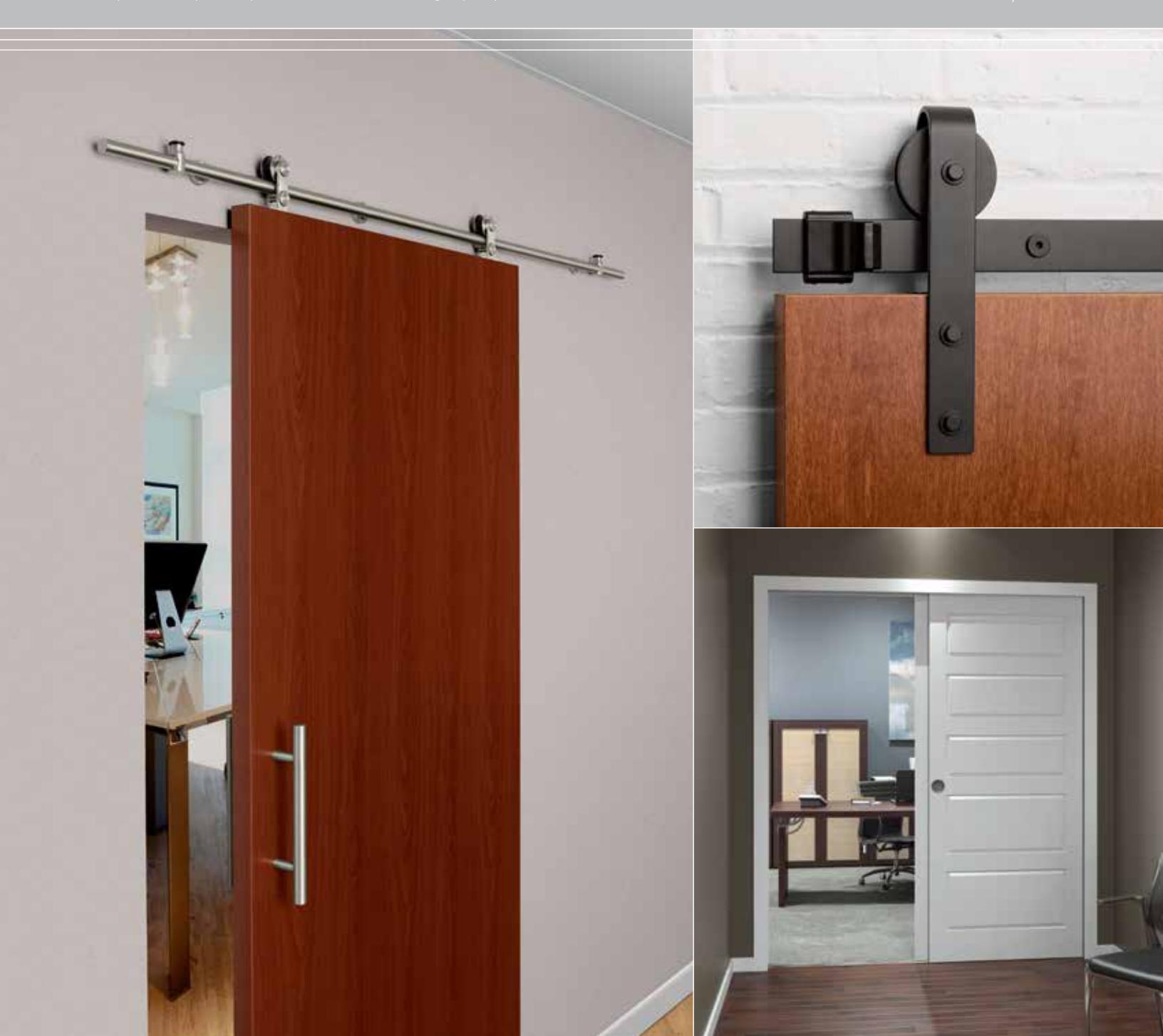

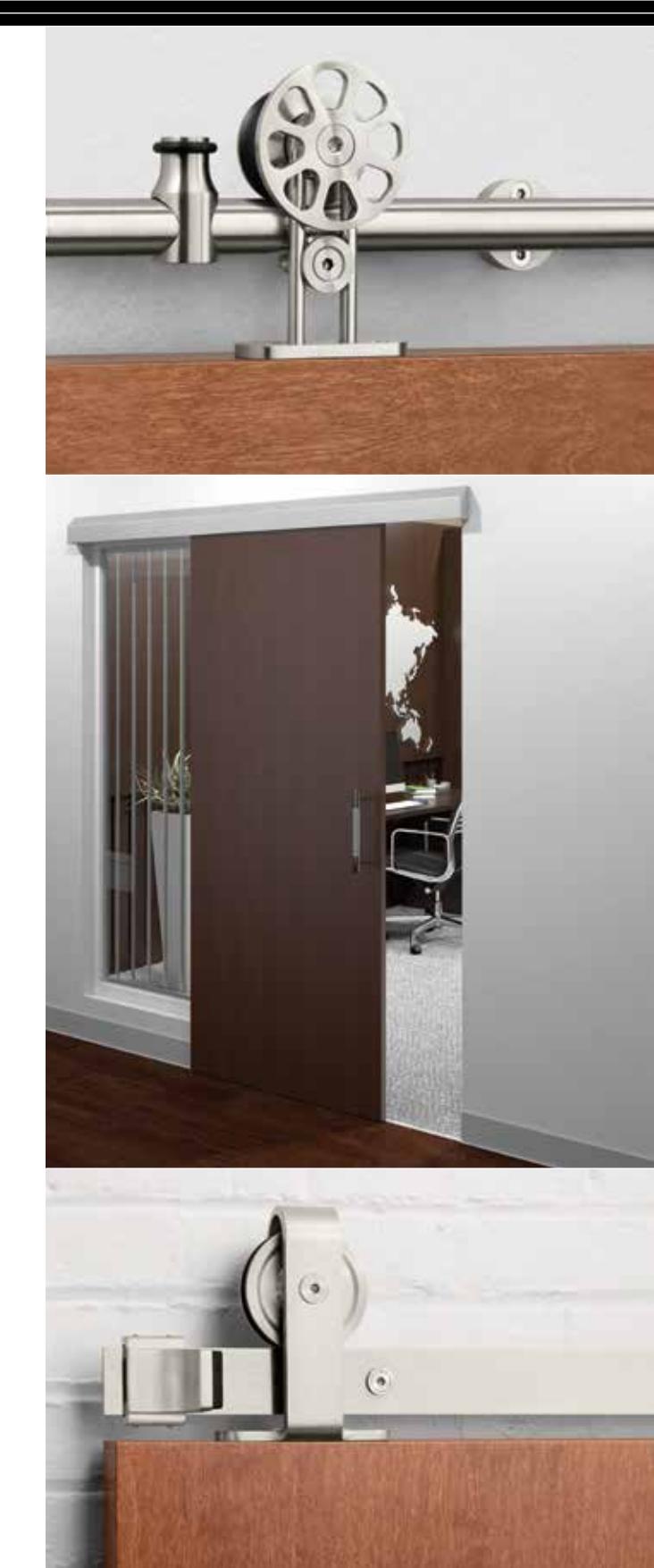

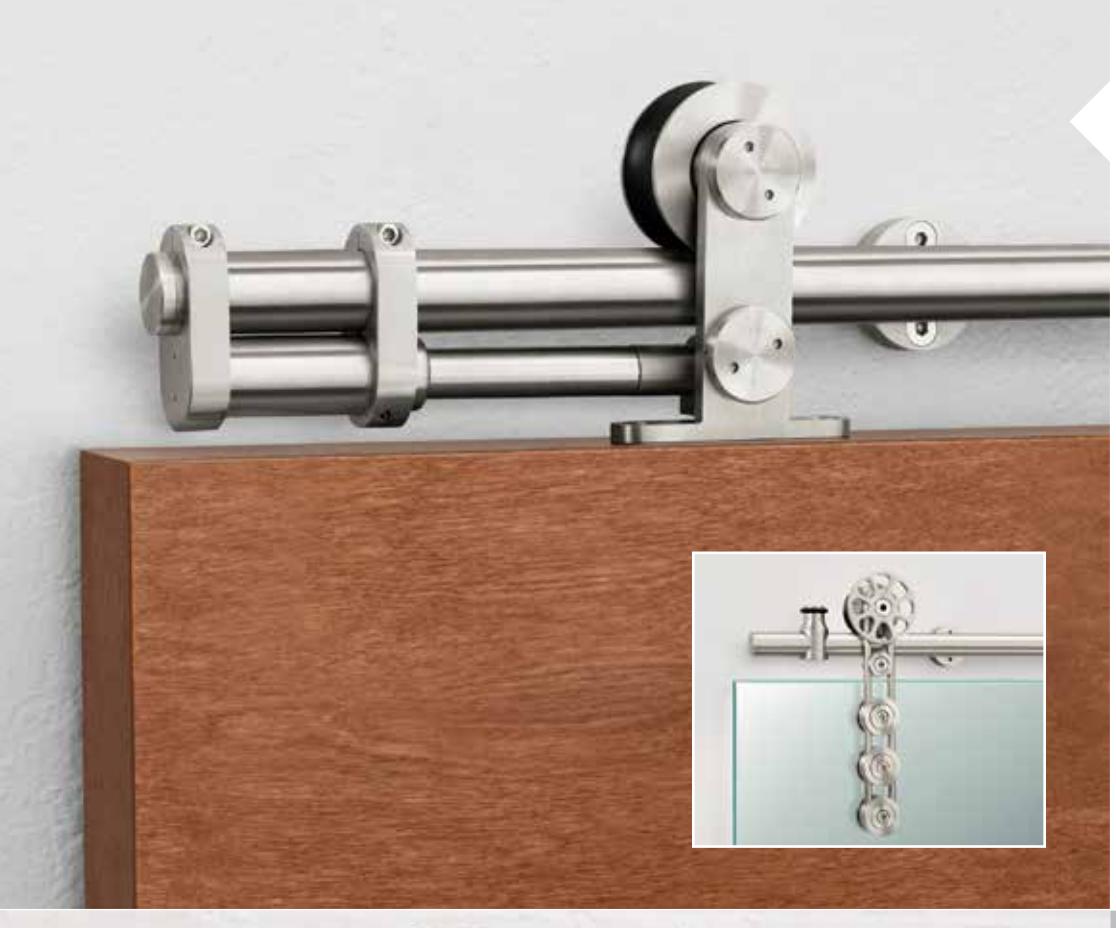

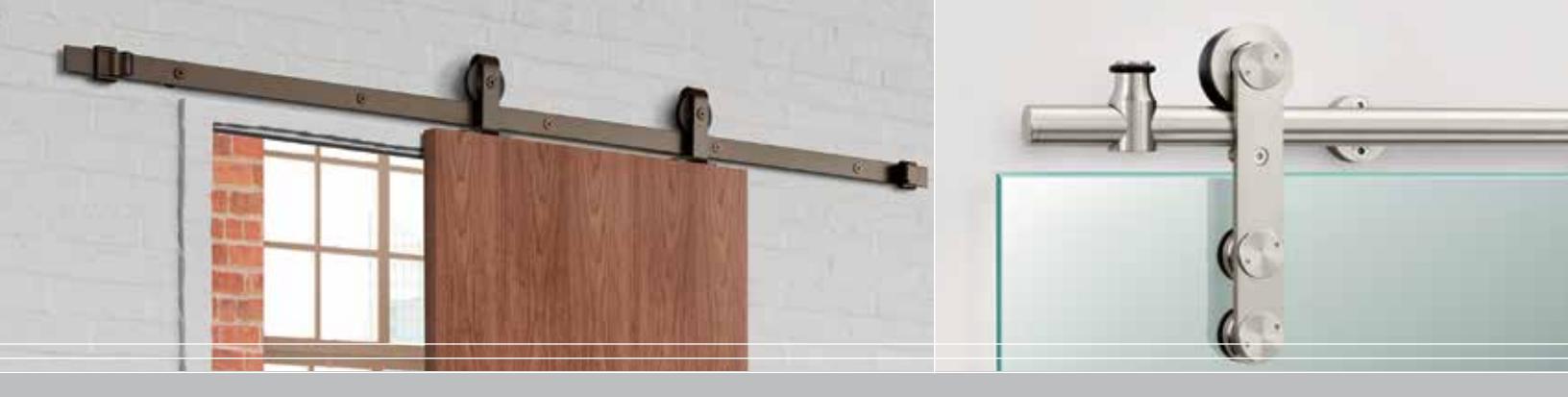

Exposed Sliding Hardware Adds a Decorative Touch

The Pemko Stainless Steel Sliding Track Hardware System adds style to modern decor with multiple hanger designs including several with the unique Cushion Stop to prevent racking (shown in large photo).

• Smooth quiet operation suitable for shared spaces; operation requires less than 5 lbs. of force
• Ideal for offices, hotel rooms and multi-family units
• Options for wood and glass doors

Track Sliding Door Hardware

Product Selection Guide

Select your sliding door hardware system based on the application, the door weight and size, mounting preference and any special characteristics of the opening. Many systems can be customized for special door openings.

For details on each door system, visit www.pemko.com for full specification sheets.

System	App lication	Door Weight	Track Mounting	New or Retrofit
Side Wall Track System	Side wall mount	Up to 200 lbs. each	Side wall	Both
HPB Bypass Series	By-Pass	Up to 200 lbs. each	Overhead or side wall	Both
Sliding 200 Series	Multipurpose	Up to 200 lbs. each	Overhead and side wall	Both
Decorative Style
Stainless Steel Sliding Track	Decorative	Up to 176 lbs. each*	Side wall	Both

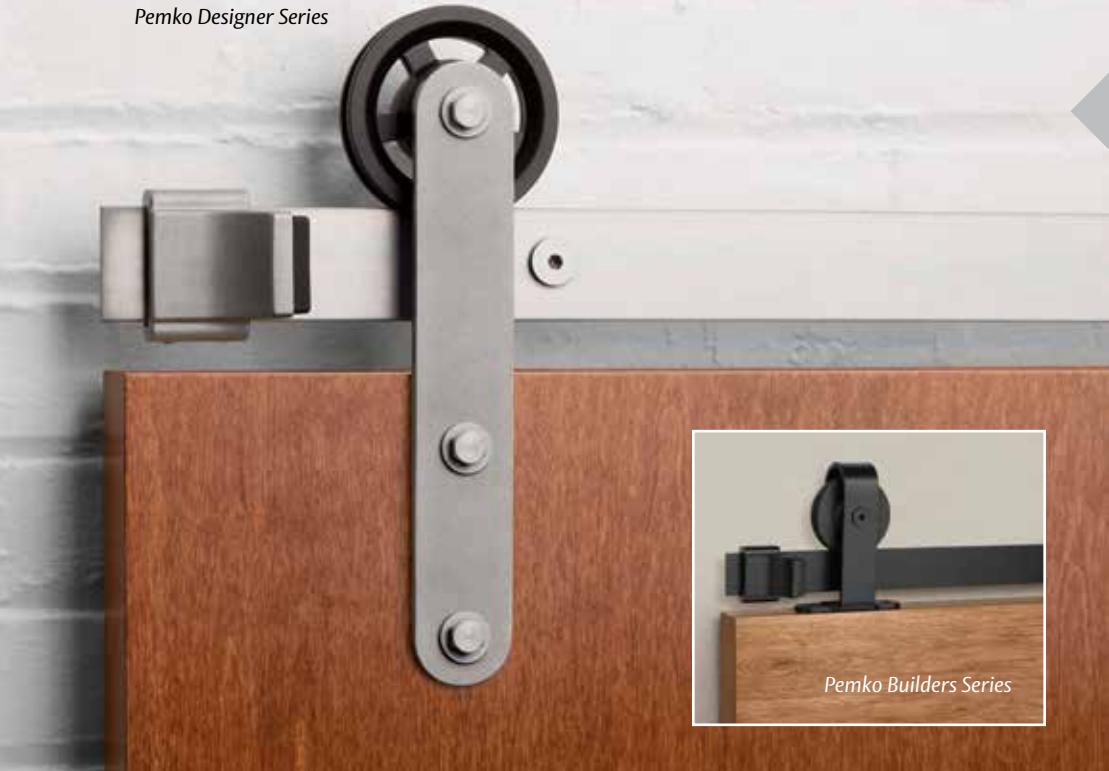

Flat Track - Builders Series	Decorative	Up to 240 lbs. each	Side wall or surface	Both
Flat Track - Designer Series	Decorative	Up to 500 lbs. each	Side wall or surface	Both
Pocket Style
SIM 150	Telescoping	Up to 176 lbs. each	Overhead	New
Pocket Frame Kit	Pocket	Up to 200 lbs. each	Overhead in pocket	New
Folding Style Door
Folding 100 Series	Folding	Up to 100 lbs. each	Overhead or side wall	Both

^* W70 model: Up to 240 lbs.
