View PDFArchitectural Door Accessories
Pemko Cushion Stop for Stainless Steel Sliding Track Hardware Systems

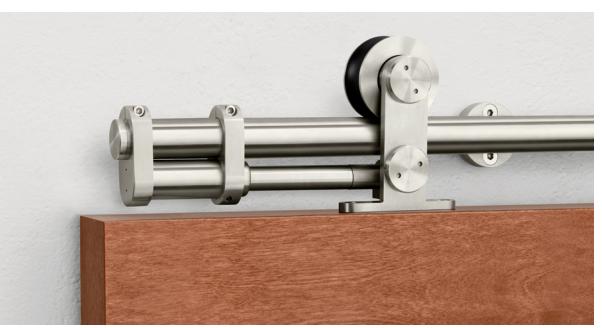

The innovative Cushion Stop is available with the Pemko Stainless Steel Sliding Track Hardware systems. The Cushion Stop gently catches the hanger and cushions the landing of the door, preventing racking of the system and bounce back into the opening.
The stop attaches to the track and is easy to install and adjust. It also provides hold open/close functionality eliminating door creep into the opening.
The Cushion Stop is available when ordering W60 and W100 Stainless Steel Sliding Track Hardware systems, or as a retrofit kit for existing Pemko W60 or W100 systems.
| Features | Benefits |
|---|---|
|
Cushion Stop gently catches the hanger and
cushions the door landing |
Prevents racking, extending the life of the
track hardware |
|
Prevents door from rebounding off stop when
opening |
Eliminates door bounce back |
| Provides hold open/closed door functionality | Prevents door creeping |
|
In-house tested to meet strict performance
standards |
System meets performance requirements
of ANSI/BHMA 156.14 |
Applications:
- Hospitality
- Office Buildings
- Multi-Family
- Mixed Use
Patent Pending.
© 2014-2017 Pemko Manufacturing Co.
The Cushion Stop is available when ordering the following Sliding Track Systems or as retrofit kits.

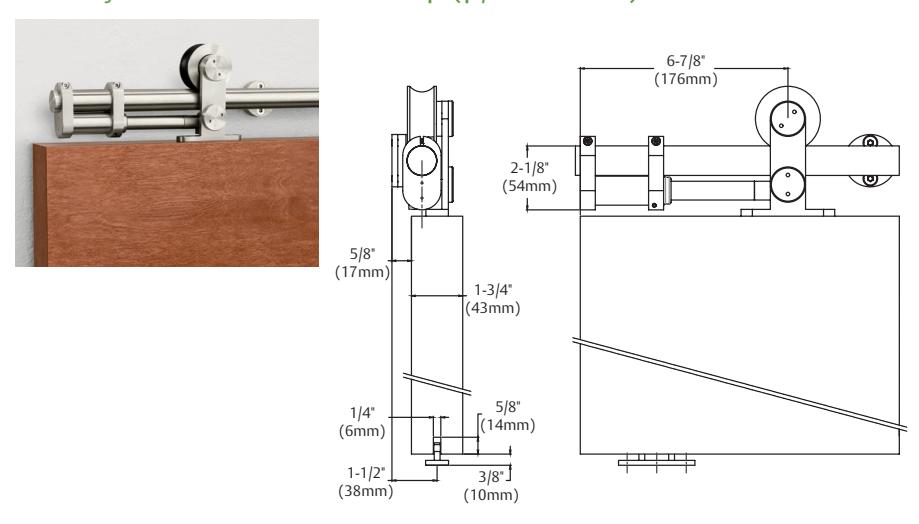

W60 System with Cushion Stop (p/n CS-W60)

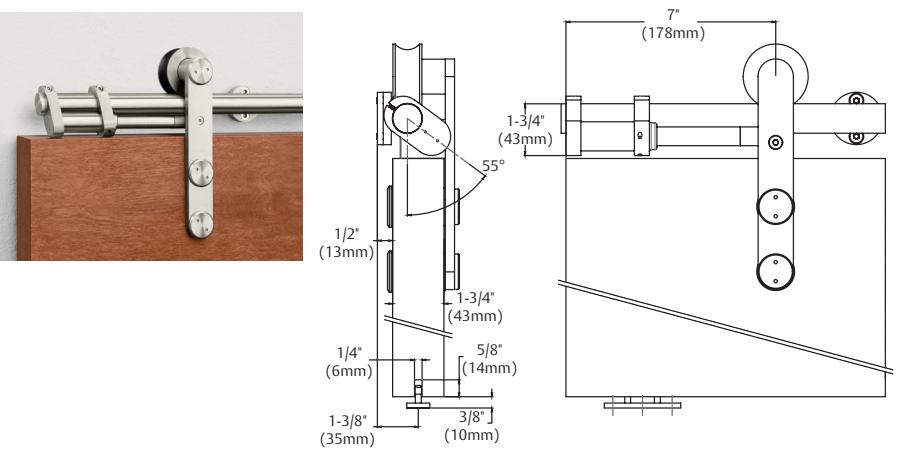

W100 System with Cushion Stop (p/n CS-W100)
Technical Specifications:
Materials:
304 Stainless Steel Track and Hangers Nylon coated rollers
System Includes:
Stainless Steel Track (6'6" or 8'2"*) with End Caps
2 Door Hangers
Wall Brackets
1 Door Bottom Guide
2 Cushion Stops
Mounting and Installation Hardware *Custom track lengths are available
Retrofit Kits:
Cushion Stop Retrofit Kits are available for existing Pemko systems: W60- Retrofit kit number CS-001 W100- Retrofit kit number CS-003
Finish Options:
Brushed Stainless Steel, Dark Bronze Stainless Steel or Polished Stainless Steel
Standards:
Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation
Door Specifications:
Door Weight up to 176 lbs (with CS-W60 kit) or 198 lbs (with CS-W100 kit) Wood Doors 1<sup>3</sup>/<sub>4</sub>" thick Door Bottom <sup>3</sup>/<sub>8</sub>" undercut Can include lites or tinted glass
Patent Pending
