Pemko Acoustic Seal Sets Brochure
Open the original PDF document
View PDFArchitectural Door Accessories
Pemko Acoustic Seal Sets
Making a Sound Difference

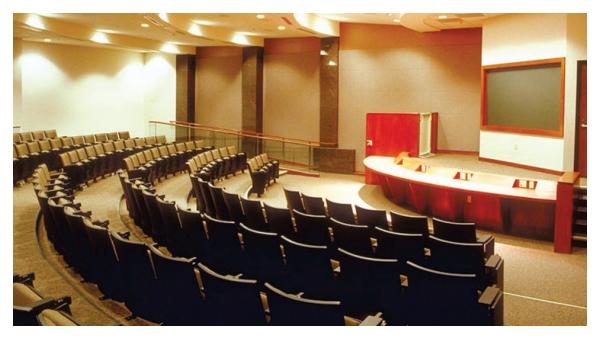

Conference rooms, auditoriums, classrooms, and many other indoor environments should all be designed for acoustic control. Specially designed products such as doors, frames, and gasketing help to noise infiltration from adjacent spaces while helping to meet specific STC requirements.
Pemko Acoustic Seal Sets help create quieter environments by sealing the space around the door on all sides. Each set includes acoustic gasketing, a door bottom or threshold, and a complete set of installation instructions intended to guide proper installation for the best acoustic performance.
These Pemko product combinations are lab tested to determine sound reduction and have known decibel drops when used with Sound Transmission Class (STC) doors. They are offered in various sets to eliminate guesswork and to make it easier to meet the STC rating required of any opening.
| Features | Benefits |
|---|---|
| Lab-tested sealing solutions | Superior acoustic performance |
| Complete solution in a kit | Easy to select and order correct product |
| Meets ANSI Standard S12.60-2002 | Contributes to LEED® credits |
| Use with any STC Rated Door | Helps meet the rating requirement for the opening |
|
Gasketing and inserts have achieved
GREENGUARD Gold Certification |
Low chemical emissions into indoor air |
Applications:
- Education
- Healthcare
- Hospitality
Copyright © 2013-2019, ASSA ABLOY Accessories and Door Controls Group, Inc.
Pemko Acoustic Seal Sets
To determine the appropriate Pemko Acoustic Seal Set for your opening, locate the column in the chart which shows the sealed-in-place rating of the STC rated door being used. Next review the decibel drop numbers to find the seal set(s) that will result in the desired operable STC rating.
| Item Number | Sealed-In-Place Door STC Rating | |||||
|---|---|---|---|---|---|---|
| 58 to 54 | 53 to 49 | 48 to 46 | 45 to 43 | <42 | ||
|
PEMKOSTCSET-1A
Alternate Kits: 1B, 1C, 1D, 1E |
-2 | -1 | 0 | 0 | ||
| PEMKOSTCSET-2C | -3 | -2 | -2 | -1 | 0 | |
|
PEMKOSTCSET-2D
Alternate Kits: 2A, 2B |
-3 | -2 | -1 | -1 | 0 | |
| PEMKOSTCSET-2E | -2 | -2 | -1 | -1 | 0 | |
| PEMKOSTCSET-3A | -2 | -1 | 0 | 0 | ||
| PEMKOSTCSET-3D | -2 | -1 | 0 | 0 | ||
| PEMKOSTCSET-3E | -2 | -2 | -1 | 0 | 0 | |
| PEMKOSTCSET-3B | -1 | 0 | 0 | |||
|
PEMKOSTCSET-4A
Alternate Kits: 4B, 4D, 4E |
-1 | 0 | 0 | |||
| PEMKOSTCSET-5C | -3 | -2 | -2 | -1 | 0 | |
|
PEMKOSTCSET-5D
Alternate Kits: 2A, 2B |
-3 | -2 | -1 | -1 | 0 | |
Note: A seal set cannot increase the sealed-in-place rating; a zero drop is the best performance any seal set can provide.
Need More Guidance on Acoustic Solutions?
Pemko Acoustic Seal Sets are an important part of an overall acoustic solution. Contact the consultative experts at ASSA ABLOY Door Security Solutions to learn more.
www.assaabloydss.com
ASSA ABLOY is a member of the USGBC and CaGBC U.S. Green Building Council logo is a trademark owned by the U.S. Green Building Council and is used with permission.
For more information about GREENGUARD and GREENGUARD Gold certification, visit www.ul.com/gg.
| Item Number | Gasketing | Door Bottom | Threshold | Corner Pad |
|---|---|---|---|---|
| PEMKOSTCSET-1A | S773BL (Single Row) and S44BL (Single Row) | STC411APK | ACP112BL | |
| PEMKOSTCSET-1B | S44BL (Two Rows) | STC411APK | ACP112BL | |
| PEMKOSTCSET-1C | S442BL (Single Row) and S44BL (Single Row) | STC411APK | ACP112BL | |
| PEMKOSTCSET-1D | 303AS and S44BL (Single Row) | STC411APK | ACP112BL | |
| PEMKOSTCSET-1E | 312CR and S44BL (Single Row) | STC411APK | ACP112BL | |
| PEMKOSTCSET-2A | S773BL (Single Row) and S44BL (Single Row) | 2008APK | ||
| PEMKOSTCSET-2B | S44BL (Two Rows) | 2008APK | ||
| PEMKOSTCSET-2C | S442BL (Single Row) and S44BL (Single Row) | 2008APK | ||
| PEMKOSTCSET-2D | 303AS and S44BL (Single Row) | 2008APK | ||
| PEMKOSTCSET-2E | 312CR and S44BL (Single Row) | 2008APK | ||
| PEMKOSTCSET-3A | S773BL (Single Row) and S44BL (Single Row) | 3692APK773BL | ||
| PEMKOSTCSET-3B | S44BL (Two Rows) | 3692APK773BL | ||
| PEMKOSTCSET-3D | 303AS and S44BL (Single Row) | 3692APK773BL | ||
| PEMKOSTCSET-3E | 312CR and S44BL (Single Row) | 3692APK773BL | ||
| PEMKOSTCSET-4A | S773BL (Single Row) and S44BL (Single Row) | 2009APK | ||
| PEMKOSTCSET-4B | S44BL (Two Rows) | 2009APK | ||
| PEMKOSTCSET-4D | 303AS and S44BL (Single Row) | 2009APK | ||
| PEMKOSTCSET-4E | 312CR and S44BL (Single Row) | 2009APK | ||
| PEMKOSTCSET-5A | S773BL (Single Row) and S44BL (Single Row) | 2006STC | ||
| PEMKOSTCSET-5B | S44BL (Two Rows) | 2006STC | ||
| PEMKOSTCSET-5C | S442BL (Single Row) and S44BL (Single Row) | 2006STC | ||
| PEMKOSTCSET-5D | 303AS and S44BL (Single Row) | 2006STC | ||
| PEMKOSTCSET-5E | 312CR and S44BL (Single Row) | 2006STC |
