Architectural Door Accessories

Pemko ADA Compliant Panic Threshold

Innovative design for ease-of-use

The Pemko 2009_PK Panic Threshold features a unique gradual slope that makes maneuvering over the threshold easier. It is the best choice on the market today for ADA compliance. Additionally, this threshold can be used where vertical rod exit devices are specified or wherever a gasketed threshold is desired.

The patent-pending threshold features a 1:2 sloped gasket design, providing a highperformance seal at the bottom of the door as well as an easy transition to the integrated stop in the threshold.

With a maximum height of 1⁄2", the Pemko 2009_PK Panic Threshold meets the ADA Accessibility Guidelines for Buildings and Facilities and the ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities standards. The 2009_PK Panic Threshold also meets the California Building Code (CBC) 2013, 1008.1.7 Thresholds.

The gasket, manufactured from PemkoPrene® material, as well as the assembled 2009_PK threshold have achieved GREENGUARD Gold certification by meeting the requirements of UL 2818 for products with low volatile organic compounds (VOC).

The threshold is constructed of durable aluminum for long life, is certified to and exceeds the ANSI/BHMA A156.21-2009 requirements for thresholds. The design of this threshold enables Pemko to offer a concealed fastener option by locating the fastener holes in the gasket channel for an improved aesthetic appearance.

Features	Benefits
Innovative sloped gasket design	Greater ease-of-use and an excellent seal
Overall maximum 1⁄2" height	Meets ANSI/A117.1-2013 and ADAAG-2010 Guidelines for Accessibility
PemkoPrene® Gasket	Durable and long lasting seal
GREENGUARD Gold Certified	Low chemical emissions during product use

Applications:

• Healthcare Facilities
• Schools
• Public Buildings
• Retail
• Office Buildings

Copyright © 2014-2019, ASSA ABLOY Accessories and Door Controls Group, Inc.

Innovative and Accessible Solutions

ASSA ABLOY has many innovative products, from adhesive gasketing and astragals to door bottoms and thresholds. Pemko products can also help meet barrier-free needs with modular ramps, floor treads and commercial thresholds.

Available Products

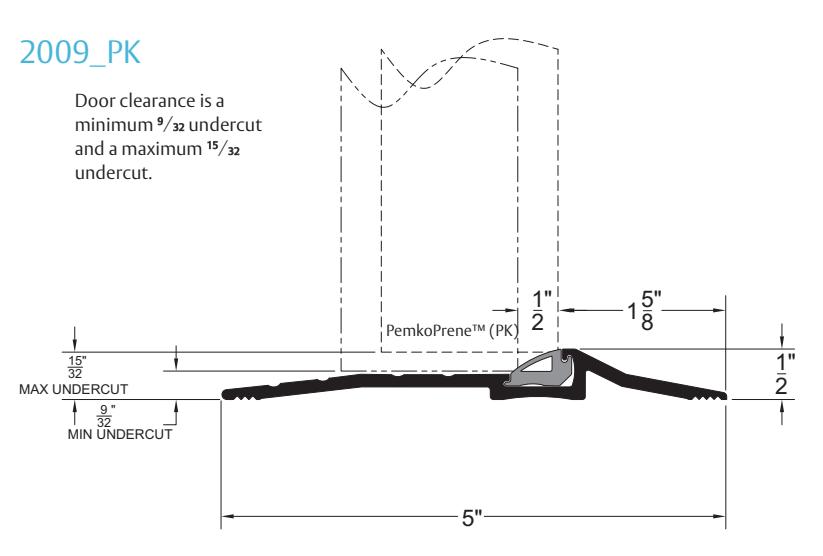

Part number	Width	Length	Finishes
2009_PK	5"	36", 48", 60", 72", 84", 96"	A - Mill Finish Aluminum D - Dark Bronze Anodized

For more information about GREENGUARD and GREENGUARD Gold certification, visit www.ul.com/gg.

ASSA ABLOY is a member of the USGBC and CaGBC U.S. Green Building Council logo is a trademark owned by the U.S. Green Building Council and is used with permission.

Technical Specifications:

Threshold Material: 6063-T6 Aircraft Aluminum

Finishes:

Mill Finish Aluminum, Dark Bronze Anodized Gasket Material: PemkoPrene® (black)

Fasteners:

Wood screws included. Other fastener options are available upon request at an additional charge. Concealed fastener location option is available for an additional charge.

Sound Rated:

Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.

Fire Rated:

Meets UL10C Standard.

Smoke Tested:

Meets requirements of UBC 7-2 and UL 1784-01 Standards and is tested in accordance with NFPA 105 test method.

Air Tested:

Air infiltration tested in accordance with ASTM E283-04.

ADA Compliance:

Meets the barrier free requirements of ICC/ANSI A117.1-2013.

ANSI/BHMA:

Meets the requirements of ANSI/BHMA A156.21 Thresholds.

GREENGUARD Gold Certification:

Meets the product certification requirements for low chemical emissions of UL 2818 to Gold status

Patent Pending
