SWINGING DOOR PADDLE HANDLE • CAM PLUG • LEVER HANDLE HARDWARE

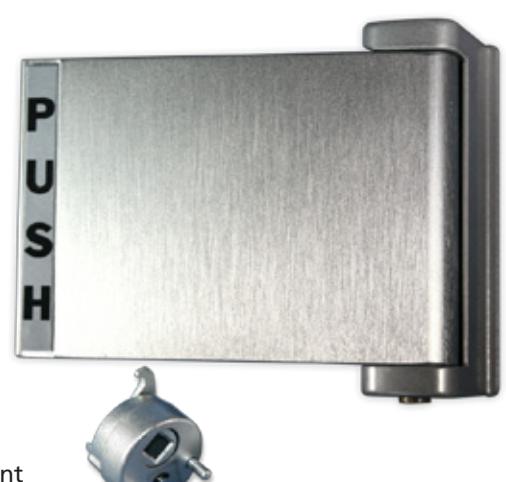

PH-4520 PADDLE HANDLE

• For use with DL-4510 type Latch Lock
• "Push" or "Pull" Paddle Handle
• Field reversible for opposite hand with PUSH and PULL Plates included
• Cam Plug, field reversible, included
• Extruded Aluminum Handle

Finishes Available:

• AL Handle anodized Satin Aluminum Housing baked Satin Aluminum paint
• DU Handle anodized Storefront Bronze Housing baked Storefront Bronze paint

Ordering Information
PH-4521 PUSH To The Left	PH-4523 PUSH To The Left
PH-4522 PUSH To The Right	PH-4524 PUSH To The Right

Specify: Model Number and Finish

CP-4560 CAM PLUG

• For use with HL-4560 Lever Handle and PH-4520 Paddle Handle
• Non-handed, field reversible

Specify: Model Number and Finish

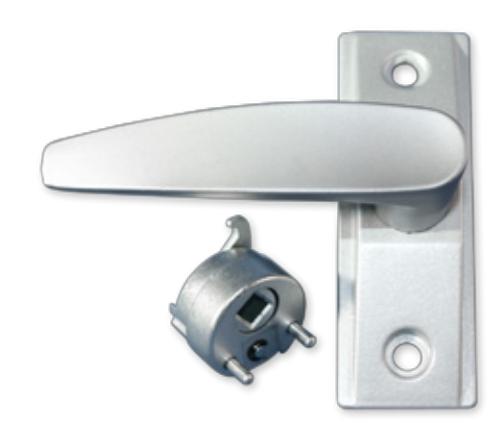

HL-4560 LEVER HANDLE

• For use with DL-4510 type Latch Lock
• Cam Plug. field reversible.
• Finishes Available:
  • AL Baked Satin Aluminum
  • BK Baked Black Paint
  • DU Baked Storefront Bronze Paint

Specify: Hand if pre-handing required Finish
