ELECTRIC POWER HINGE WITH CONCEALED WIRES

PTH HINGE

POWER TRANSFER

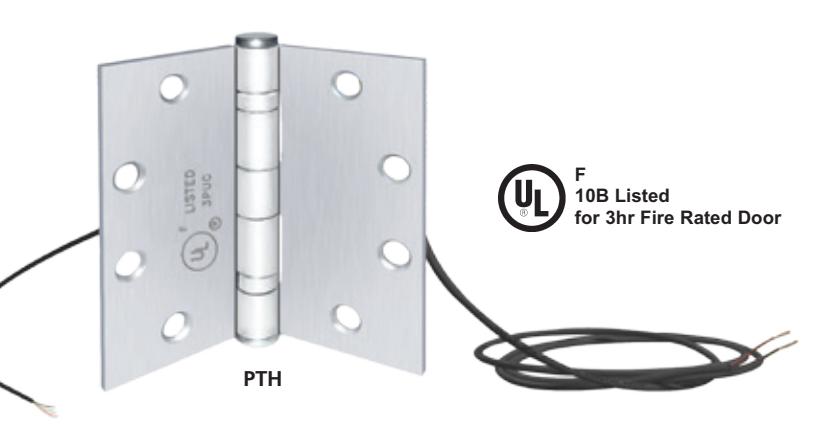

PTH Power Transfer Hinge

• UL10B listed for 3Hr fire rated doors. If the hinge you are presently using does not bear the (UL) F mark, it is not listed for use with fire doors.
• Wire replacement warranty

Applications

Installed in the center hinge position of the door, PTH Power Transfer Hinges provide the concealed wires required between the door and the frame, for the purpose of powering and monitoring electric door hardware.

• Electric Lock Power and Control
• Door and Lock Status Signaling
• Request-to-Exit Signaling

Electric Power Transfer Device

• IDC's heavy duty Electric Power Transfer Device provides a concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door.
• Completely concealed when the door is closed.
• The PTD Electric Power Transfer Device is ideal for heavy traffic and applications requiring higher security to inhibit tampering and abuse.

Model

PTH-2+4 16 Amp Inrush, 6 conductor power transfer

hinge

1-pair 16 Amp inrush, 4 Amp continuous;

2-pair 1 Amp @ 12/24V 4.5" x 4.5" standard weight 626 Dull Chrome finish

PTH-4 Four (4) Conductor Power Transfer Hinge

1 Amp @ 12/24V per pair 4.5" x 4.5" standard weight

PTH-10 Ten (10) Conductor Power Transfer Hinge

1 Amp @ 12/24V per pair 4.5" x 4.5" standard weight

Finish

All base material, steel. 626 Dull Chrome (standard) 605 Bright Brass

613 Oil Rubbed Bronze 625 Bright Chrome

Options

PTH hinge with door position switch

DPS Concealed Door Position Switch SPDT, 250mA @ 30VDC Consult factory for 3 knuckle, and special size
