Standard Features

• PT1000, PT200, PTC5E and PTC6PLUS provide the means of transferring electrical power or data from the frame to the door in a secure and discreet manner
• PTC5E and PTC6PLUS are supplied with ethernet cable
• Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position
• All metal construction including back boxes- No plastic parts
• •
• •
• Packaged individually with fasteners for wood or metal doors and frames
• • Standard Finishes:
  • US28 Brushed Aluminum
  • S5 Powder Coated Dark Bronze to match US10B Finish
• Approximate shipping weight: 3 lbs.
• • Patent Pending
• Matches competitors' door and frame prep

Standard applications:

• 1-¾" Door thickness
• Cam lift hinges (up to lift) allowing for 180 ° door swing ½"
• Butt hinges up to 5" allowing for 180° door swing
• 5 ½" butt hinges allowing for 130° door swing
• 6" butt hinges allowing for 110° door swing
• Up to ¾" offset pivots allowing for 180° door swing
• Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-½" offset pivots or center hung doors

Options

• • SEC Security Fasteners

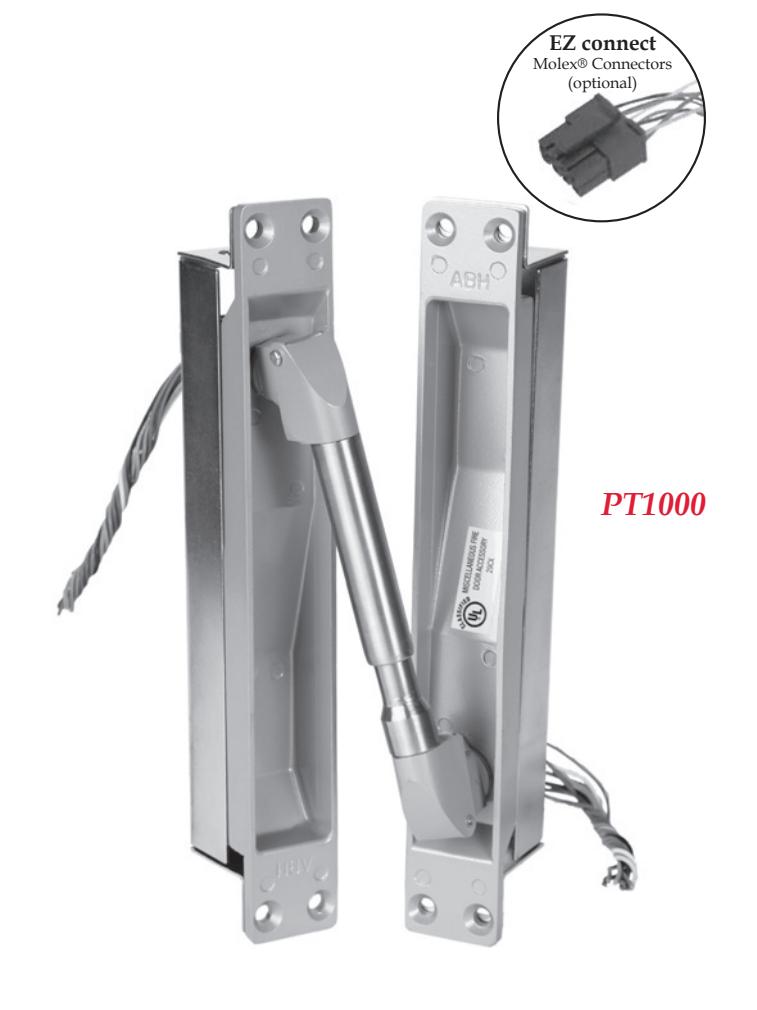

• PT1000 & PT200 available with Molex® plug-in connectors option ( ) - see picture inset

PT1000	-(10) 24 AWG Wires -Max. Rating: 24VDC, 1A
PT200	-(2) 18 AWG Wires -Max. Rating: 24 VDC, SA or 120 VAC NEC Class 3
PTC5E	-(8) 24 AWG Wires & (1) 22 AWG Wire Stranded Ethernet Cable (1 - 100 MHz) -Max. Rating: 24 VDC, 1A
PTC6PLUS	-(8) 24 AWG Wires & (1) 22 AWG Wire Stranded Ethernet Cable (1 - 250 MHz) -Max. Rating: 24 VDC, 1A
