Electrical Power Transfer Products

PT105, PT180, PTR105 and PTR180

Standard Features

• These models provide housing for running wires from the frame to the door in a secure and discreet manner
• Stainless steel housing and spring conduit
• thick
• Shipping weight: 1 lb.
• Works with most butt hinges, continuous hinges and ¾" offset pivots
• •

Options

• • SEC Security Fasteners
• • SC For swing clear application (PT180 and PTR180 models only)
• • 2WIRE Provided with (2) 18 AWG wires
• • 10WIRE Provided with (10) 24 AWG wires
• • EZ EZ Connect Molex® Plug-in Connectors for installation ease

Models Available

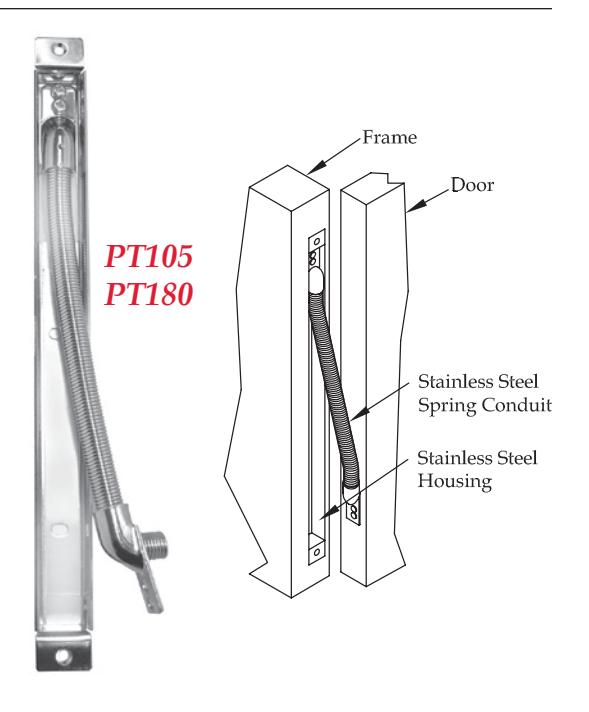

• • PT180 180 ° maximum door swing, square mounting tabs

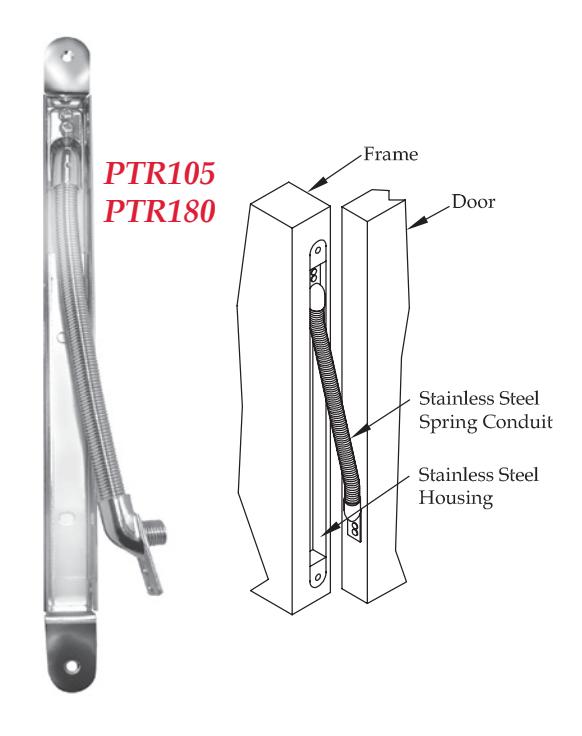

• • PTR180 180 ° maximum door swing, round mounting tabs
• • PT105 105 ° maximum door swing, square mounting tabs
• • PTR105 105 ° maximum door swing, round mounting tabs
