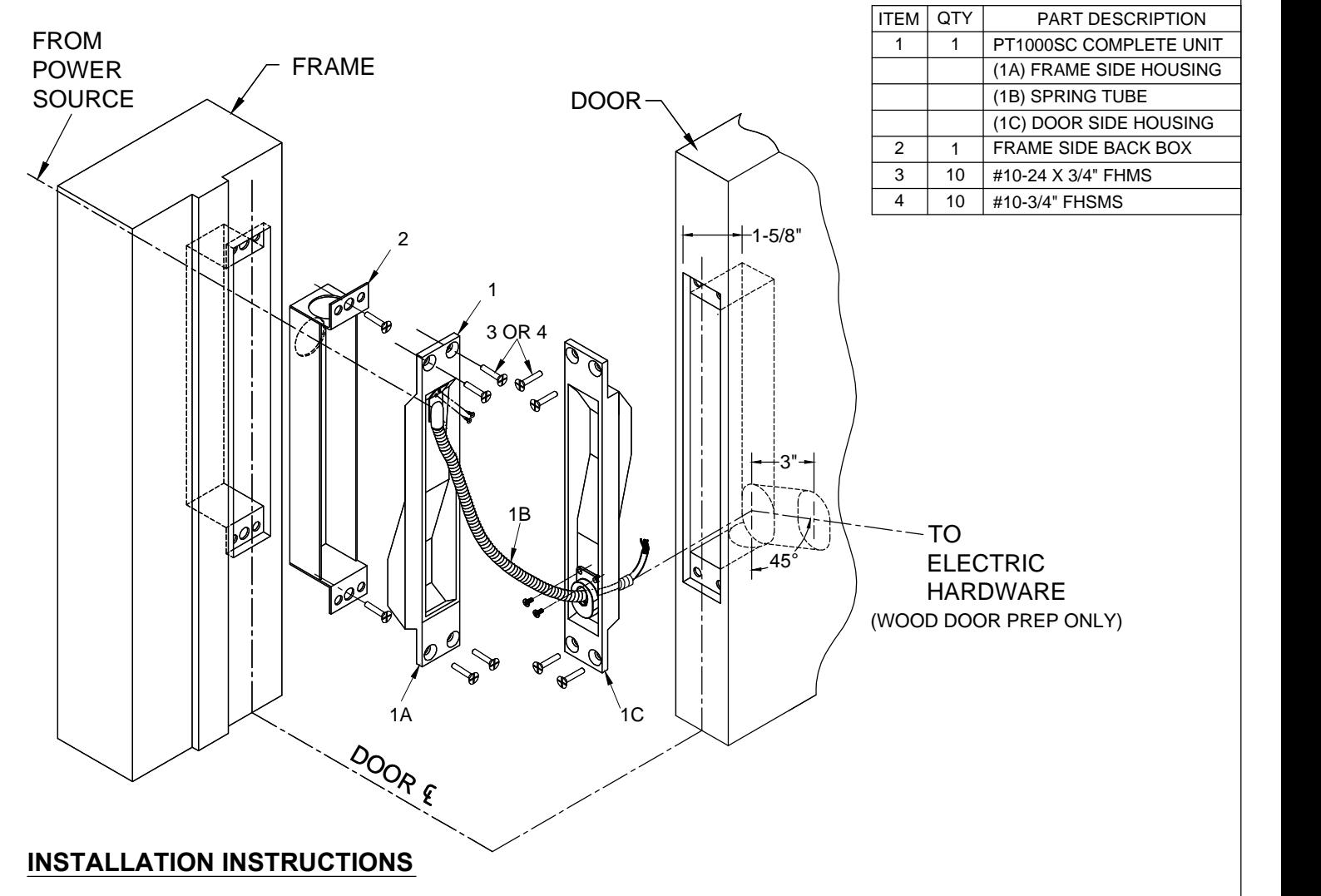

View PDFPT1000SC POWER TRANSFER TEMPLATE
-
x FOR DOOR THICKNESS 1-3/4" TO 2-1/4" x FOR USE WITH SWING CLEAR HINGES
- x '22523(1,1*72

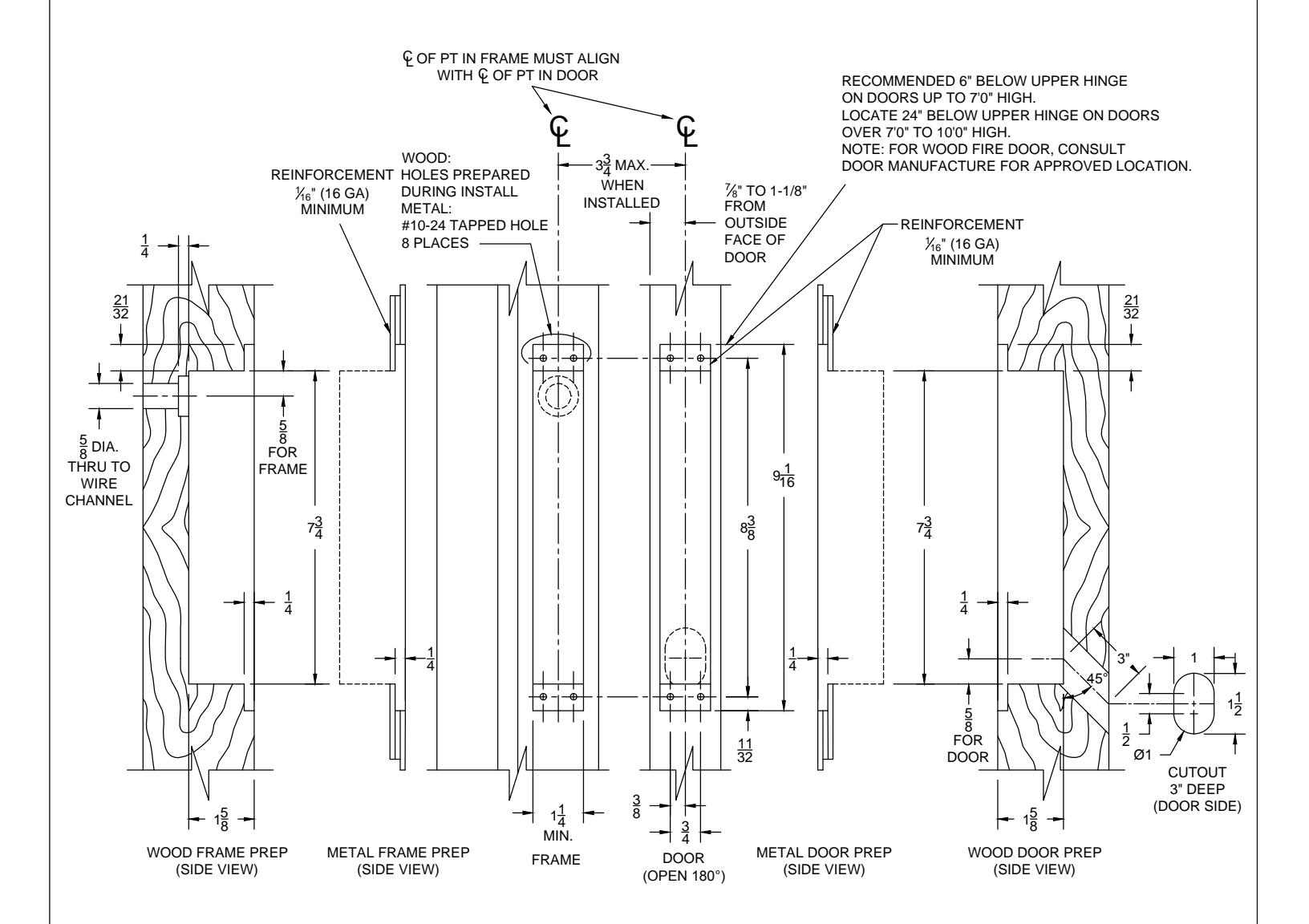

- 1. PREP DOOR AND FRAME FOR CUTOUT & REINFORCEMENT, ACCORDING TO THE TEMPLATE ON PAGE 2 (REVERSE SIDE).
- 2. INSTALL FRAME SIDE BACK BOX (ITEM #2) INTO FRAME PREP.
- 3. CONNECT WIRES FROM POWER SOURCE AND ELECTRIFIED DOOR HARDWARE TO THE POWER TRANSFER.
- 4. INSTALL PT1000SC UNIT (ITEM #1) INTO DOOR AND FRAME PREP AND FASTEN USING ;ô´0$&+,1(6&5(:6,7(0 )250(7$/'225625;ô´6+((70(7$/ SCREWS (ITEM #4) FOR WOOD DOORS.
- 5. FRAME AND DOOR PORTION MUST BE INSTALLED IN THE DIRECTION SHOWN ABOVE.
c 2018 ABH Mfg., Inc. www.abhmfg.com printed in USA
E-mail: abhinfo@abhmfg.com
PT1000SC INSTALLATION-1-03.DWG
PT1000SC
ISSUED 10-03-18 PAGE 1 OF 2
PT1000SC POWER TRANSFER
- FOR DOOR THICKNESS 1-3/4" TO 2-1/4"
- FOR USE WITH SWING CLEAR HINGES
- DOOR OPENING 90° TO 180°
| ELECTRICAL RATINGS | |
|---|---|
| PT200SC | (2) 18 AWG WIRES-MAX. RATING 24VDC, 5A OR 120VAC NEC CLASS 3 |
| PT1000SC/PT1000EZSC* | (10) 24 AWG WIRES-MAX. RATING 24VDC, 1A |
| PT1200SC/PT1200EZSC* |
(10) 24 AWG WIRES-MAX. RATING 24VDC, 1A,
(2) 18 AWG WIRES-MAX. RATING 24VDC, 5A OR 120VAC NEC CLASS 3 |
| PTC5ESC | CAT-5E CABLE WIRE, (8) 24 AWG WIRES, (1) 22 AWG WIRE |
| PTC6PLUSSC |
(8) 24 AWG WIRES & (1) 22 AWG WIRE
STANDARD ETHERNET CABLE (1 - 250 MHz) MAX. RATING: 24 VDC, 1A |
* EZ INDICATES MODEL WITH ABH EZ CONNECT WIRE CONNECTORS
