Sure Exit® PSB560 Egress Bar Pressure Sense Bar

Stable and Reliable Pressure Sense Technology. Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Meeting this criteria, SDC's patented PSB560 Sure Exit® Pressure Sense Bar is designed to release electromagnetic door locks for uninhibited egress. When slight pressure is applied to the non-latching bar, either of the two redundant solid state pressure sensors are actuated causing the electronics to immediately release the electromagnetic door locks. Now features Metal Endcaps.

FEATURES

• Tri-Failsafe. A third redundant micro switch is automatically activated to release the door if both sensors or the electronics fail. This automatic emergency release switch does not require prior knowledge to find or use. Door operation will continue without the inconvenience of emergency service. The SDC Sure Exit® is the only tri-failsafe exit bar providing unequaled safety and reliability.
• No Moving Parts, Quick and Quiet Operation. With no moving parts the pressure sense technology does not suffer wear and provides quick and quiet operation.
• Temperature Tolerant. Pressure sense technology operates from 0° to 150°F and tolerates sudden and extreme temperature changes.
• Human Touch Not Required. Unlike touch sensors, activation may be accomplished while wearing heavy gloves, by the hip through a coat, or using a briefcase. Superior egress safety is provided for frail, disabled or wheelchair confined persons unable to touch the bar and is easily activated by a cane or bump from a walker or wheelchair.
• Sensor Calibration Not Required. Stable pressure sense technology does not require adjustment or tune-in. When desired, pressure sensitivity can be increased up to 15 lbs to inhibit tampering for high security applications.
• Heavy Duty Construction. The SDC PSB560 uses heavy duty aluminum extrusion and rugged end caps. The mounting assembly is all metal, and

• no plastic. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked glass door stiles.
• Narrow, Low Profile. The Sure Exit® has a narrow profile with minimum projection from the door of only 1.875". The unobtrusive design is ideally suited for aesthetically superior glass openings.
• Two Outputs. Two dry contacts for lock release, request-to-exit, alarm shunt, alarm activation or CCTV activation.

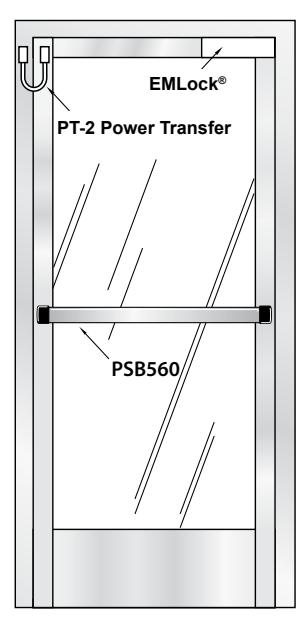

• Armored Power Loop. 18" flex stainless conduit included. The PT-2 enables wiring from the door to the frame
• 10Ft, 8 conductor cable included.
• Easy Installation and Troubleshooting. Wires plug into the PC board after the bar is mounted and the extruded cover slides on easily after the wire connections are made. For quick and easy servicing, the extruded cover slides off without removing the bar from the door exposing all internal parts.

PSB560V 628 Aluminum Anodized

PSB560Y 335 Black Anodized PSB560S 629 Bight Stainless Steel

PSB560U 630 Brushed Stainless Steel

1

PRODUCT SKU SAMPLE: PSB560V - 42

1| SPECIFY MODEL & FINISH

PSB560V 628 Aluminum Anodized PSB560Y 335 Black Anodized PSB560S 629 Bight Stainless Steel PSB560U 630 Brushed Stainless Steel

2| SPECIFY DOOR WIDTH

42 For 42" Door (May be field cut) 48 For 48" Door (May be field cut)

Standard Installation with Standard Mounting Hardware

SPECIFICATIONS

Actuation	Pressure Sense Technology; Tri-Failsafe
Voltage	12/24VDC Voltage Sensing Input
Input Current	20mA at Rest, 115 mA Active
Lock Output	SPDT, 3 Amp @ 30VDC
Alarm Shunt/Sta tus Output	SPDT, 3 Amp @ 30VDC
Operating Temp	0º to 150º F
Height	2.375"
Projection (Depth)	1.875"
Door Width	36" (Standard), 42", 48" Bars May be Field Cut
Weight	6.5 lbs
Activation Force
Factory Set	5 lbs.
Field Adjustable	Up to 15 lbs Max.

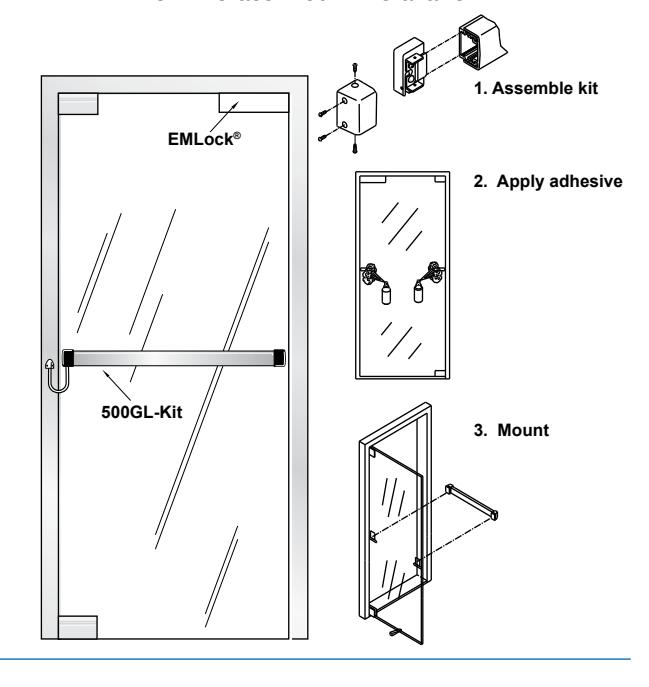

GL - Glass Mount Installation

ACCESSORIES

500GL-KIT	One Glass Door Mounting Kit with Adhesive for Eight to Ten Bars
500GL-MB	One Glass Door Mounting Kit without Adhesive
500-SK	Shim Kit Used to Raise Bar from Door. Rec ommended for Wood or Hollow Metal Doors with Uneven Mounting Surface

POWER TRANSFER

PT-3

PT-3V Stainless Steel Armored Loop with Aluminum Surface Wire Junction Box
