SureExit® Sense Bar DKK

STANDARD FEATURES

Actuation: Pressure Sense Technology; Tri-Failsafe

Voltage: 12/24VDC Voltage Sense Input Current: 20 mA at Rest, 115 mA Active Lock Output: SPDT, 3 Amp @ 30VDC

Alarm Shunt/Status Output: SPDT, 3 Amp @ 30VDC

Accessories Include:

10 ft. cable and connector; PT-2U Armored Power Transfer Loop

Standard length, 36"

MODEL	FINISH	LIST PRICE
PSB560V	628 Aluminum Anodized	381.00
PSB560Y	Black Anodized	381.00
PSB560S	629 Bright Stainless Steel	517.00
PSB560U	630 Brushed Stainless Steel	517.00

Bars for wide doors

42 Bar for 42" Door. May be field cut.	N/C
48 Bar for 48" Door. May be field cut	N/C
Ex: PSB560V-42

ACCESSORIES		LIST
500GL-KIT	One glass door mounting kit with adhesive for eight to ten bars	262.00
500GL-MB	One glass door mounting kit without adhesive	145.00
500-SK	Shim kit used to raise bar from door. Recommended for wood or hollow metal doors with uneven mounting surface.	27.00

Power Transfer:

PT-3V	Stainless steel armored loop with aluminum surface wire junction box	50.00

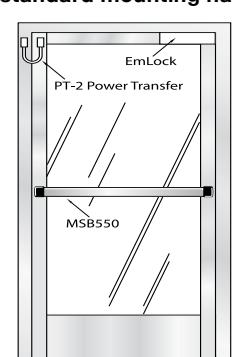

Standard Installation with standard mounting hardware

500GL Kit Glass Mount Installation

1. Assemble kit 2. Apply Adhesive 3. Mount

EXIT MECHANICAL SWITCH DK Distributor Discount Code

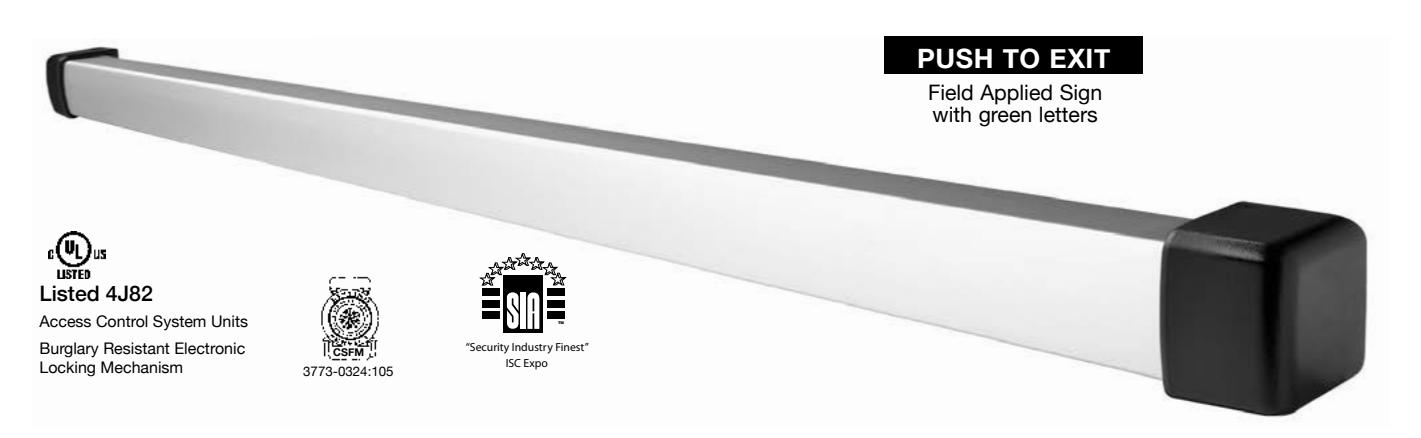

PUSH TO EXIT

Field Applied Sign with green letters

Listed 4J82

Access Control System Units Burglary Resistant Electronic Locking Mechanism

STANDARD FEATURES

Actuation: 1/8" total bar movement for mechanical switch actuation

Contact: SPDT, 5 Amp @ 30VDC (2nd switch optional) Accessories include: PT-2U Power Transfer Loop

Standard length, 36"

MODEL	FINISH	LIST PRICE
MSB550V	628 Aluminum Anodized	236.00
MSB550Y	335 Black Anodized	244.00
MSB550S	629 Bright Stainless Steel	392.00
MSB550U	630 Brushed Stainless Steel	392.00

2 SPDT Contacts

ADD 32.00

Add "2" for 2nd mechanical switch for dual-failsafe redundant operation; alarm shunt; or monitoring output. Ex: MSB550-2V

Bars for wide doors

42 Bar for 42" Door. May be field cut.	N/C
48 Bar for 48" Door. May be field cut	N/C
Ex: MSB550V42

EXIT MECHANICAL SWITCH - OUTDOOR WEATHER RESISTANCE DK Distributor Discount Code

PUSH TO EXIT Field Applied Sign with green letters

STANDARD FEATURES

OUTDOOR, WEATHER RESISTANCE

Water Sealed Switches

Actuation: 1/8" total bar movement for mechanical switch actuation

Contact: SPDT, 5 Amp @ 30VDC (2nd switch included) Accessories include: PT-3V Power Transfer Loop, 2 SPDT

Contacts included

Standard length, 36"

MODEL	FINISH	LIST PRICE
MSB550-2VW	628 Aluminum Anodized	388.00
MSB550-2YW	335 Black Anodized	388.00

Bars for wide doors

42 Bar for 42" Door. May be field cut.	N/C
48 Bar for 48" Door. May be field cut	N/C
Ex: MSB550-2VW42
