PS440B/480B

• • Built to run up to 4 or 8 locks, exit trim & lp motor / solenoid kits
• • Robust solid-state outputs Protects system relays
• • Interruption free battery back-up
• • Built to last in the usa

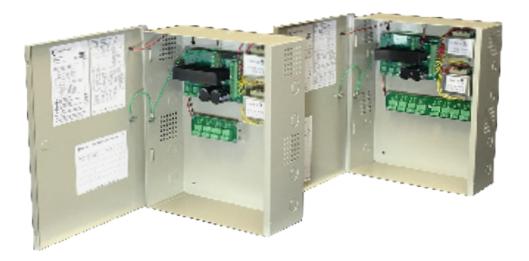

PS440/480B - 110-120VAC input power supplies that deliver (4) amps @ 24VDC to (4) or (8) PTC fused outputs. (4) or (8) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

SPECIFICATIONS

Input Voltage:

• • 120 VAC, 60 Hz,
• • Input Fuse: 2 Amp Fuse @ 250VAC

Output Voltage:

• • 4A @ 24VDC
• • 4 Solid State I/O's 1.5A auto resetting fused outputs
• • 8 Solid State I/O's .75A auto resetting fused outputs
• • Over-voltage protection
• • Output Voltage trim pot

Battery Backup:

• • Regulated, independent battery charging
• • Automatic uninterrupted backup circuit
• • Battery cables included
• • Requires (2) 12VDC 7AH batteries
• • Batteries not included

Fire Alarm:

• Fire alarm link

FEATURES

LED's:

• • Red = A/C Power indicator
• • Green = D/C Output indicator
• • Orange = Battery Output Indicator

Features & Benefits:

• • Linear design insures ample inrush/hold current for latch retraction
• • Door mounted LED Power Indicator
• • Easy to remove euro connectors

Listings:

• UL294 6th Edition

Mechanical Details:

• • Enclosure dimensions: PS440B (13" W x 15.5" H x 5" D); PS480B (13" W x 15.5" H x 5" D).
• • 1/2" & 3/4" knockouts on all sides
• • Hinge-less removable cover; Cam lock not provided
• • PS440/480B accommodates (2) 12VDC 7AH batteries
• • Product Weight: PS440/480B 14 lbs
• • Shipment Weight: PS440/480B 15 lbs

Electrical:

• • Temperature range: 0 to 49° C; 32 to 120° F
• • Maximum humidity: 85%

PART #	EASY ORDER #	# DESCRIPTION
PS440B	78853	4 I/0's w/ battery back up.
PS480B	78854	8 I/0's w/ battery back up.

Power Supply Matrix

PS LINE 24VDC	AMPERAGE (CONTINUOUS)	AMPERAGE (BOOST)	INPUTS	OUTPUTS	BATTERY BACK-UP	FIRE ALARM LINK	24V POWER TAP (CONSTANT POWER)	LOCKING HARDWARE (MORTISE /CYLINDRICAL LOCK/EXIT TRIM)	LOCKING HARDWARE (MOTORIZED EXIT DEVICES)	LOCKING HARDWARE (SOLENOID EXIT DEVICE PIN300)	LOCKING HARDWARE (SOLENOID EXIT DEVICE LPM/PM300HO)	METAL ENCLOSURE
PS210	1.5	2.5	1	1	-	_1	-	2 2	2 2	2 2	2 2	S
PS220	2	3	2	2	-	✓	✓	2	2	2	2	S
PS220B	2	3	2	2	✓	✓	✓	2	2	2	2	L
PS440B	4	6	4	4	✓	✓	-	4	4	4	3	L
PS480B	4	6	8	8	✓	✓	-	8	8	8	-	L
PS204	2	3	4	4	-	✓	_	4	4	_	-	S
PS204B	2	3	4	4	✓	✓	-	4	4	_	-	L
PS1	1	-	1	1	-	_1	-	2 2	2 2	2 2	2 2	S
PS5-4	5	-	4	4	✓	✓	-	4	4	4	4	L

^& lt;sup>1</sup>Can be wired in through the input, see instructions for more detail

SMALL ENCLOSURE: 11" x 11" x 4" LARGE ENCLOSURE: 13" x 15.5" x 5"

^& lt;sup>2</sup>1 output powers 2 devices/locks simultaneously
