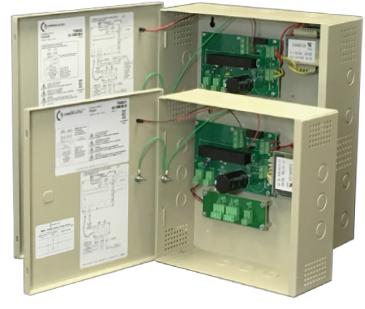

PS220/220B

• • Built to run up to 2 locks, exit trim & lp motor / solenoid kits
• • Robust solid-state outputs Protects system relays
• • Interruption free battery back-up
• • Built to last in the usa

PS220/220B - 110-120VAC input power supplies that deliver (2) amps @ 24VDC to (2) PTC fused outputs. (2) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

SPECIFICATIONS

Input Voltage:

• 120 VAC, 60 Hz,
• Input Fuse: 2 Amp Fuse @ 250VAC

Output Voltage:

• 2A @ 24VDC
• 2 Solid State I/O's 1 A auto resetting fused outputs
• Power tap: .5A @ 24VDC
• Over-voltage protection
• Output Voltage trim pot

Battery Backup:

• Regulated, independent battery charging
• Automatic uninterrupted backup circuit
• Battery cables included
• Requires (2) 12VDC 7AH batteries
• Batteries not included

Fire Alarm:

• Fire alarm link

FEATURES

LED's:

• Red = A/C Power indicator
• Green = D/C Output indicator
• Orange = Battery Output Indicator

Features & Benefits:

• Linear design insures ample inrush/hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors

Listings:

• UL294 6th Edition

Mechanical Details:

• Enclosure dimensions: PS220 (11" W x 11" H x 4" D). PS220B (13" W x 15.5" H x 5" D).
• 1/2" & 3/4" knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• PS220B accommodates (2) 12VDC 7 aH batteries
• Product Weight: PS220 10lbs; PS220B 14 lbs
• Shipment Weight: PS220 11lbs; PS220B 15 lbs

Electrical:

• Temperature range: 0 to 49° C; 32 to 120° F
• Maximum humidity: 85%

How to Order

PART #	ASY ORDER	# DESCRIPTION
PS220	78851	W/O battery back up.
PS220B	78852	W/ battery back up.

Power Supply Matrix

PS LINE 24VDC	AMPERAGE (CONTINUOUS)	AMPERAGE (BOOST)	INPUTS	OUTPUTS	BATTERY BACK-UP	FIRE ALARM LINK	24V POWER TAP (CONSTANT POWER)	LOCKING HARDWARE (MORTISE / CYLINDRICAL LOCK/EXIT TRIM)	LOCKING HARDWARE (MOTORIZED EXIT DEVICES)	LOCKING HARDWARE (SOLENOID EXIT DEVICE PM300)	LOCKING HARDWARE (SOLENOID EXIT DEVICE LPMPM300HO)	METAL ENCLOSURE
PS210	1.5	2.5	1	1	-	_1	-	2 2	2 2	2 2	2 2	S
PS220	2	3	2	2	1	>	✓	2	2	2	2	S
PS220B	2	3	2	2	>	>	✓	2	2	2	2	L
PS440B	4	6	4	4	✓	✓	-	4	4	4	3	L
PS480B	4	6	8	8	✓	✓	-	8	8	8	-	L
PS202	2	3	2	2	-	✓	-	2	2	-	-	S
PS202B	2	3	2	2	✓	✓	-	2	2	-	-	L
PS204	2	3	4	4	-	>	-	4	4	-	-	S
PS204B	2	3	4	4	>	>	-	4	4	-	-	L
PS1	1	-	1	1	1	_1	-	2 2	2 2	2 2	2 2	S
PS5-4	5	-	4	4	✓	✓	-	4	4	4	4	L

^& lt;sup>1</sup>Can be wired in through the input, see instructions for more detail

SMALL ENCLOSURE: 11" x 11" x 4"

LARGE ENCLOSURE: 13" x 15.5" x 5"

^& lt;sup>2</sup>1 output powers 2 devices/locks simultaneously
