Locking Hardware Power Supplies

PS1

• Built to run up to 1 locks, exit trim & lp motor / solenoid kits
• Robust solid-state outputs Protects system relays
• Built to last in the usa

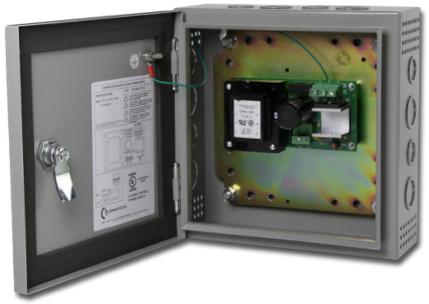

PS1 - 110-120VAC input power supplies that deliver (1) amps @ 24VDC to (1) PTC fused outputs. (1) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

SPECIFICATIONS

Input Voltage:

• 120 VAC, 60 Hz,
• Input Fuse: 2 Amp Fuse @ 250VAC

Output Voltage:

• 1A @ 24VDC
• 1 Solid State I/O's 1A auto resetting fused outputs
• Over-voltage protection
• Output Voltage trim pot

Fire Alarm:

• Fire alarm contacts can be wired in series with input trigger to achieve fire alarm disconnect.

Listings:

• UL294
• CSA

FEATURES

LED's:

• Red = A/C Power indicator
• Green = D/C Output indicator
• Orange = Battery Output Indicator

Features & Benefits:

• Linear design insures ample inrush/hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors
• Intelligent short circuit detection

Mechanical Details:

• Enclosure dimensions: PS1 (11" W x 11" H x 4" D)
• 1/2" & 3/4" knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• Product Weight: PS1 14 lbs
• Shipment Weight: PS1 15 lbs

Electrical:

• Temperature range: 0 to 49° C; 32 to 120° F
• Maximum humidity: 85%

How to Order

PART #	EASY ORDER #	# DESCRIPTION
PS1	70003	1 Inputs/Outputs w/out battery back up.

Power Supply Matrix

PS LINE 24VDC	AMPERAGE (CONTINUOUS)	AMPERAGE (BOOST)	INPUTS	OUTPUTS	BATTERY BACK-UP	FIRE ALARM LINK	24V POWER TAP (CONSTANT POWER)	LOCKING HARDWARE (MORTISE/CYLINDRICAL LOCK/EXIT TRIM)	LOCKING HARDWARE (MOTORIZED EXIT DEVICES)	LOCKING HARDWARE (SOLENOID EXIT DEVICE PM300)	LOCKING HARDWARE (SOLENOID EXIT DEVICE LPMIPM300HO)	METAL ENCLOSURE
PS210	1.5	2.5	1	1	-	_1	-	2 2	2 2	2 2	2 2	S
PS220	2	3	2	2	-	>	>	2	2	2	2	S
PS220B	2	3	2	2	>	>	>	2	2	2	2	L
PS440B	4	6	4	4	>	>	-	4	4	4	3	L
PS480B	4	6	8	8	>	>	1	8	8	8	-	L
PS202	2	3	2	2	ı	>	ı	2	2	ı	-	S
PS202B	2	3	2	2	>	>	-	2	2	-	-	L
PS204	2	3	4	4	-	>	-	4	4	-	-	S
PS204B	2	3	4	4	>	>	-	4	4	-	-	L
PS1	1	-	1	1	-	_1	-	2 2	2 2	2 2	2 2	S
PS5-4	5	-	4	4	✓	✓	-	4	4	4	4	L

^& lt;sup>1</sup>Can be wired in through the input, see instructions for more detail

SMALL ENCLOSURE: 11" x 11" x 4" L/

LARGE ENCLOSURE: 13" x 15.5" x 5"

^& lt;sup>2</sup>1 output powers 2 devices/locks simultaneously
