PS-EXIT

Power Supply for Exit Devices

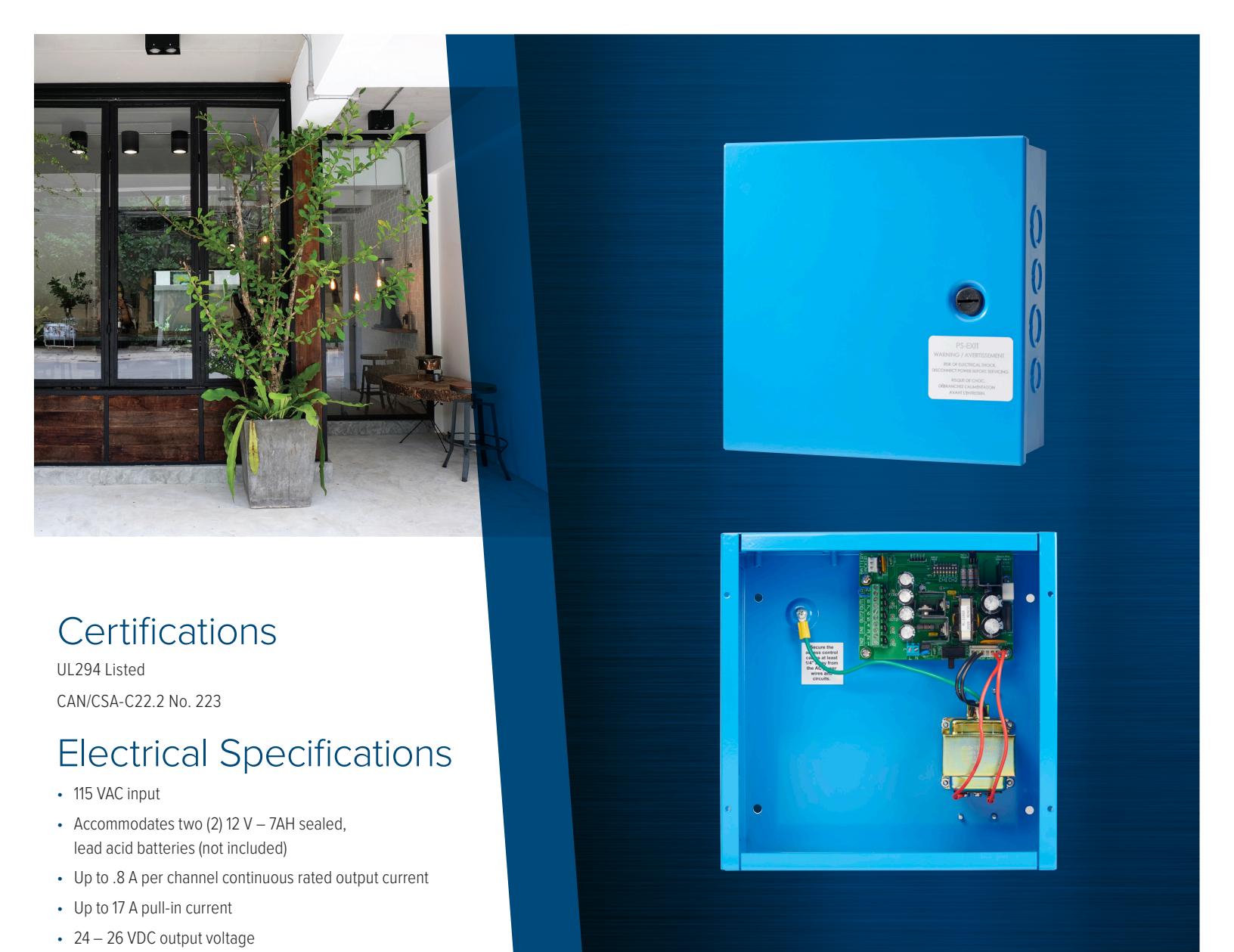

The PS-EXIT Power Supply is specifically designed to protect and optimize the performance of Adams Rite 8000/3000 Series exit devices with Motorized Latch Retraction (MLR) or Electric Latch Retraction (LR) options by delivering filtered and regulated power.

Protection & Efficiency

• Delivers regulated and filtered clean power for increased performance
• Power and control up to two MLR or LR exit devices in single or dual input operations
• Operating mode: single or double swinging doors

Strong, durable construction

• Blue, baked enamel finish with knockouts for conduit connections
• Available with integrated fire alarm connection
• Extends warranty to 5 years on 8000 Exit Devices with MLR or LR option

Flexible design

• Exclusively designed for Adams Rite 8000/3000 Exit Devices with MLR or LR option
• Designed to power applications where access control and accessibility is required and high performance is expected
• Produces fail-secure response, with free mechanical egress, for exit devices during complete power failure

How to Order, Related & Compatible Products

PS-EXIT Power Supply: Specify quantity and the following information. Order compatible products separately.

MODEL	POWER SUPPLY
PS	-EXIT
	EXIT Power Supply for exit devices with MLR and LR options

RELATED

When purchasing this product, please consider the following available separately:

ACCESSORIES	POWER
BBK-EXIT Battery Charger Kit	4612 Power Transfer Device, 4605 Transformer, 4603 Rectifier

COMPATIBLE

8000 Series exit devices with MLR or LR option
