PRO8000 and PRO8000H Series Door Closers With or Without 8148 , 8548 Drop Plate Parallel Rigid Arm with Offset S…_80-7380-1414-020

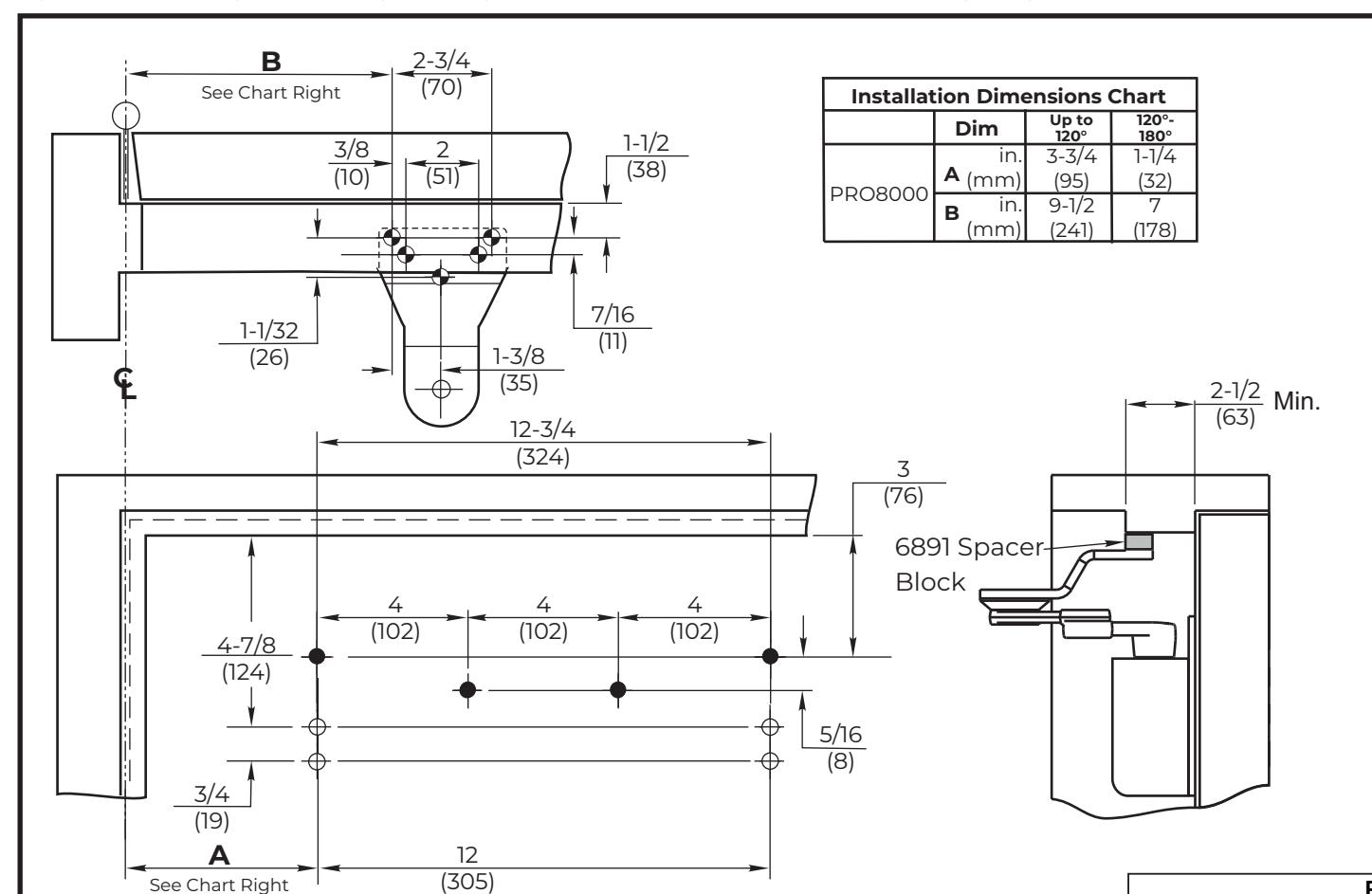

Prepare These Holes For Soffit

Prepare These Holes When Not Using No. 8148 Drop Plate

Prepare These Holes Only When No. 8148 Drop Plate is Used

Plate

See Chart Right

NOTES:

• · Do not scale drawing.
• · Left hand door shown.
• · Dimensions are in inches (mm).
• · Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
• · Sex-bolts required for wood or plastic faced fire-door mounting.
• · Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm).
• · For closer installation and adjustments , refer to standard PR installation instruction provided with product.

CAUTION: Door swing may be limited by door, frame, wall, or hardware conditions.

NOTE: Pilot hole MUST be drilled when installing on wood doors/frames.

Preparation for Fasteners Fasteners Door or Frame Drill-Sizes Self-Drilling Screw Wood (see Note) 3/16" (4.30 mm) 1/4" - 20 machine screw Metal Drill: #7 (0.201" dia.) Tap: 1/4" - 20 Sleeve nuts and bolts Hollow Metal 9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer Aluminum or Wood 3/8" (9.5 mm) through Aluminum or Metal No drill required

PRO8000 and PRO8000H Series Door Closers With or Without 8148 / 8548 Drop Plate Parallel Rigid Arm with Offset Soffit Plate for Extra Drop Clearance Non-Hold Open or Hold Open Arm Application

1

TEMPLATE NUMBER REV 80-7380-1414-020 04/23

DATE
