PRO8000 and PRO8000H Series Door Closers With or Without 8148, 8158, 8548 Drop Plate Parallel Rigid Arm with Offse…_80-7380-1413-020

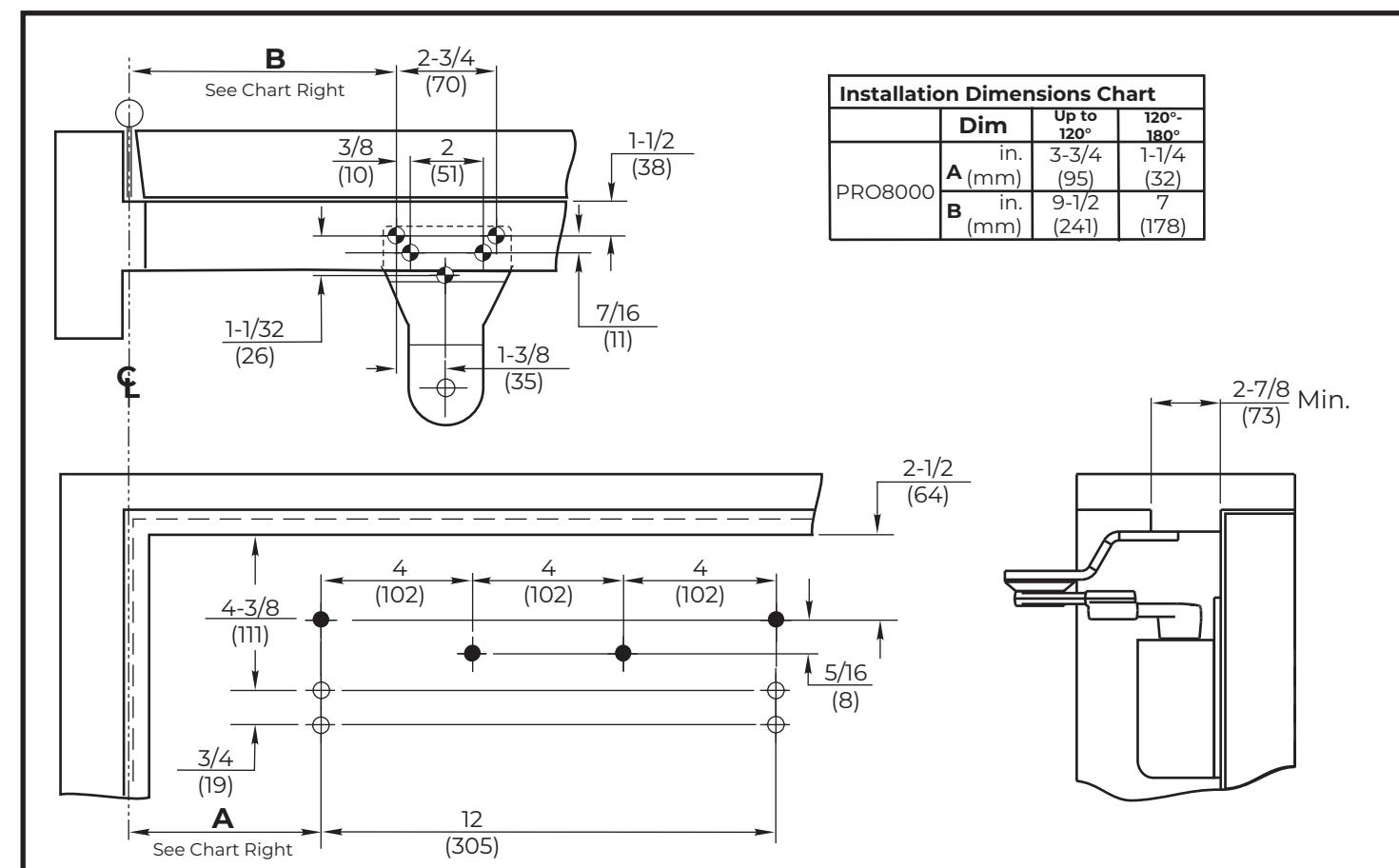

Prepare These Holes For Soffit

Using Drop Plate

Prepare These Holes When Not

Prepare These Holes Only When No. 8148/8158/8548 Drop Plate is Used

Plate

NOTES:

• · Do not scale drawing.
• · Left hand door shown.
• · Dimensions are in inches (mm).
• · Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
• · Sex-bolts required for wood or plastic faced fire-door mounting.
• · Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm).
• · For closer installation and adjustments , refer to standard PR installation instruction provided with product.

CAUTION: Door swing may be limited by door, frame, wall, or hardware conditions.

NOTE: Pilot hole MUST be drilled when installing on wood doors/frames.

Preparation for Fasteners Fasteners Door or Frame Drill-Sizes Self-Drilling Screw Wood (see Note) 3/16" (4.30 mm) 1/4" - 20 machine screw Metal Drill: #7 (0.201" dia.) Tap: 1/4" - 20 Sleeve nuts and bolts Hollow Metal 9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer Aluminum or Wood 3/8" (9.5 mm) through Aluminum or Metal No drill required

PRO8000 and PRO8000H Series Door Closers With or Without 8148/8158/8548 Drop Plate Parallel Rigid Arm with Offset Soffit Plate for Extra Drop Clearance Non-Hold Open or Hold Open Arm Application

TEMPLATE NUMBER REV 80-7380-1413-020 04/23

DATE

1
