PRO7700 and PRO7700H Series Sized Door Closers,PRO7500 and PRO7500H Series Multi-Size Door Closers With or Witho…_80-7377-1413-020

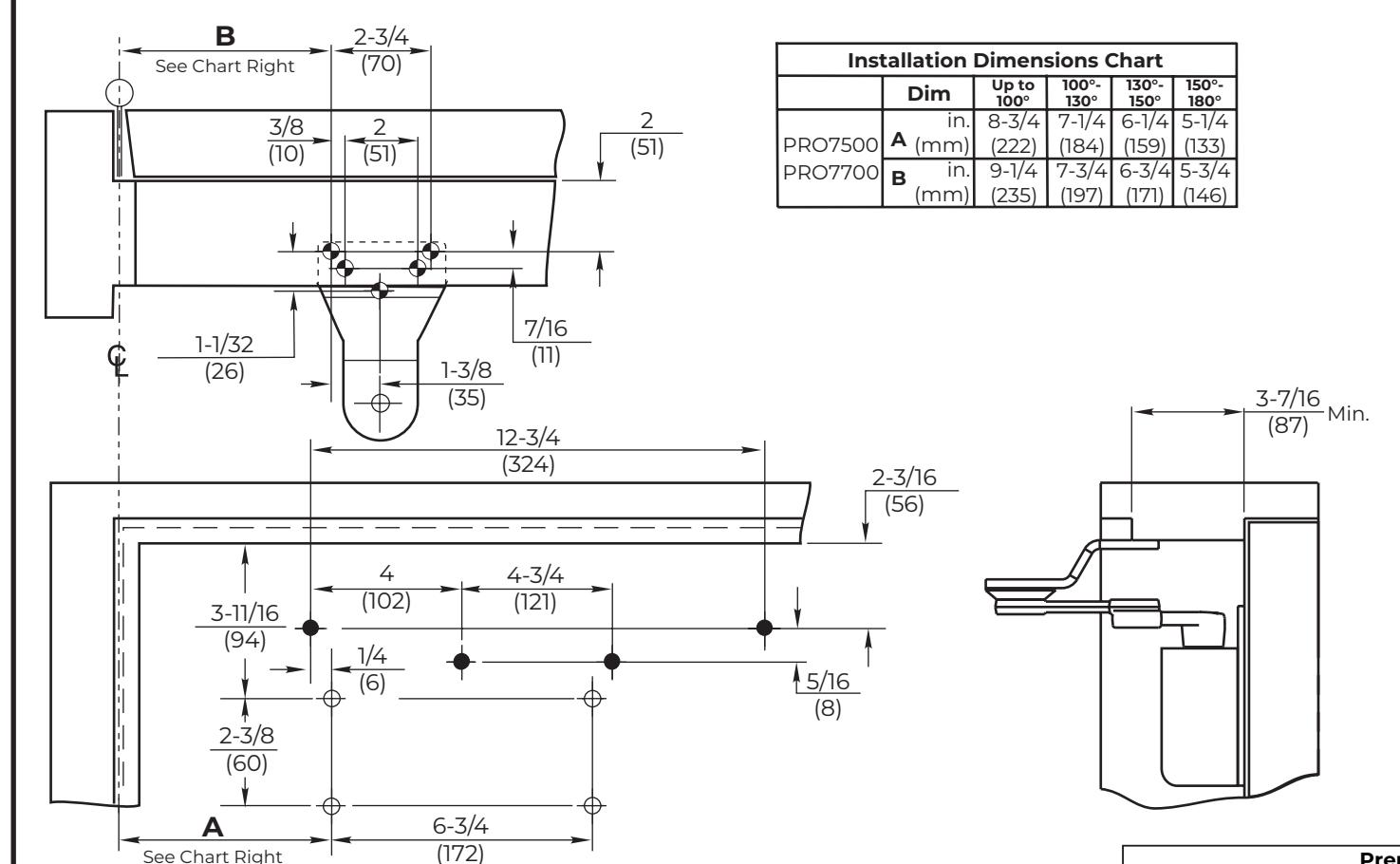

Prepare These Holes Only When

No. 7788 Drop Plate is Used

Prepare These Holes When Not

Using No. 7788 Drop Plate

Prepare These Holes For Soffit

Plate

NOTES:

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm).
• Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
• Sex-bolts required for wood or plastic faced fire-door mounting.
• Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm).
• For closer installation and adjustments, refer to standard PR installation instruction provided with product.

CAUTION: Door swing may be limited by door, frame, wall, or hardware conditions.

NOTE: Pilot hole MUST be drilled when installing on wood doors/frames.

Preparation for Fasteners Fasteners Door or Frame Drill-Sizes Aluminum No drill required or Metal Self-Drilling Screw 3/16" (4.30 mm) Wood (see Note) Drill: #7 (0.201" dia.) 1/4" - 20 machine screw Metal Tap: 1/4" - 20 9/32" (7 mm) through; Hollow 3/8" (9.5 mm) door face Metal Sleeve nuts and bolts opposite to closer Aluminum 3/8" (9.5 mm) through or Wood

PRO7700 and PRO7700H Series Sized Door Closers PRO7500 and PRO7500H Series Multi-Size Door Closers With or Without 7788 Drop Plate. To Clear 1-5/8" x 5/8" Coordinator Parallel Rigid Arm with Offset Soffit Plate for Extra Drop Clearance Non-Hold Open or Hold Open Arm Application Approved 2023-04-14
