POD MODULE

INSERT INSTRUCTIONS

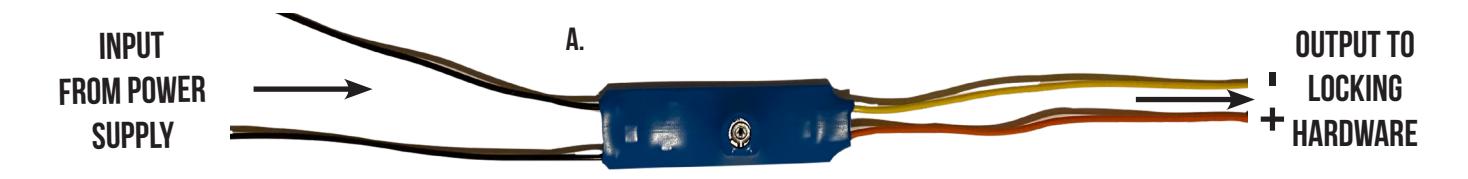

The Power On Delay module is placed in-line & provides a built-in adjustable delay from .5-5 seconds for all types of electrified hardware: mortise & cylindrical locks, strikes, exit trim, & motorized latch rertractions kits.

INCLUDES

A. 1- POD MODULE

SPECIFICATIONS

• INPUT VOLTAGE: 12V 24VDC
• ADJUSTABLE DELAY: .5 5 SECONDS
• MAXIMUM OUTPUT CURRENT: 1 A
• THE DELAY IS ON THE YELLOW (-)

TRIM POT ADJUSTMENT- USE A SMALL PHILLIPS SCREW DRIVER

• INCREASE DELAY = TURN THE DIAL CLOCKWISE.
• DECREASE DELAY = TURN THE DIAL COUNTER-CLOCKWISE

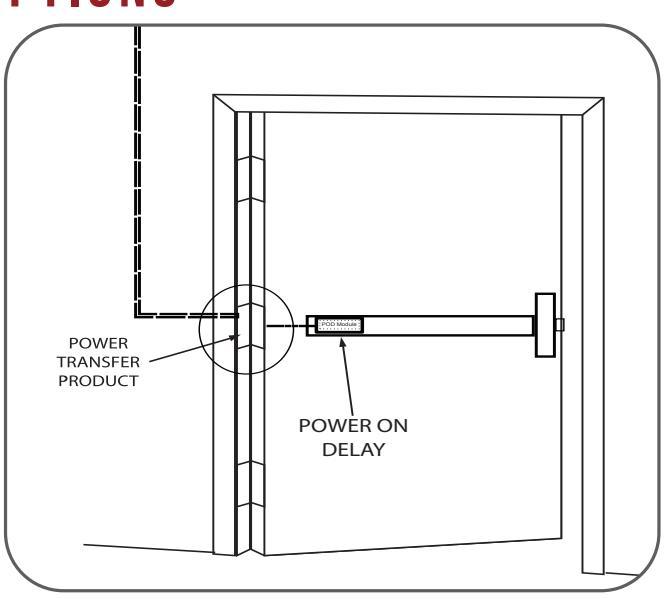

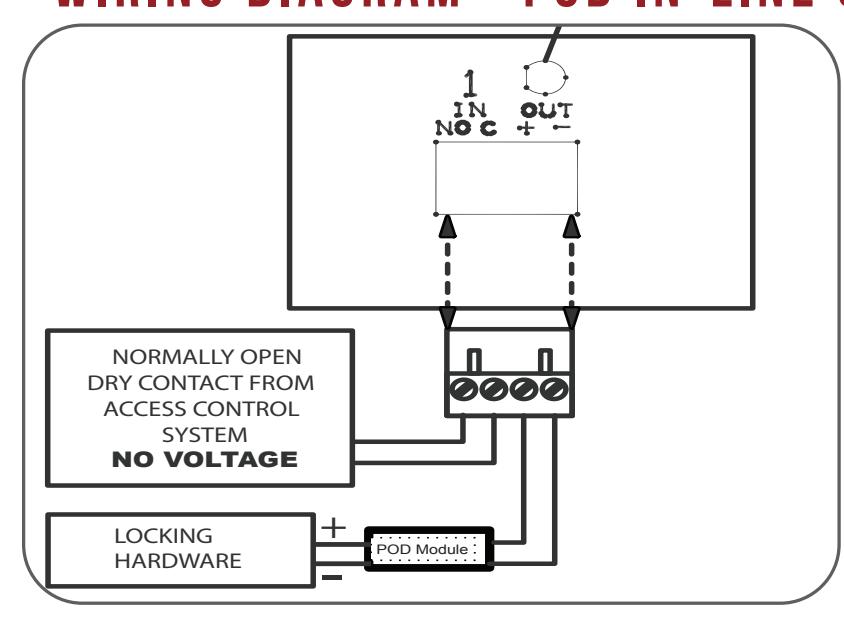

WIRING DIAGRAM - POD IN-LINE OPTIONS
