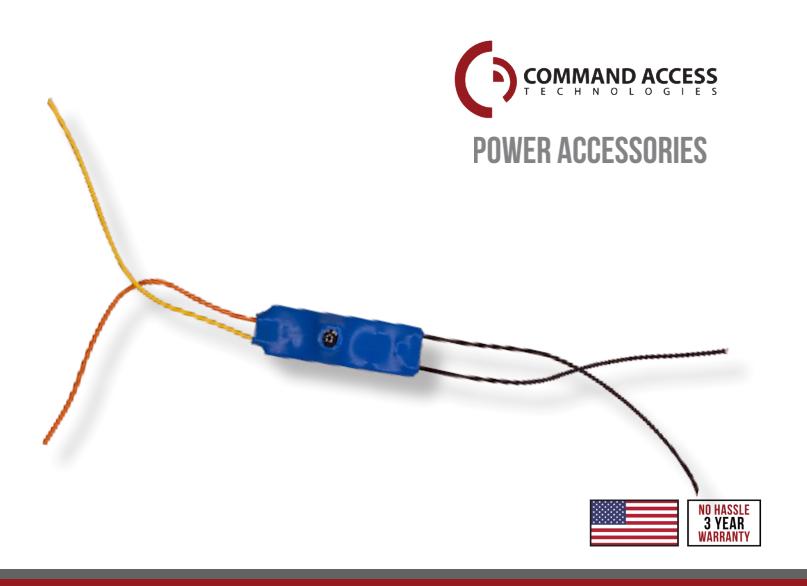

POD Module

Power-On Delay module

• In-line Delay module
• Adjustable from 0-5 seconds
• 12 or 24VDC
• 1A MAX

The POD (Power-On Delay) Module is an in-line delay module for cost-effective delay activation of any electrified locking products. Ideal for latch retraction vestibule situations, sequencing, or time delays. Also, it helps installers in a pinch with a double door scenario where 1 set of 18ga is split above the door, causing one leaf not to retract properly. The potentiometer allows for a .30-5 second delay.

SPECIFICATIONS

Voltage:

• Input Voltage range: 11-30VDC • Output Voltage range: 12VDC • Maximum Output Current: 1A

Product Details:

• Module: 2.375" x .875" x .75"

• Weight: .2 lbs

FEATURES

• Add adjustable time delay to your locking hardware for vestibule situations.
• Robust 1A Max- Works with our MLRK1 kits.
• Adjustability delay activation from 0-5 seconds.
• Great tool for installers to have on their truck.
• Problem solver- Helpful for double door sharing 1 set of 2-18ga.

How to Order

PART # EASY ORDER # DESCRIPTION

POD MODULE 79014 Power on Delay Module for locking hardware
