PDQ SDS-XLS Template SDS32344 Rev0

SDS Cylindrical

TEMPLATE: SDS32344

REV. 0 4-1-2019

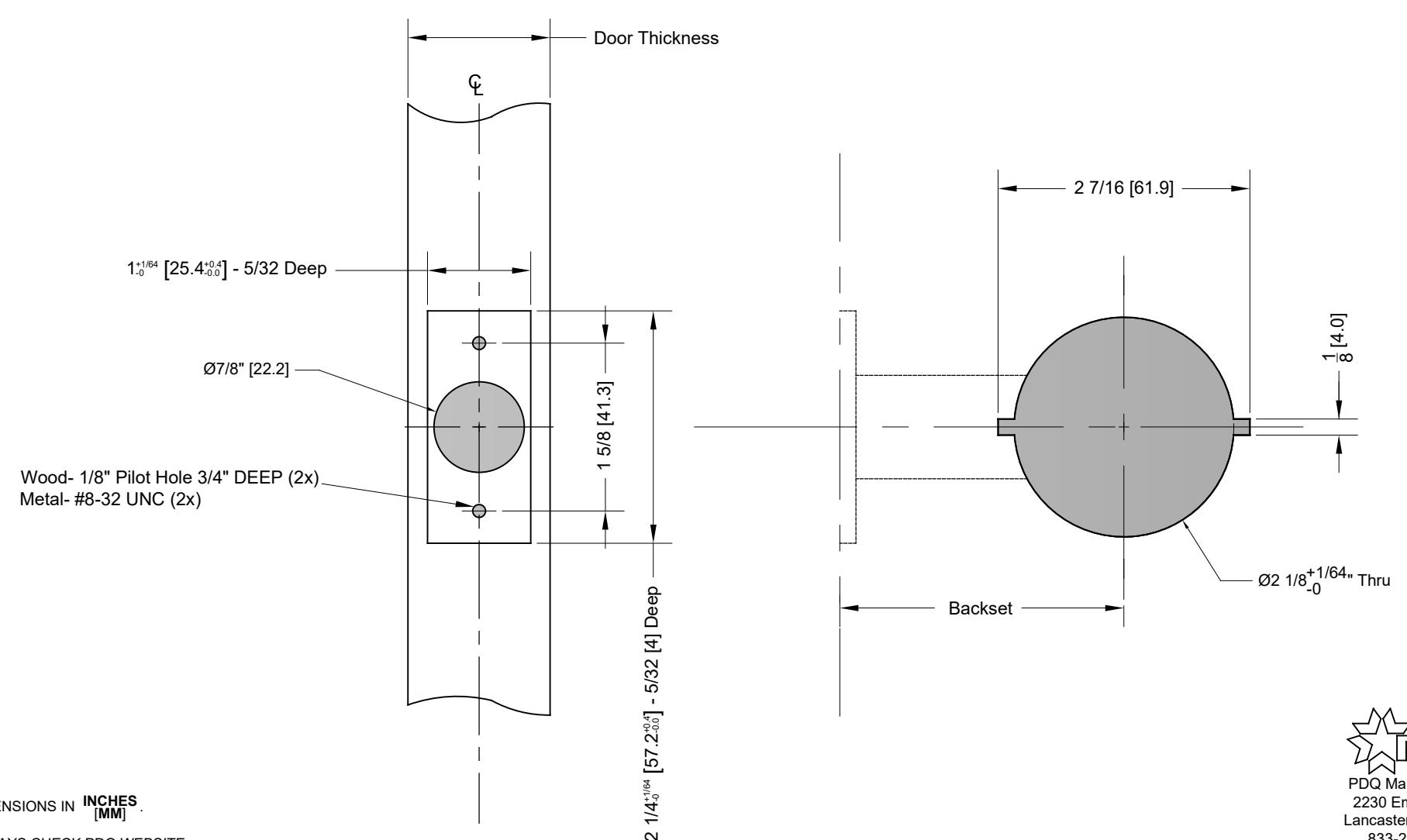

Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness: 1 3/8" [34.9]

2 3/8" [60.3] - 2 3/4" [69.9] Backset: 1" [25.4] Square Corner Faceplate:

NOTES:

1. DIMENSIONS IN INCHES

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
