PDQ SDS-XLS Template SDS32343 Rev0

SDS Cylindrical

TEMPLATE: SDS32343

REV. 0 4-1-2019

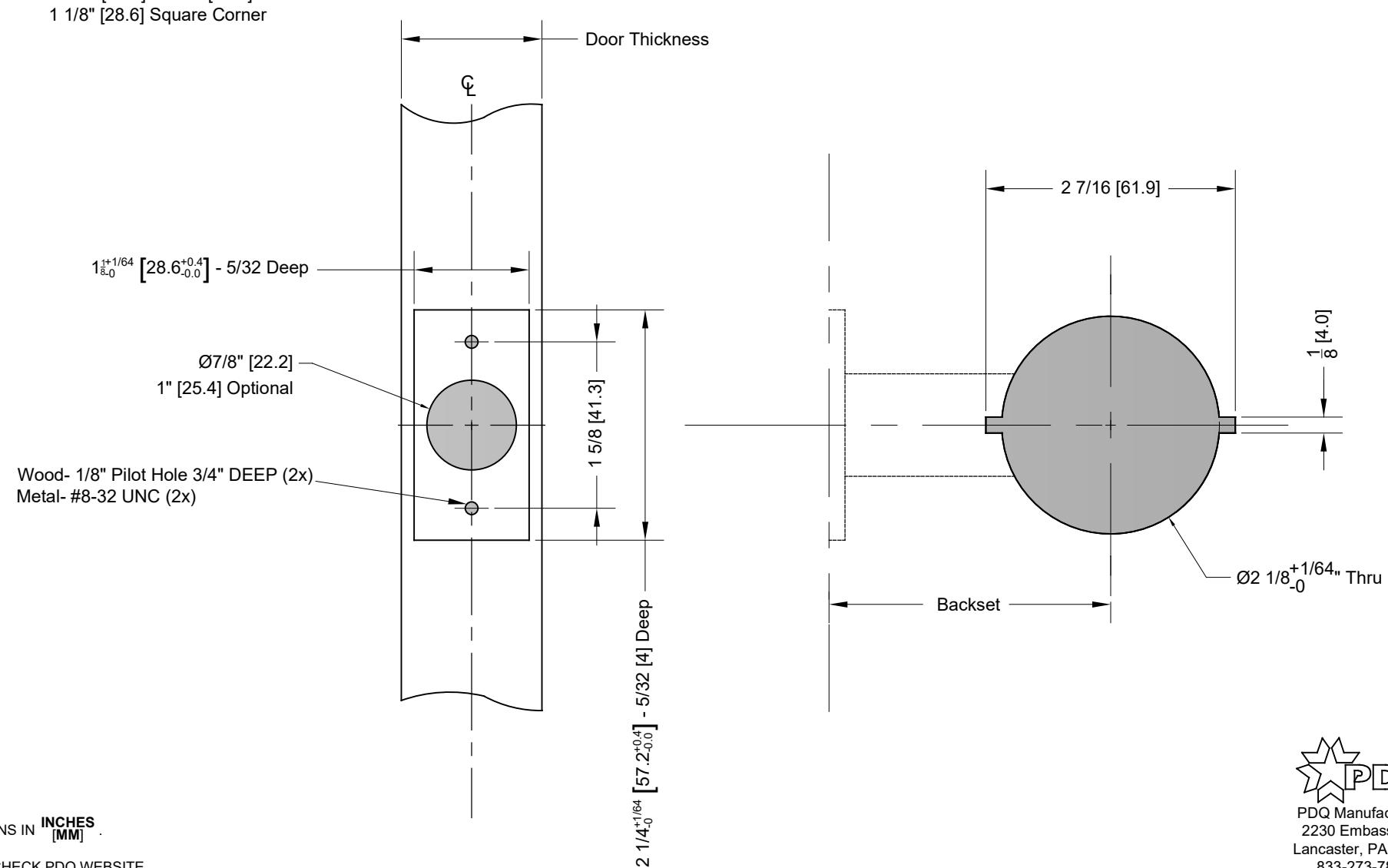

Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness: 1 3/4" [44.5]

Backset: 2 3/4" [69.9]- 2 3/8" [69.9] Faceplate: 1 1/8" [28.6] Square Corner

NOTES:

1. DIMENSIONS IN INCHES [MM]

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
