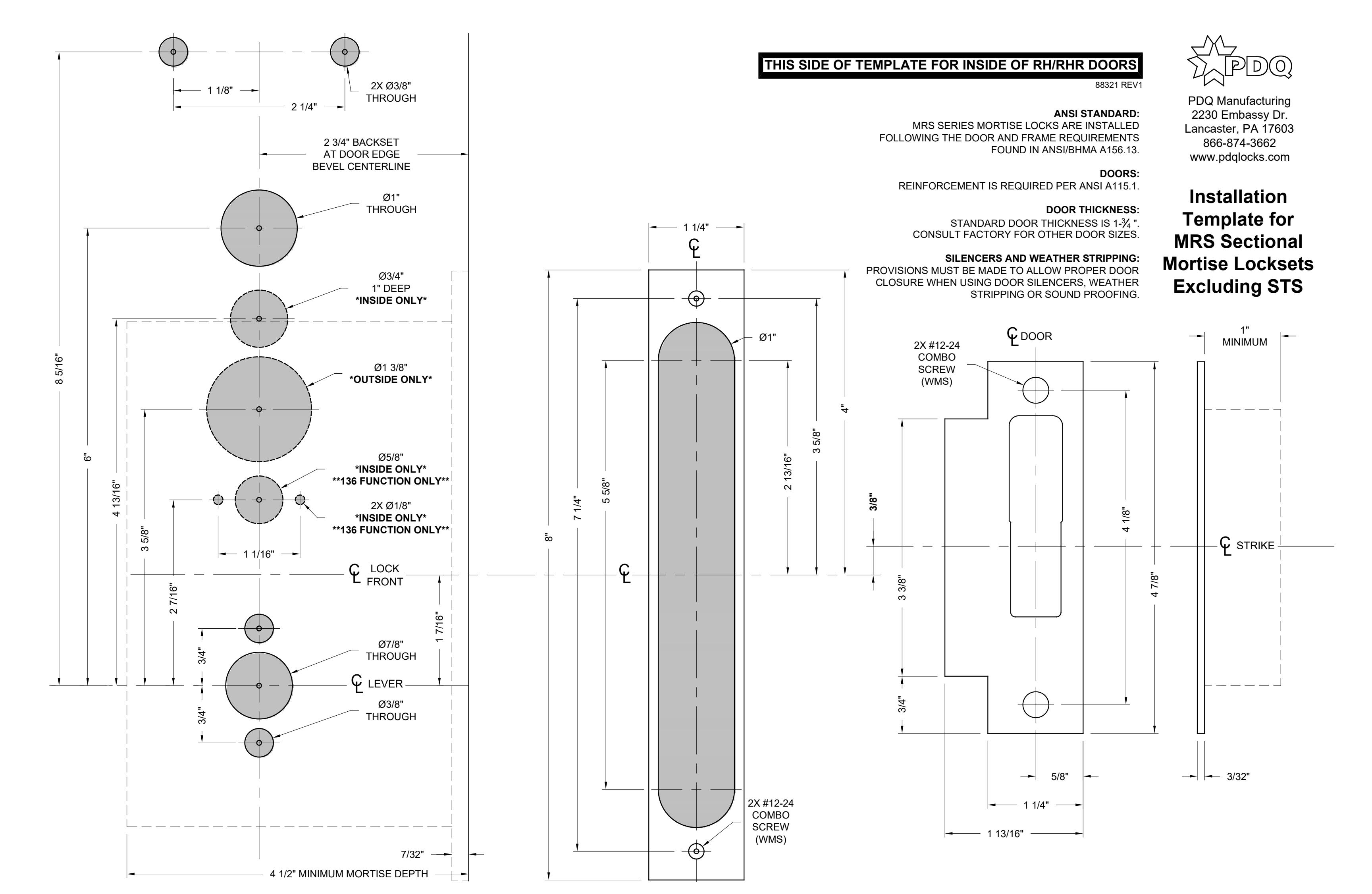

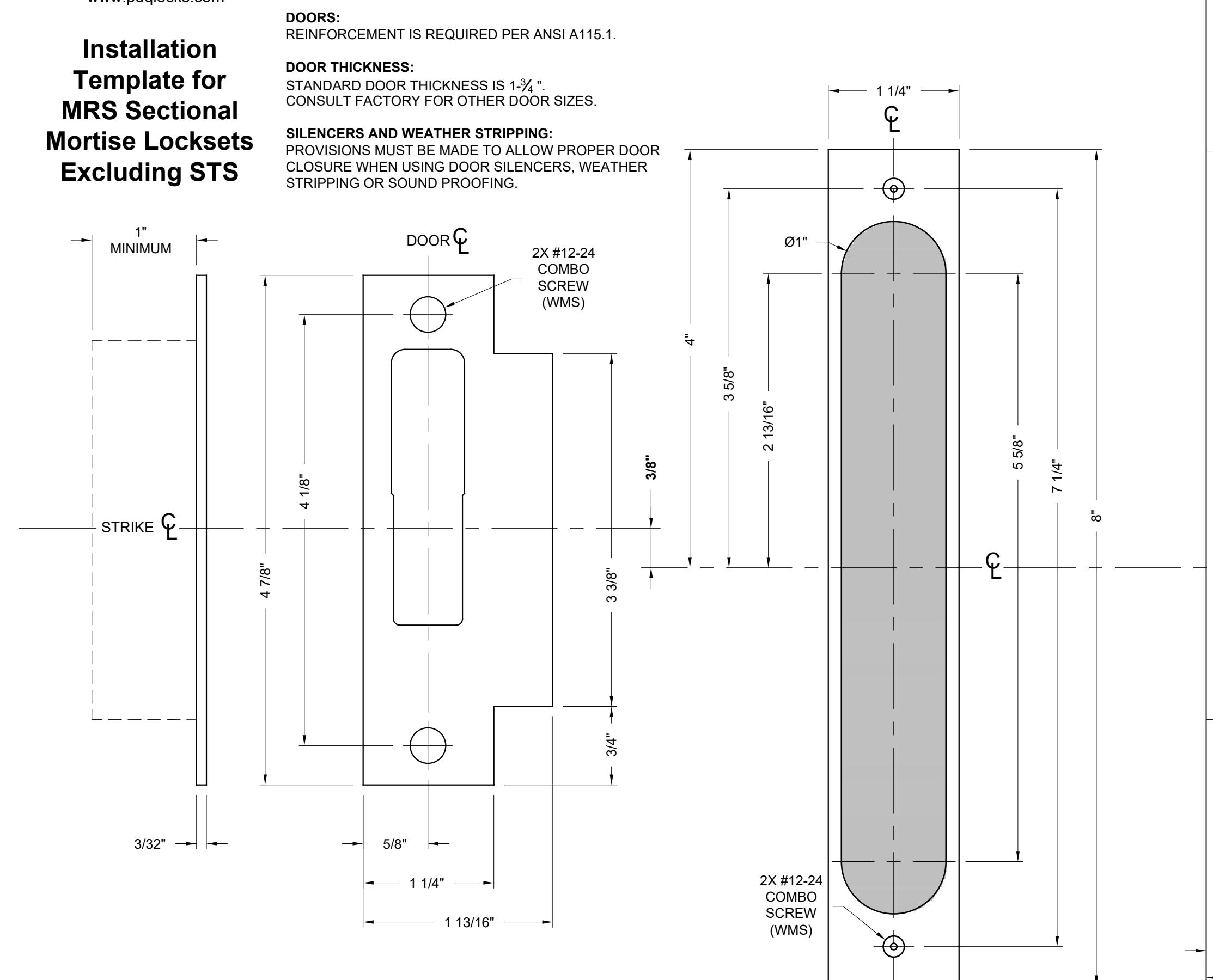

PDQ MRS-XLS Installation Template 88321 Rev1
Open the original PDF document
View PDF
PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 866-874-3662 www.pdqlocks.com

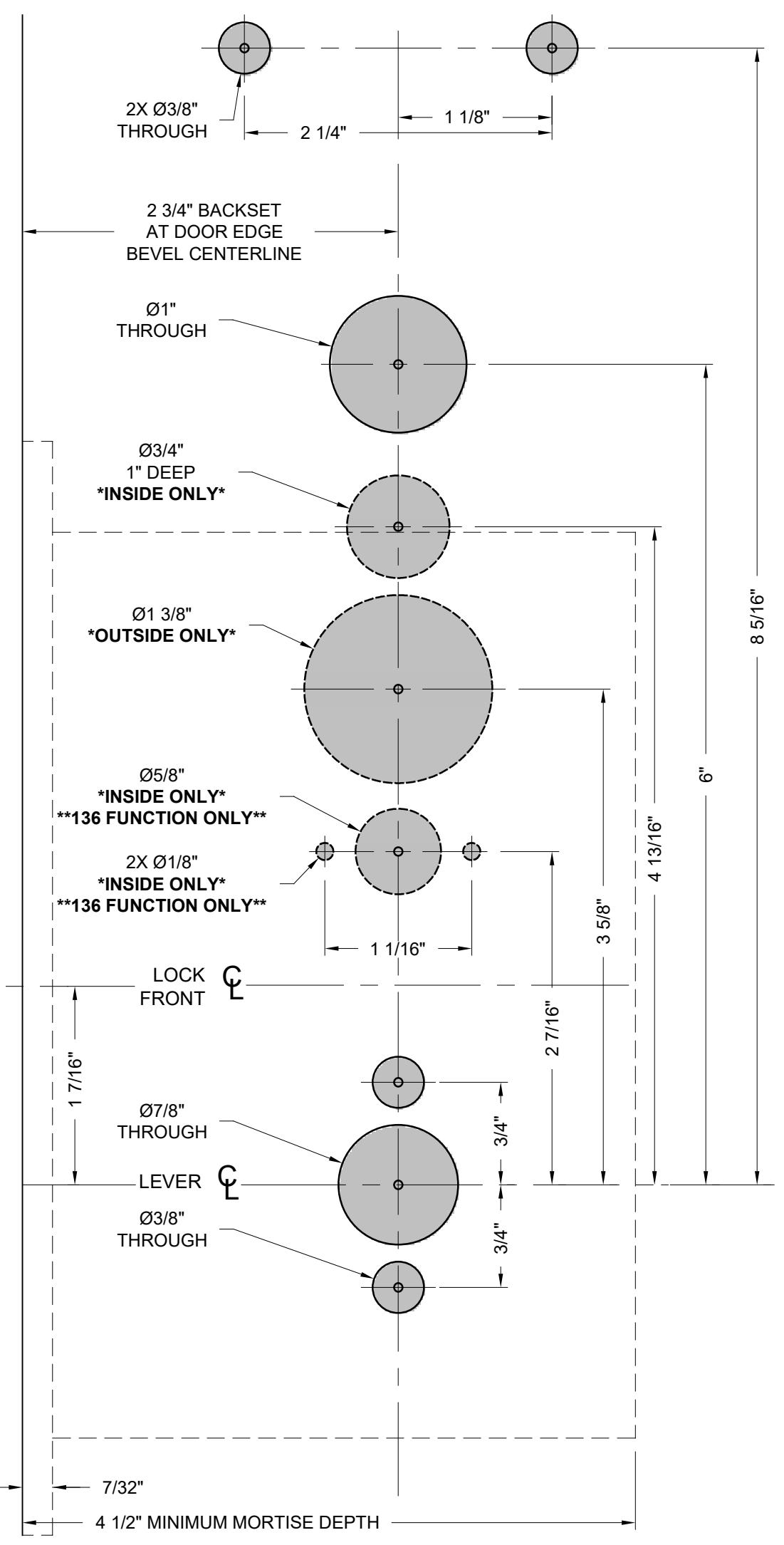

THIS SIDE OF TEMPLATE FOR INSIDE OF LH/LHR DOORS
88321 RFV
ANSI STANDARD:
MRS SERIES MORTISE LOCKS ARE INSTALLED FOLLOWING THE DOOR AND FRAME REQUIREMENTS FOUND IN ANSI/BHMA A156.13.
